Pressure Sensor
>
19mm SS316L Material Gold-plated Water Gas Fuel Piezoresistive Silicon Pressure Sensor

19mm SS316L Material Gold-plated Water Gas Fuel Piezoresistive Silicon Pressure Sensor

Product Details:
Place of Origin: CHINA
Brand Name: RUIJIA
Certification: CE
Model Number: RJ10AU
Detail Information
Place of Origin:
CHINA
Brand Name:
RUIJIA
Certification:
CE
Model Number:
RJ10AU
Pressure Range:
-100kPa...0~10kPa...100Mpa
Pressure Reference:
Gauge | Absolute | Sealed
Supply:
1.5mA, 10V
Zero Output:
±2mV
Housing Material:
316L
Diaphragm Material:
316L
Highlight:

High Light

Highlight:

19mm Water Gas Fuel Pressure Sensor

,

Piezoresistive Silicon Pressure Sensor

Trading Information
Minimum Order Quantity:
1
Price:
USD38.5/piece
Packaging Details:
Standard export packaging
Delivery Time:
Within 2Weeks
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
2000 Piece/Pieces per Month
Product Description

19mm SS316L Material Gold-plated Water Gas Fuel Piezoresistive Silicon Pressure Sensor

Product overview



RJ10AU piezoresistive silicon pressure sensor is the core component of pressure sensor and pressure transmitter suitable for measuring hydrogen environment, can be easily amplified and assembled into a transmitter with standard signal output. It is protected from hydrogen penetration by diaphragm gilding. Our company can also undertake special customization according to the needs of users, such as all-welded structure, wide temperature compensation, high reliable pressure sensors, especially for defense weapons equipment.



Features

Wide temperature compensation

Φ19mm standard OEM

All 316L material

Prevent hydrogen permeability

High performance, all solid, high reliability

18 months warranty period



Applications

  • Process control systems
  • Hydraulic systems and valves
  • Hydrogen measurement
  • Ships and navigation
  • Aircraft and avionics system
  • Hydrogen vehicle





Parameters



Electrical performance parameters
  Pressure range -100kPa~0~10kPa…100MPa
  Pressure reference Gauge pressure | Absolute pressure | Sealed gauge pressure
  Excitation

1.5mA recommended for constant current

10V recommended for constant voltage


  Input impedance

Constant current: 2kΩ~5kΩ

Constant voltage: 3kΩ~18kΩ


  Electrical connection Gold-plated KOVAR pin or silicon soft wire
  Compensation temp.

Constant current: ≤70kPa 0℃~60; other ranges -10℃~70

Constant voltage: -20℃~85


  Operating temp. -40℃~125
  Storage temp. -40℃~125
  Insulation resistance ≥200MΩ/250VDC
  Response time ≤1ms (up to 90%FS)
  Measured medium All the liquids and gases compatible with 316L.
  Mechanical vibration 20g (20~5000HZ)
  Shock 100g (10ms)
  Service life 10×106 (cycles)
Structural performance parameters
  Diaphragm material 316L
  Housing material 316L
  Oil filling Silicon oil
  Sealing ring NBR or fluorine rubber

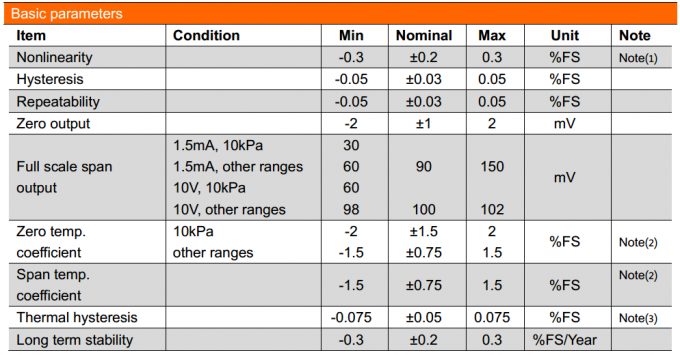

19mm SS316L Material Gold-plated Water Gas Fuel Piezoresistive Silicon Pressure Sensor 0

Note:

(1) Calculate according to BFSL least square method.

(2) In the compensation temperature range, refer to 30 for 0 ~ 60 and -10 ~ 70 , and refer to 32.5 for-20 ~ 85 .

(3) After passing high and low temperature, return to the reference temperature.

Drawings

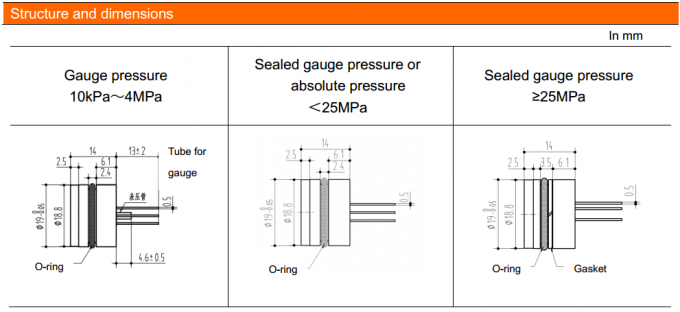

19mm SS316L Material Gold-plated Water Gas Fuel Piezoresistive Silicon Pressure Sensor 1

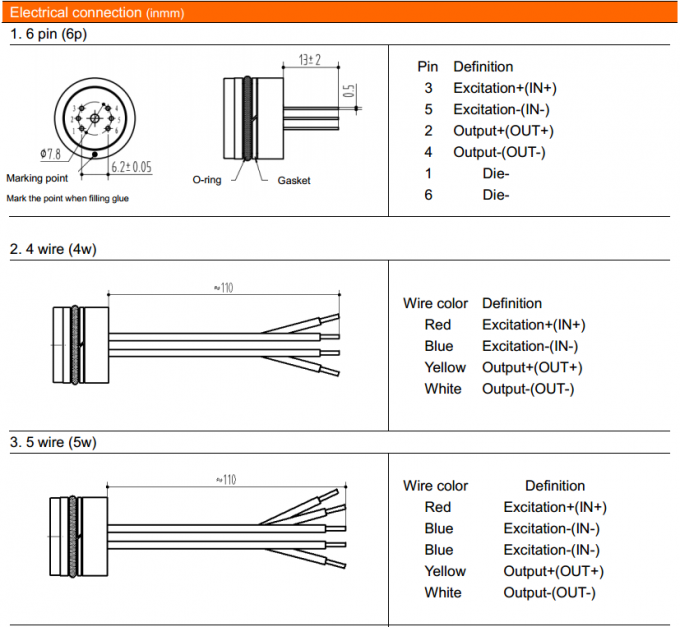

19mm SS316L Material Gold-plated Water Gas Fuel Piezoresistive Silicon Pressure Sensor 2



Buying Guides

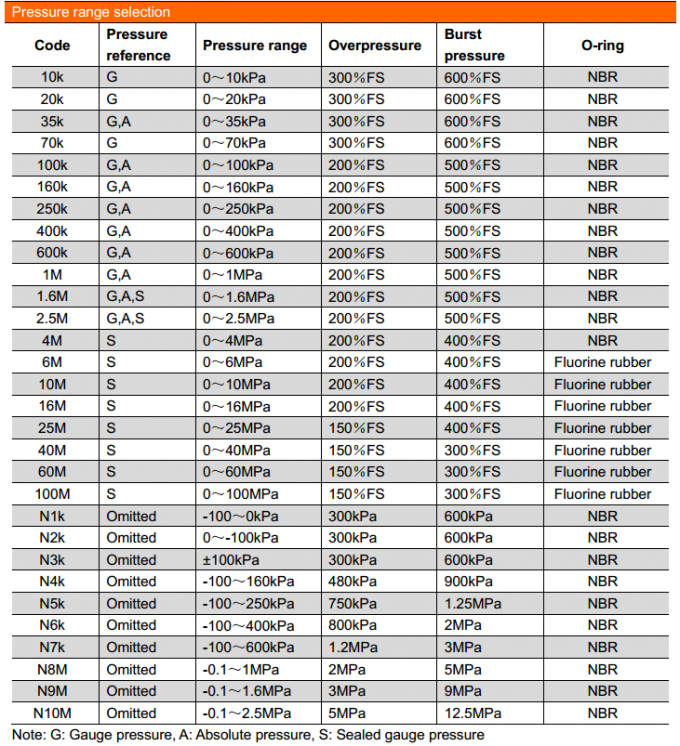

19mm SS316L Material Gold-plated Water Gas Fuel Piezoresistive Silicon Pressure Sensor 3
