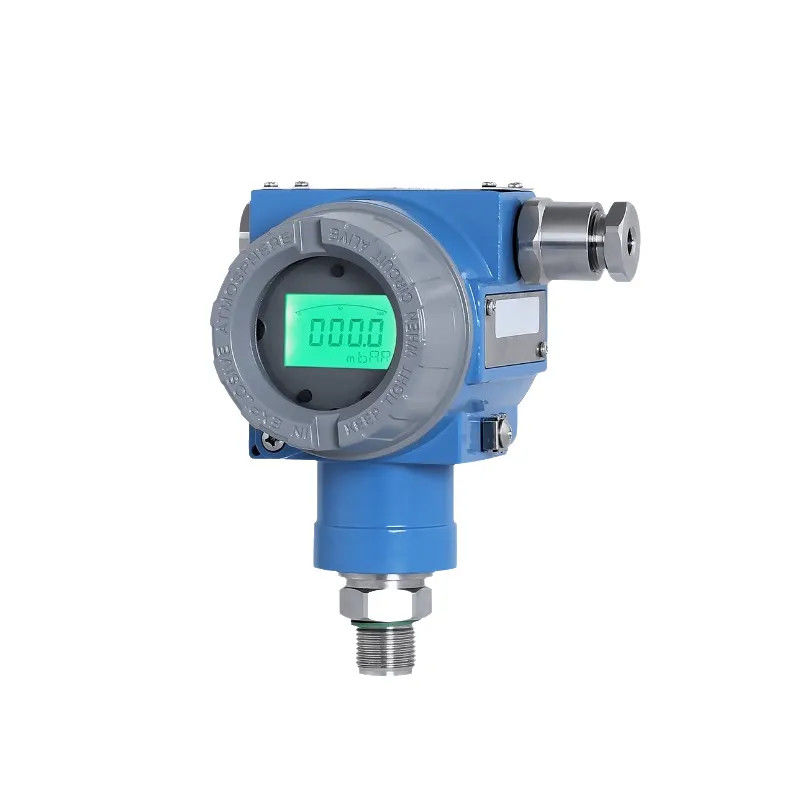

Sophisticated Technology Absolute Transducer RJ400 Digital Display Pressure Transmitter

Name: Sophisticated Technology Absolute Transducer RJ400 Digital Display Pressure Transmitter
Brand: Xian Ruijia Measurement Instruments Co., Ltd.
SKU: RJ400
Price: 64.60 USD
Availability: InStock

Product Details:

Place of Origin:	CHINA
Brand Name:	RUIJIA
Certification:	CE
Model Number:	RJ400

Detail Information

Place of Origin:

CHINA

Brand Name:

RUIJIA

Certification:

Model Number:

RJ400

Response Time:

-30℃~85℃

Ambient Temperature:

-20℃~85℃

Medium Temperature:

≤50ms

Accuracy Class:

Grade 0.5, Grade 0.2

Pressure Range:

1~1000Bar (option)

Protection Level:

IP 65

Product Weight:

1150g

Power:

DC 24V (12V~32V)

Overload Pressure:

2 Times Measuring Range

Highlight:

High Light

Highlight:

RJ400 pressure transmitter

absolute transducer pressure transmitter

Sophisticated Technology pressure transmitter

Trading Information

Minimum Order Quantity:

Price:

USD10.6-120/piece

Packaging Details:

Standard export packaging

Delivery Time:

Within 2Weeks

Payment Terms:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability:

2000 Piece/Pieces per Month

Product Description

Sophisticated Technology absolute transducer RJ400 digital display pressure transmitter

Products Description

<FEATURES>

• Protective shell design, which can be equipped with on-site display module. • Convenient installation and stainless steel housing. • This product is composed of important components such as circuit board and sensor.

Specification

Technical Performance
Power	DC 24V (12V～32V)
Response time	-30℃～85℃
Ambient temperature	-20℃～85℃
Medium temperature	≤50ms
Accuracy class	Grade 0.5, Grade 0.2
Output form	4mA～20mA (optional display),0~10mA/ 0~5V/RS232/RS485/HART protocol
Measuring range	Diffused silicon sensor (minimum measuring range 5kPa)
Measuring range	Grade 0.5 within measuring range(0-100)MPa/ Grade 0.2 within measuring range (0 - 5)MPa
Measuring range	Ceramic sensor (minimum measuring range 160kPa)/ Grade 0.5 within measuring range 0MPa - 20MPa
Load capacity (DC 24V)	Current type≤500Ω(without display)/ Current type ≤250Ω (with display). Voltage type ≥3kΩ
Repeatability	±0.1％F·S
Long-term stability in years	±0.1％F·S
Non-linearity	±0.2％F·S
Thermal zero-point temperature drift per degree	±0.02％F·S
Overload pressure	2 times measuring range
Electrical connection	Wiring terminal
Material of external parts	Ordinary stainless steel / 316L stainless steel
Shell material	Aluminum alloy housing
Protection level	IP 65
Product weight	1150g
Measuring medium	Oil, water, gas and other substances compatible with 316 stainless steel

Product Description

FAQ

1. What detailed information do I need to provide if I want to place an order?

We need to know the following information: Capacity, Usage and other related parameters you need.

2. Do you have any discount?

Yes, if you buy large QTY, please send us a email, we will give you a big discount.

3. What terms of payment are available?

We accept T/T, L/C, Trade assurance, Secure payment, Western Union, Paypal, Money Gram, etc.

4.When will you arrange the production?

We will arrange the production immediately after receiving your payment.

5. How do you ensure good product quality?

We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients.
