Wholesale Low Pressure Sensor 420ma Medical Pressure Sensor Gas Pressure Sensor

Name: Wholesale Low Pressure Sensor 420ma Medical Pressure Sensor Gas Pressure Sensor
Brand: Xian Ruijia Measurement Instruments Co., Ltd.
SKU: RJ400
Price: 64.60 USD
Availability: InStock

Product Details:

Place of Origin:	CHINA
Brand Name:	RUIJIA
Certification:	CE
Model Number:	RJ400

Detail Information

Place of Origin:

CHINA

Brand Name:

RUIJIA

Certification:

Model Number:

RJ400

Mounting Type:

Standard Installation

Description:

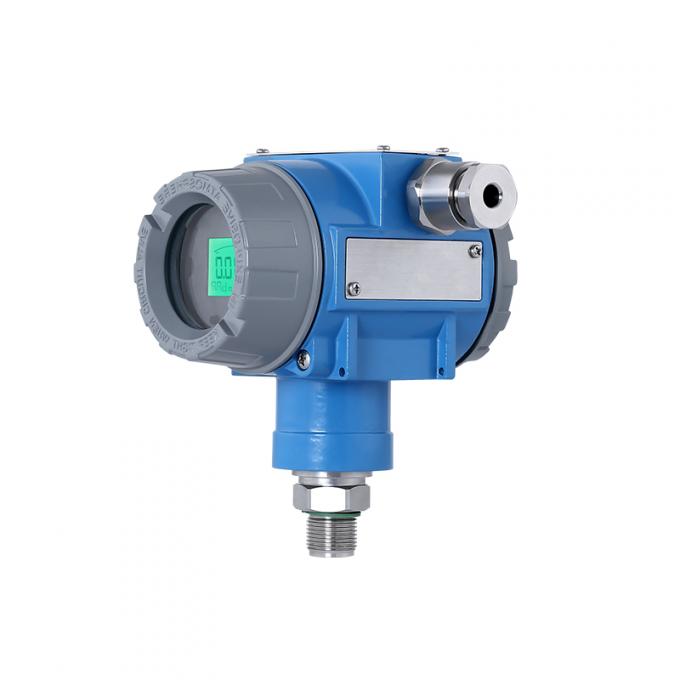

Digital Display Pressure Transmitter

Output:

4~20mA

Response Time:

-30℃~85℃

Ambient Temperature:

-20℃~85℃

Medium Temperature:

≤50ms

Highlight:

High Light

Highlight:

medical pressure sensor

low pressure sensor

gas pressure sensor

Trading Information

Minimum Order Quantity:

Price:

USD10.6-120/piece

Packaging Details:

Standard export packaging

Delivery Time:

Within 2Weeks

Payment Terms:

L/C, D/A, D/P, T/T, Western Union,

Supply Ability:

2000 Piece/Pieces per Month

Product Description

wholesale low pressure sensor 420ma medical pressure sensor gas pressure sensor

Products Description

<FEATURES>

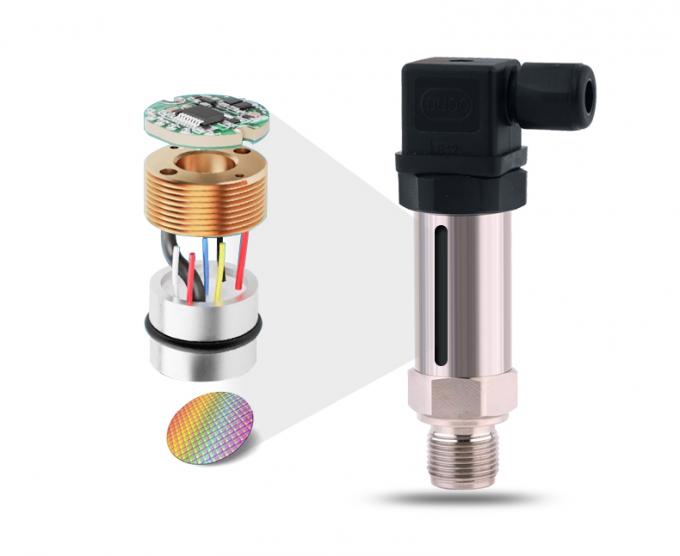

• Protective shell design, which can be equipped with on-site display module. • Convenient installation and stainless steel housing. • This product is composed of important components such as circuit board and sensor.

RUIJIA offer technically as well as economically attractive solutions for a wide range of pressure measuring tasks. In high-volume projects as well as in smaller quantities, you always benefit from the highest quality products and competitive price.RUIJIAsensor approved CEinternational certificates. RUIJIA instruments are reliable and safe applied to the fields of petroleum, water treatment, Chemical industry, metallurgy, power station and hydrology etc.

Wholesale Low Pressure Sensor 420ma Medical Pressure Sensor Gas Pressure Sensor

Specification

Technical Performance
Power	DC 24V (12V～32V)
Response time	-40~145℃,-40~180℃,-40~250℃,-40~300℃
Ambient temperature	-20℃～85℃
Medium temperature	≤50ms
Accuracy class	Grade 0.5, Grade 0.2
Output	4mA～20mA (optional display),0~10mA/ 0~5V/RS232/RS485/HART protocol
Measuring range	-1-0~1 bar…600 bar optional
Measuring range	Diffused silicon sensor (minimum measuring range 5kPa)
Measuring range	Grade 0.5 within measuring range(0-100)MPa/ Grade 0.2 within measuring range (0 - 5)MPa
Measuring range	Ceramic sensor (minimum measuring range 160kPa)/ Grade 0.5 within measuring range 0MPa - 20MPa
Load capacity (DC 24V)	Current type≤500Ω(without display)/ Current type ≤250Ω (with display). Voltage type ≥3kΩ
Repeatability	±0.1％F·S
Long-term stability in years	±0.1％F·S
Non-linearity	±0.2％F·S
Thermal zero-point temperature drift per degree	±0.02％F·S
Overload pressure	2 times measuring range
Electrical connection	Wiring terminal
Material of external parts	Ordinary stainless steel / 316L stainless steel
Shell material	Aluminum alloy housing
Protection level	IP 65
Product weight	1150g
Measuring medium	Oil, water, gas and other substances compatible with 316 stainless steel

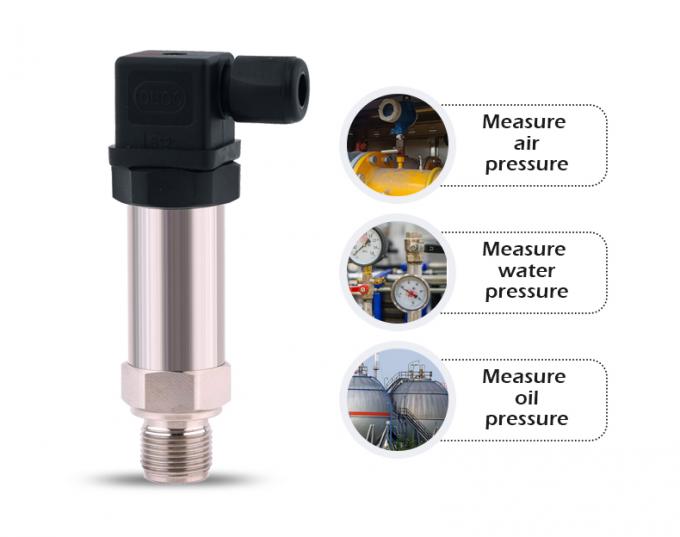

What can it measure?

Measure air pressure. Measure water pressure.Measure oil pressure. The medium temperature ranges from -35 ℃ to 85 ℃. Clean and non-corrosive liquids and gases.

HIGH-PRECISION

FTS high-stability diffused silicon crystals, with an accuracy of ±0.1%FS and ±0.25%FS.

Precise, stable, more reliable and with a long service life

Automatic temperature compensation

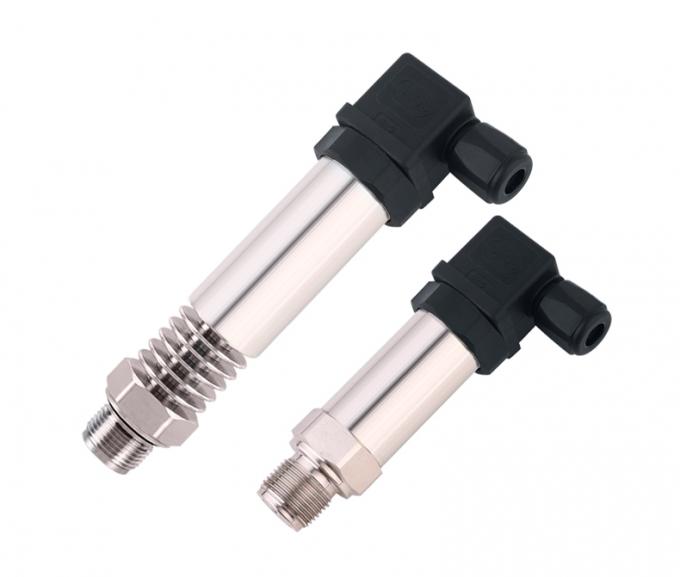

Multiple layers of heat sinks enable efficient heat dissipation Equipped with 3 to 10 pieces of 304 stainless steel heat sinks, the efficient heat dissipation ensures precision.

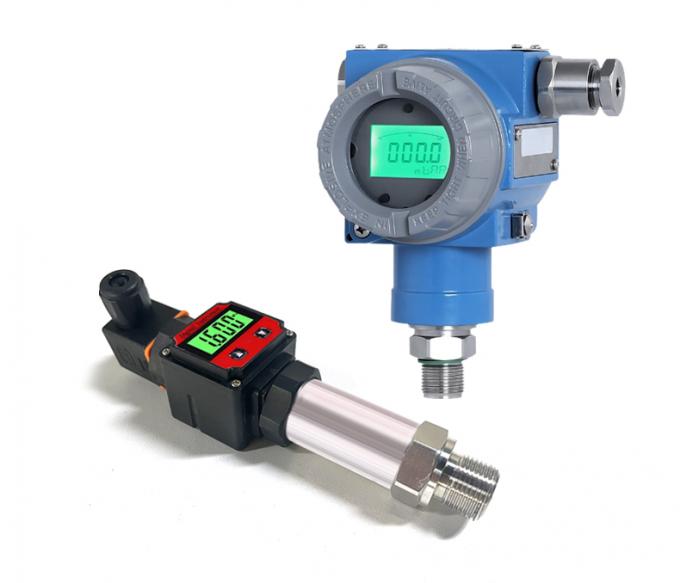

LCD display

The readings are intuitive and clear, with high reliability and are not affected by external power supply interference.

Product Description

FAQ

1. What detailed information do I need to provide if I want to place an order?

We need to know the following information: Capacity, Usage and other related parameters you need.

2. Do you have any discount?

Yes, if you buy large QTY, please send us a email, we will give you a big discount.

3. What terms of payment are available?

We accept T/T, L/C, Trade assurance, Secure payment, Western Union, Paypal, , etc.

4.When will you arrange the production?

We will arrange the production immediately after receiving your payment.

5. How do you ensure good product quality?

We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients.
