| Place of Origin: | China |
| Brand Name: | Ruijia |
| Model Number: | RJ9810 |

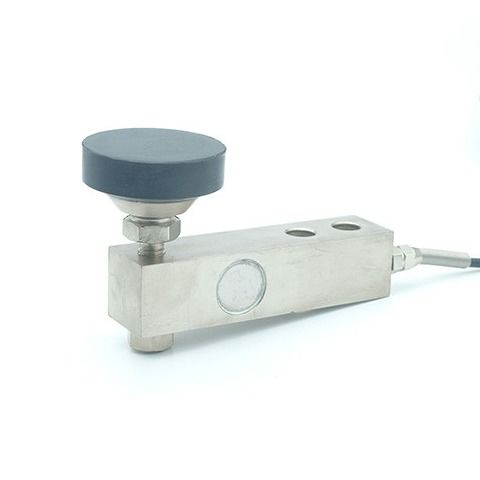

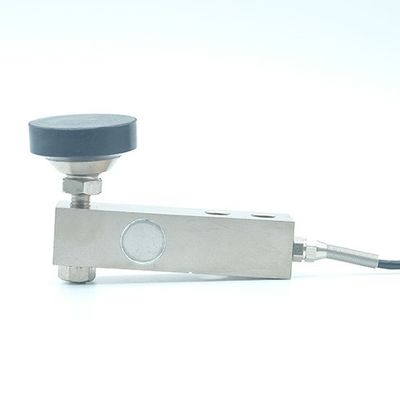

Shear beam load cell is a type of mechanical sensing device used to measure weight or force. It works by converting the force or weight applied on it into electrical signals. It is made of high-grade alloy steel and has an accuracy of ±0.02%FS, creep (15min) of ±0.02%FS, output resistance of 350±5Ω and output of 2.0±0.005 MV/V or 3.0±0.005 MV/V. The shear beam load cell is designed to be robust and reliable with its superior performance. It can be used in various industries including automotive, medical, food processing, and manufacturing. The shear beam load cell has the ability to measure a wide range of force, from low to high. Its lightweight design also makes it easier to install and use. Additionally, the shear beam load cell is easy to maintain, making it a cost-effective solution for many applications.
| Capacity | t | 0.1/0.2/0.25/0.5/1/2/5 |
| Sensitivity | mV/V | 2.0±0.005 3.0±0.005 |
| Accuracy | %FS |
≤±0.02 |
| Creep(15min) | %FS | ≤±0.02 |
| Input Resistance | Ω | 375±10 |
| Output Resistance | Ω | 350±5 |
| Insulation Resistance | M Ω | ≥5000(100VDC) |
| Zero Balance | %FS | ≤±1 |
| Temperature Effects on Span | %FS/10℃ | ≤0.02 |
| Temperature Effect on Zero | %FS/10℃ | ≤0.02 |
| Rated Temperature Range | ℃ | -10～+60 |
| Operating Temperature Range | ℃ | -35～+80 |
| Proposed Excitation Voltage | V | 6～12 |
| Allowed Excitation Voltage | V | 18 |
| Safe Overload | %FS | 150 |
| Ultimate Overload | %FS | 300 |
| Protection | IP65 | |
| Cable specification | mm | Ф5 |
| Cable length | m | 3 |
| Material | Alloy Steel |
