Weighing Scale Sensor
>

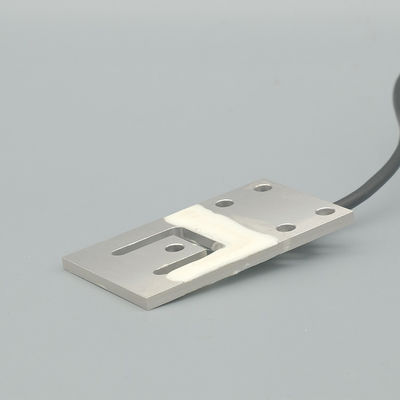

Medical High Accuracy Weighing Scale Sensor With 0.6M Cable Length

Medical High Accuracy Weighing Scale Sensor With 0.6M Cable Length

Product Details:
Place of Origin: China
Brand Name: Ruijia
Model Number: RJ-6502
Detail Information
Place of Origin:
China
Brand Name:
Ruijia
Model Number:
RJ-6502
Operating Temperature Range:
-20~+60 ℃
Safe Overload:
120 %FS
Material:
Aluminum Alloy
Creep(5min):
0.02 %FS
Hysteresis:
0.02 %FS
Insulation Resistance:
≥5000 MΩ(100VDC)
Cable Length:
0.6 Mm
Output Resistance:
1000±10 Ω
High Light:

High Light

High Light:

IP65 Load Cell Sensor

,

Medical Weighing Scale Sensor

,

0.6m Cable Weighing Scale Sensor

Product Description

Product Description:

Weighing Scale Sensor is designed for medical scales with a low profile load cell. It provides high accuracy with its sensitivity of 1.0±0.2mV/V or 1.5±0.2mV/V and non-linearity of 0.05%FS. This load cell ensures reliable performance in a wide range of temperature, from -20℃ to +60℃. In addition, it is equipped with a high overload protection of 120%FS and IP65 protection for better safety. This medical scale load cell is an ideal choice for medical scales due to its low profile design and excellent performance.



Features:

  • Product Name: Weighing Scale Sensor
  • Output Resistance: 1000±10 Ω
  • Non-linearity: 0.05 %FS
  • Input Resistance: 1090±30 Ω
  • Temperature Effect on Zero: 0.05 %FS/10℃
  • Zero Balance: ±2 %FS
  • Low Profile Load Cell: Yes
  • Thin Load Cell: Yes
  • Planar Beam Load Cell: Yes


Dimensions:

Medical High Accuracy Weighing Scale Sensor With 0.6M Cable Length 0



Technical Parameters:





Capacity Kg 7.5 15 30 75 150 300
Sensitivity mV/V

1.0±0.2

1.5±0.2
Creep(5min) %FS

0.02

Linearity Error %FS 0.05
Hysteresis Error %FS 0.02
Repeatability Error %FS 0.02
Input Resistance Ω 1090±30
Output Resistance Ω 1000±10
Insulation Resistance M Ω ≥5000(100VDC)
Zero Balance %FS ±2
Temperature Effects on Span %FS/10℃ 0.05
Temperature Effect on Zero %FS/10℃ 0.05
Rated Temperature Range -10~+40
Operating Temperature Range -20~+60
Proposed Excitation Voltage V 6~12
Allowed Excitation Voltage V 3~15
Safe Overload %FS 120
Ultimate Overload %FS 150
Protection   IP65
Cable specification mm Φ3.8UL & Φ1Electronic wiring
Cable length m 0.6
Material Aluminum Alloy













































































Customization:

Weighing Scale Sensor - Customized Service

Ruijia RJ-6502 Weight Scale Sensor is a low profile load cell, planar beam load cell, and planar beam load cell, made of aluminum alloy material with great strength. Its Zero Balance is ±2 %FS, Non-linearity is 0.05 %FS, Output Resistance is 1000±10 Ω, Hysteresis is 0.02 %FS, and its Place of Origin is China.
