| Place of Origin: | China |
| Brand Name: | ruijia |
| Model Number: | HM-8 |

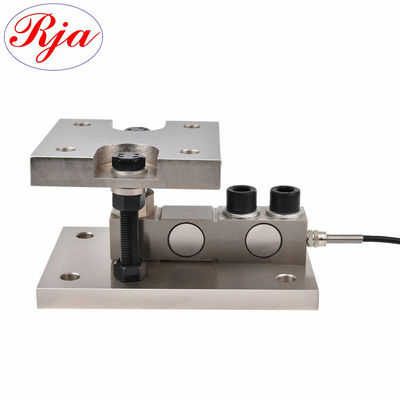

Weighing Scale Sensor is the heart of electronic weighing apparatus. It is used in tank scales, hopper scales, hanging scales, vehicle scales, and other scales or control systems that require fast and accurate force measuring.
Features
1. Easy installation, user friendly
2. Could adjust gravity center automatically to maintain high accuracy
3. Built-in jacking facility ensure good stability and easy replacement of load cell
Dimension
| Rated load | Size(mm) | ||||||||||||||
| A | A1 | B | B1 | C | C1 | L | L1 | L2 | H | H1 | H2 | W | M | φ | |
| 0.05~0.1t | 110 | 95 | 100 | 80 | 100 | 80 | 180 | 15 | 160 | 85 | 20 | 20 | 45 | 8 | 10 |
| 0.2~1t | 150 | 125 | 100 | 100 | 125 | 100 | 210 | 20 | 180 | 110 | 25 | 25 | 70 | 10 | 12 |
| 1.5~5t | 175 | 135 | 150 | 115 | 150 | 115 | 260 | 25 | 220 | 145 | 35 | 30 | 72.5 | 16 | 18 |
| 7~10t | 185 | 135 | 155 | 115 | 155 | 115 | 300 | 25 | 250 | 157 | 40 | 45 | 67.5 | 20 | 22 |
| 15~20t | 220 | 180 | 210 | 170 | 210 | 170 | 300 | 30 | 350 | 220 | 55 | 55 | 90 | 24 | 26 |
Specifications
| Item | Specification |
| Range | 0.05-20 (t) |
| Accuracy | C2 or C3 |
| Ultimate overload | 150% |
| Comprehensive error | 0.03 or 0.02%F.S |
| Creep | 0.02%F.S/30min |
| Zero balance | ±1%F.S |
| Input resistance | 380±10Ω |
| Output resistance | 350±3Ω |
| Insulation resistance | >5000MΩ |
| Excitation voltage | 10VDC |
| Use Temp .rang | -20~+65℃ |
| Temp. effect on zero | 0.02%F.S/10℃ |
| Temp. effect on span | 0.02%F.S/10℃ |
| Material | Alloy steel or stainless steel |
| Which type of weigh modules is right for you? |
We have different types of weigh modules from 0.5t-50t, there are new explosion-proof products for you to choose, you can choose to contact us for your recommendation, or you can enter our group to choose, I wish Happy shopping
Combined Product Act
Packing
Standard export package: each unit has individual box and all boxes are packed in
standard packages.
Shipping
Products are shipped from china. We will sent out within 15 working days after the
payment. We usually sendthe parcel by DHL, EMS and TNT etc. The tracking number will be sent to you after delivery. It usually takes 3--5 working days to reach your side which depend on the country delivery to.
| 1. What essential information is needed for product selection? |
|
Weight/ load range (in g, kg, ton or lb), application, material (stainless steel, alloy aluminum, etc.) and other requirement of customers.
|
| 2. How will you ensure quality of your products? |
|
A. All products had been treated through strict process according to ISO9001 standard and checked by IQC and OQC department before shipping.
B. One year warranty and life time free consult to any needs related with our product.
|
| 3. What terms of payment is acceptable? |
|
T/T, L/C, trade assurance of Alibaba, Secure payment, West Union, Paypal, Money Gram, etc.
|
| 4. When production could be arranged? |
| As soon as the payment was received. |
