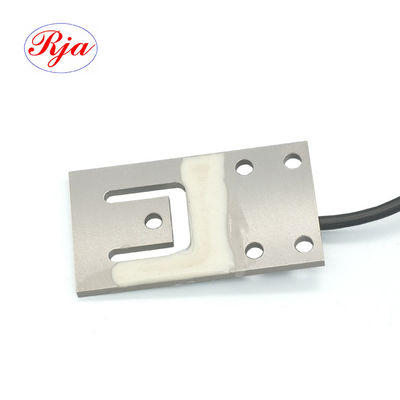

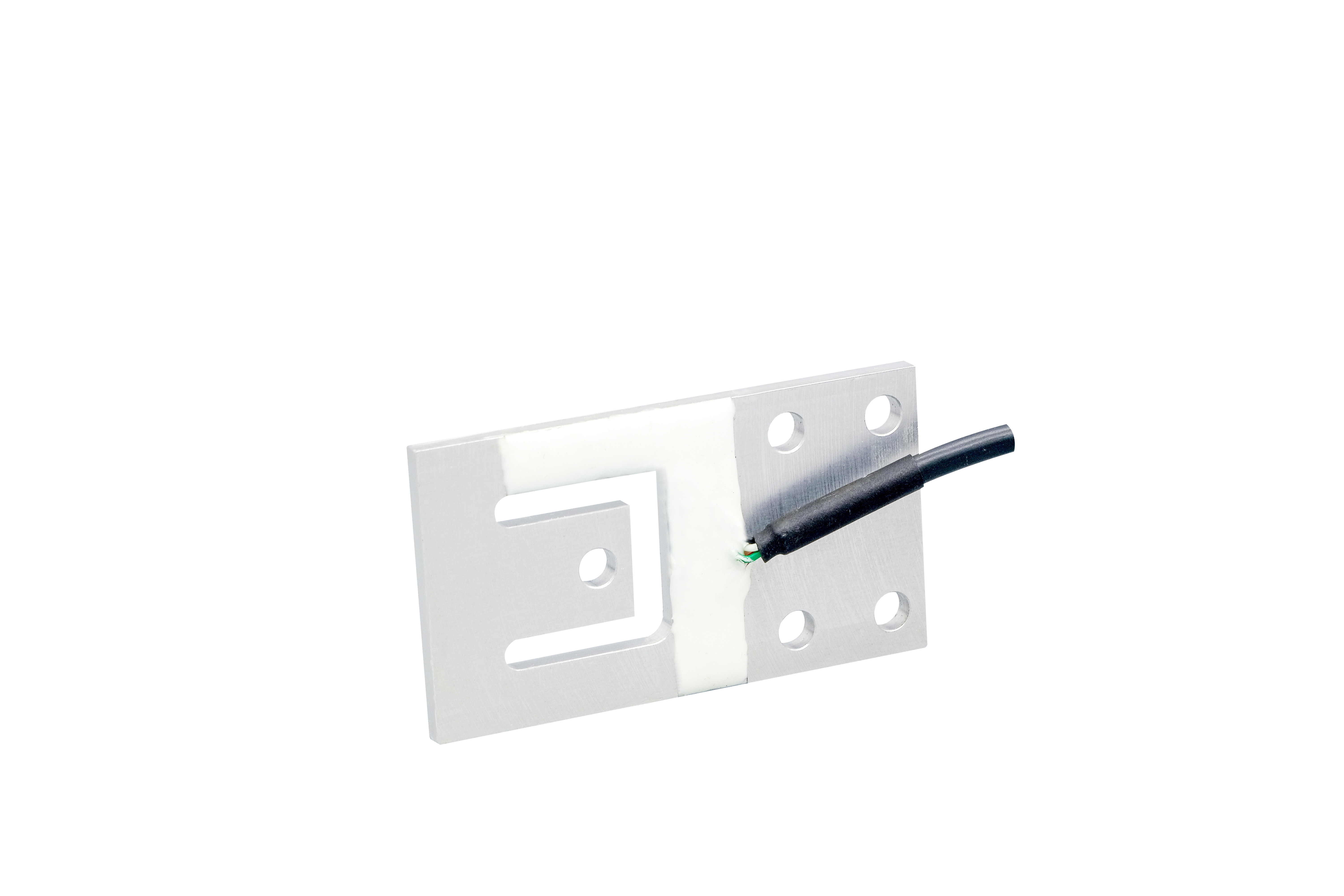

Aluminum Alloy Medical Weighing Scale Load Cell 6 - 12V

Name: Aluminum Alloy Medical Weighing Scale Load Cell 6 - 12V
Brand: Xian Ruijia Measurement Instruments Co., Ltd.
SKU: RJ-6502
Price: 4 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	Ruijia
Model Number:	RJ-6502

Detail Information

Place of Origin:

China

Brand Name:

Ruijia

Model Number:

RJ-6502

Repeatability:

0.02 %FS

Safe Overload:

120 %FS

Rated Temperature Range:

10～+40 ℃

Temperature Effects On Span:

0.05 %FS/10℃

Operating Temperature Range:

-20～+60 ℃

Sensitivity:

1.0±0.2mV/V 1.5±0.2mV/V

Proposed Excitation Voltage:

6～12 V

Creep（5min):

0.02 %FS

Highlight:

High Light

Highlight:

IP65 Weighing Scale Sensor

12V Weighing Scale Load Cell

Aluminum Alloy Load Cell Scale

Trading Information

Price:

USD 4/piece

Payment Terms:

T/T, L/C

Product Description

Product Description:

The Weighing Scale Sensor is designed to provide reliable and accurate measurements for various medical scales. Boasting an ultimate overload of 150% FS, this sensor has an insulation resistance of up to 5000MΩ (100VDC) and an operating temperature range of -20 to +60℃. Additionally, this sensor has an impressive repeatability of 0.02% FS and a hysteresis of 0.02% FS. This makes the Weighing Scale Sensor ideal for medical scale load cell applications, where accuracy and reliability are of utmost importance.

Features:

Product Name: Weighing Scale Sensor
Non-linearity: 0.05 %FS
Temperature Effect on Zero: 0.05 %FS/10℃
Creep(5min): 0.02 %FS
Protection: IP65
Proposed Excitation Voltage: 6～12 V
Thin Load Cell: Yes

Dimensions:

Aluminum Alloy Medical Weighing Scale Load Cell 6 - 12V 0

Technical Parameters:

Parameter	Value
Zero Balance	±2 %FS
Rated Temperature Range	10～+40 ℃
Capacity	7.5kg 15kg 30kg 75kg 150kg 300kg
Hysteresis	0.02 %FS
Output Resistance	1000±10 Ω
Repeatability	0.02 %FS
Ultimate Overload	150 %FS
Temperature Effects on Span	0.05 %FS/10℃
Operating Temperature Range	-20～+60 ℃
Material	Aluminum Alloy
Load Cell Type	Planar Beam Load Cell, Medical Scale Load Cell, Weighing Scale Load Cell

Customization:

We offer a customized service for the Ruijia RJ-6502 Weighing Scale Sensor, which is made in China. This low profile load cell, planar beam load cell, and weighing scale load cell has a cable length of 0.6 Mm and a cable specification of Φ3.8 Mm UL & Φ1mm Electronic Wiring. It has a repeatability of 0.02 %FS and a hysteresis of 0.02 %FS. It can operate in a temperature range of -20～+60 ℃.

Support and Services:

Technical Support:
- 24/7 online technical support
- A dedicated team of experts to help you troubleshoot any issues
- A comprehensive library of manuals, tutorials, and FAQs
Services:
- Pre-installation hardware and software setup
- Onsite installation and maintenance services
- Ongoing maintenance and support
