| Place of Origin: | china |
| Brand Name: | ruijia |
| Model Number: | RJ-9810 |
High Accuracy shear beam Load Cell Weight Sensor Optional Internal Transmitter Available

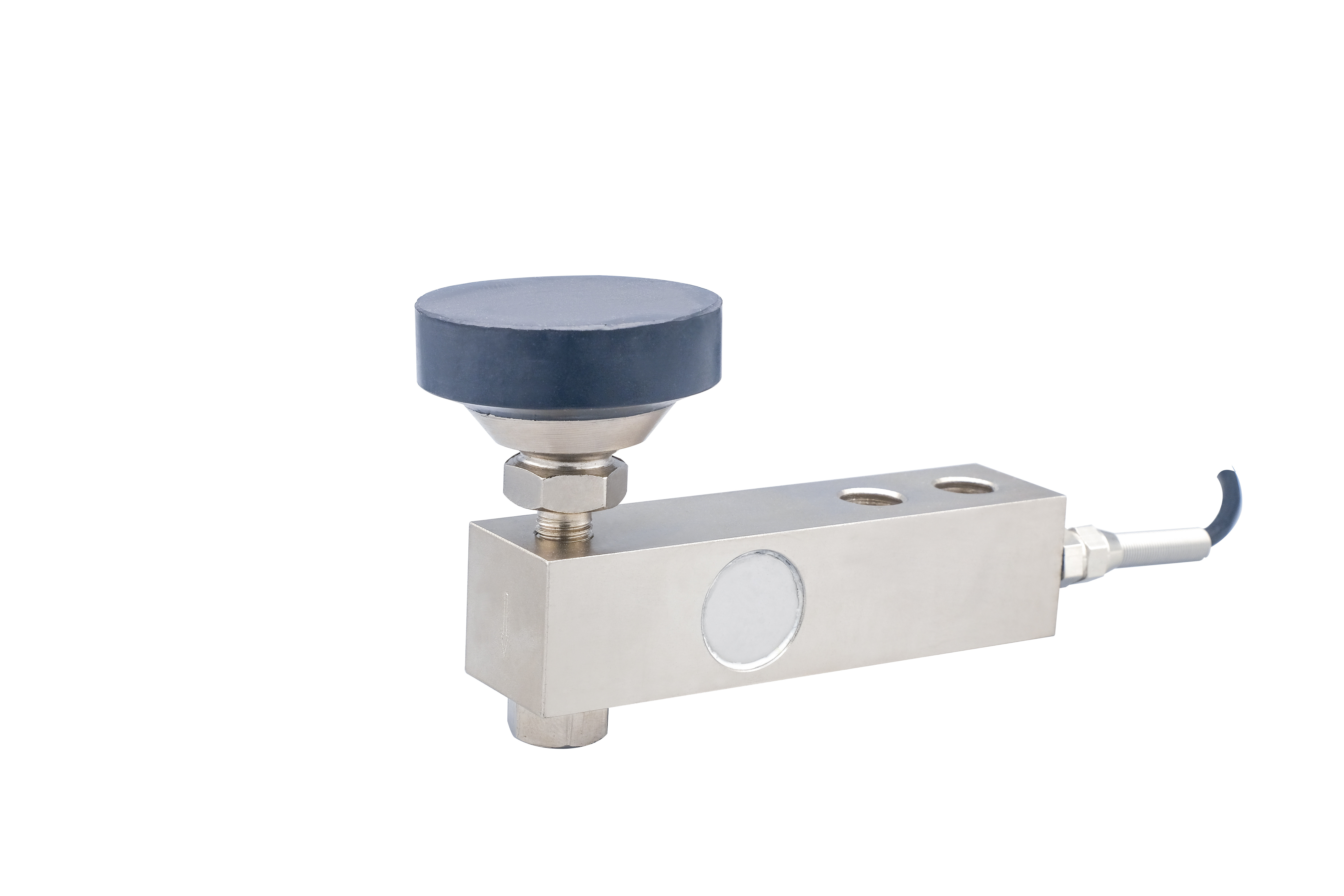

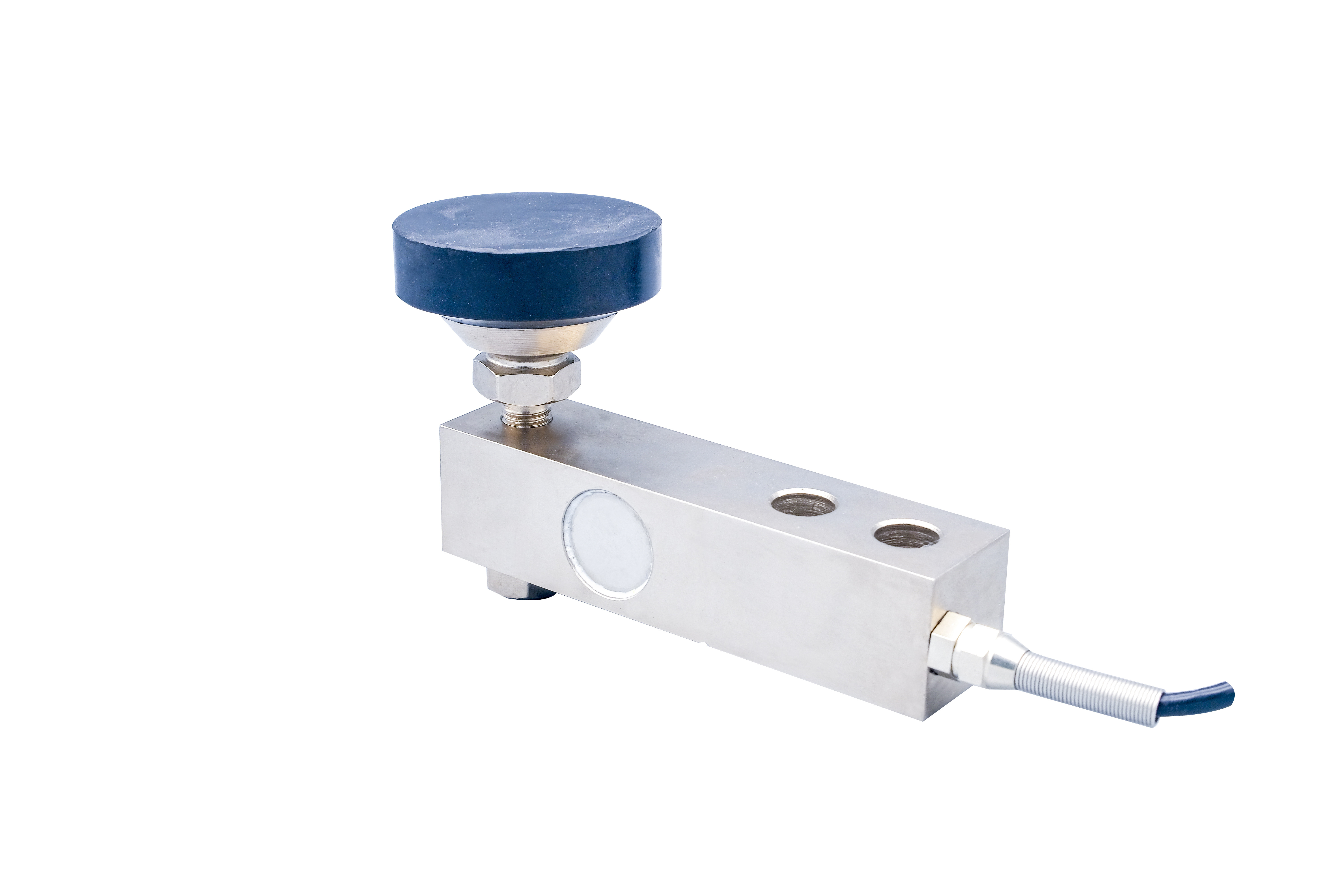

RJ-9810 is a kind of Double Ended Shear Beam Load Cell, it belongs to Compression Load Cell, it is made of alloy steel, it is fully potted with special chemical compounds to IP67(≥500kg) to protect the cell from water and moisture attack, the capacity of anti deviated load and impact is very strong.
The design of steel ball and head structure provides excellent performance, which can reset and ensure the force transferring, the typical example for side force resistance is the application motor truck scales.
F3831 load cell can be used for Truck scales, rail scales, Hopper, tank weighing and Chemical, Industries of Foods, Pharmaceuticals, which has huge important on weighing and control.
RJ-9810 is suitable for the fields of Truck scales, rail scales, Hopper, tank weighing and Chemical, Industries of Foods, Pharmaceuticals, which has huge important on weighing and control.
Rated load |
| 100 200 300 500 1000 2000 3000kg/10000kg can be customized |
Accuracy class |
| C3 |
Rated output |
| 2.0±0.004mV/V |
Comprehensive error |
| ≤±0.02%F.S |
Creep |
| 0.02%F.S/30min |
Zero balance |
| ±1.0%F.S |
Temperature effect on sensitivity |
| 0.016%F.S/℃ |
Temperature effect on zero |
| 0.002%F.S/℃ |
Input resistance |
| 365±10Ω |
Output resistance |
| 350±3Ω |
Insulation resistance |
| ≥5000MΩ(50VDC) |
Excitation voltage |
| 5~12VDC |
Compensated temp.range |
| -10~+40℃ |
Use temp.range |
| -35~+80℃ |
Safe overload |
| 150% |
Ultimate overload |
| 200% |
Load cell material |
| Alloy steel |
Defend grade |
| IP67 |
Cable |
| Φ5.7mm*2m |
