Single Point Load Cell
>

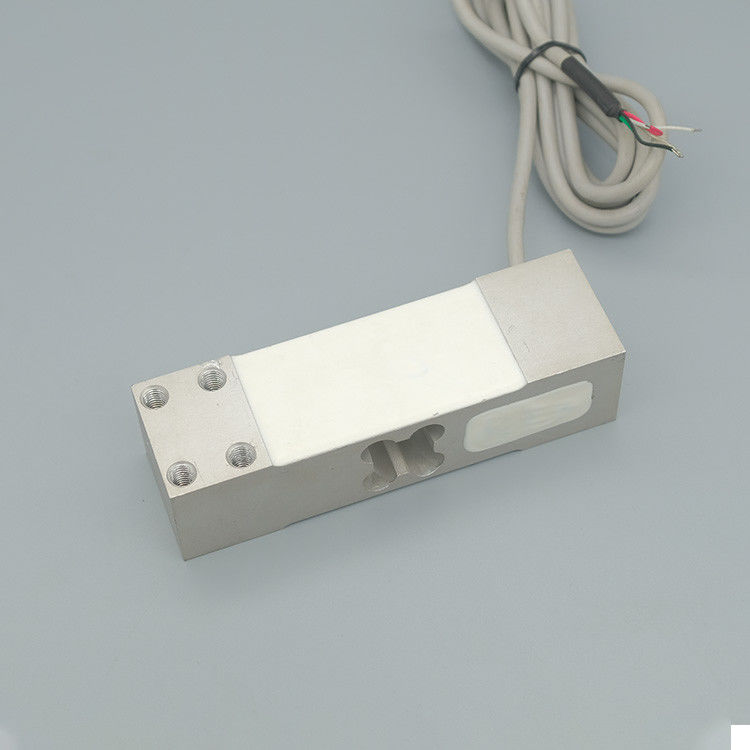

Electronic Strain Gauge Load Cell 100kg Platform Counting Scale Weighing Sensor

Electronic Strain Gauge Load Cell 100kg Platform Counting Scale Weighing Sensor

Product Details:
Place of Origin: Shannxi, China
Brand Name: Ruijia
Model Number: RJ-6550
Detail Information
Place of Origin:
Shannxi, China
Brand Name:
Ruijia
Model Number:
RJ-6550
Usage:
Weighing
Theory:
Strain Gauge Deformation
Capacity:
50/100/150/200/250/350/500 Kg
Sensitivity:
2.0±0.2 MV/V
Accuracy:
±0.02
Creep(5min):
±0.02 %FS
Input Resistance:
406±20 Ω
Output Resistance:
350±5 Ω
Temperature Effects On Span:
±0.02 %FS/10℃
Temperature Effect On Zero:
±0.02 %FS/10℃
Material:
Aluminum Alloy
High Light:

High Light

High Light:

Silicone Rubber Single Point Load Cell

,

Electronic Strain Gauge Load Cell 100kg

,

Anodized Single Point Load Cell

Trading Information
Minimum Order Quantity:
1pc
Price:
USD 8/piece
Packaging Details:
Standard export packaging
Delivery Time:
Within 2-4 Weeks
Payment Terms:
T/T, L/C
Supply Ability:
10000 Piece/Pieces per Month
Product Description

Electronic Strain Gauge Load Cell 100kg Platform Counting Scale Weighing Sensor 0



Product Description



1.Suitable for electronic scale and other weighing equipment with small platform

2.Recommend max platform: 350×400mm

3.Surface Anodized Treatment

4.Silicon Rubber Sealing




Dimension


Electronic Strain Gauge Load Cell 100kg Platform Counting Scale Weighing Sensor 1





Technical Parameter:





Capacity Kg 50/100/150/200/250/350/500
Sensitivity mV/V 2.0±0.2
Accuracy

±0.02

Creep(15min) %FS ±0.02
Input Resistance Ω 406±20
Output Resistance Ω 350±5
Insulation Resistance M Ω ≥5000(100VDC)
Zero Balance %FS ±1
Temperature Effects on Span %FS/10℃ ±0.02
Temperature Effect on Zero %FS/10℃ ±0.02
Rated Temperature Range -10~+60
Operating Temperature Range -20~+80
Proposed Excitation Voltage V 5~12
Allowed Excitation Voltage V 18
Safe Overload %FS 120
Ultimate Overload %FS 150
Protection   IP65
Cable specification mm Ф5
Cable length m 2
Material   Aluminum Alloy


















































Application

Electronic Strain Gauge Load Cell 100kg Platform Counting Scale Weighing Sensor 2


Production Process

Electronic Strain Gauge Load Cell 100kg Platform Counting Scale Weighing Sensor 3
