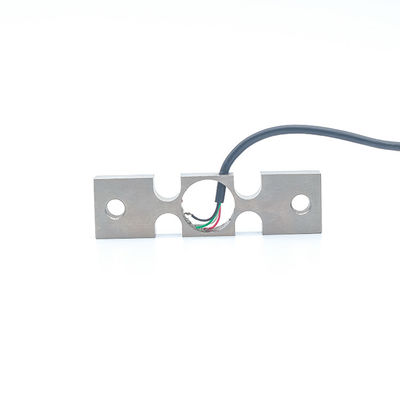

60kg Plate And Ring Tension Load Cell Sensor Alloy Steel For Elevator Customized

60kg Plate And Ring Tension Load Cell Sensor Alloy Steel For Elevator Customized

Product Details:
Place of Origin: China
Brand Name: ruijia
Model Number: RJ-9210
Detail Information
Place of Origin:
China
Brand Name:
ruijia
Model Number:
RJ-9210
Capacity:
60kg
Sensitivity:
2.0±0.2 MV/V
Accuracy:
±0.05
Combined Error:
≤±0.05%FS
Creep:
≤±0.02%FS(15min)
Input Resistance:
350±10 Ω
Output Resistance:
350±10 Ω
Operating Temperature:
-20~+80℃
Ultimate Overload:
150%FS
Protection Class:
IP65
High Light:

High Light

High Light:

Ring Tension Load Cell Sensor

,

60kg Tension Load Cell Sensor

,

Alloy Steel Elevator Special Load Cells

Trading Information
Minimum Order Quantity:
1pc
Price:
USD15/pc
Packaging Details:
Standard export packaging
Delivery Time:
2-4 weeks
Payment Terms:
L/C, T/T, Western Union
Supply Ability:
5000 Piece/Pieces per Month
Product Description

60kg Plate And Ring Tension Load Cell Sensor Alloy Steel For Elevator Customized 0



Working Principle

The working principle of the plate and ring tension sensor: the elastomer (elastic element, sensitive beam) deforms elastically under the action of external force, so that the resistance strain gauge (conversion element) pasted on its surface is also deformed, and after the deformation of the resistance strain gauge, its resistance value will change (increase or decrease), and then the corresponding measurement circuit converts this resistance change into an electrical signal (voltage or current), thus completing the process of converting the external force into an electrical signal. The process of converting the external force into an electrical signal is completed. It is widely used in various electronic vehicle scales, rail scales, platform scales, hopper scales and other occasions of weighing and force measurement.

Technical parameters:



 Capacity Kg 60
 Sensitivity mV/V 2.0±0.2
 Accuracy

≤±0.05

 Creep(15min) %FS ≤±0.02
 Input Resistance Ω 350±10
 Output Resistance Ω 350±10
 Insulation Resistance M Ω ≥5000(100VDC)
 Zero Balance %FS ≤±1
 Temperature Effects on Span %FS/10℃ ≤0.02
 Temperature Effect on Zero %FS/10℃ ≤0.02
 Rated Temperature Range -10~+60
 Operating Temperature Range -20~+80
 Proposed Excitation Voltage V 6~12
 Allowed Excitation Voltage V 18
 Safe Overload %FS 120
 Ultimate Overload %FS 150
 Protection   IP65
 Cable specification mm Ф4
 Cable length m 2.5
 Material   Alloy Steel



























































Dimension

60kg Plate And Ring Tension Load Cell Sensor Alloy Steel For Elevator Customized 1



60kg Plate And Ring Tension Load Cell Sensor Alloy Steel For Elevator Customized 2

















































Application

60kg Plate And Ring Tension Load Cell Sensor Alloy Steel For Elevator Customized 3





60kg Plate And Ring Tension Load Cell Sensor Alloy Steel For Elevator Customized 4
