Scale Load Cell
>

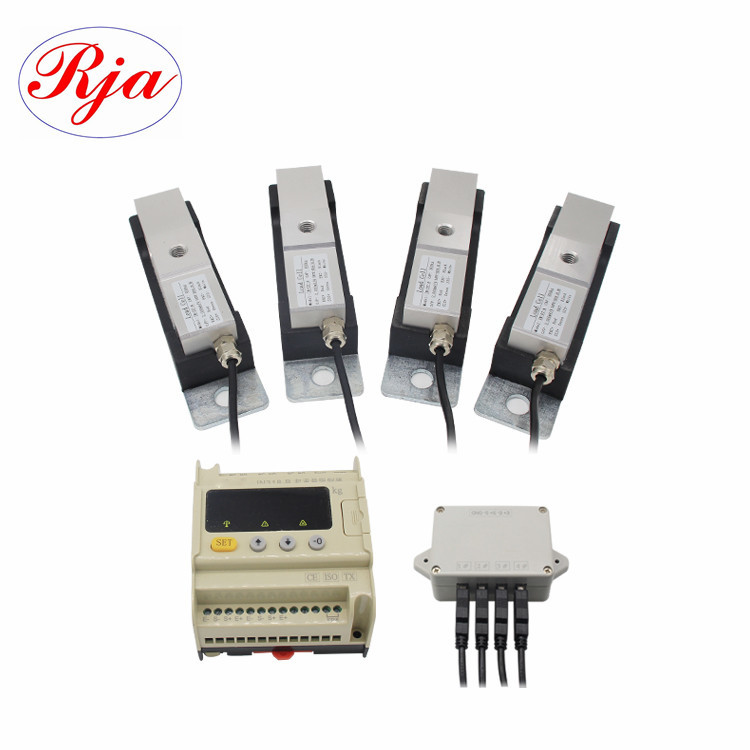

DC5V - 12V Rated Load Special Load Cells For Installation Below The Elevator Car

DC5V - 12V Rated Load Special Load Cells For Installation Below The Elevator Car

Product Details:
Place of Origin: China
Brand Name: ruijia
Model Number: RJ-6910
Detail Information
Place of Origin:
China
Brand Name:
ruijia
Model Number:
RJ-6910
Type:
Elevator Parts
Capacity:
800kg
Overload Capacity:
150%
Excitation:
5-12VDC
Operating Temperature:
-20~60℃
Ultimate Overload:
200%F.S
Action Error:
≤1%F.S
Material:
Aluminum Alloy
Highlight:

High Light

Highlight:

piezoelectric load cell

,

platform scale load cell

Trading Information
Minimum Order Quantity:
1pc
Price:
USD8-25/pc
Packaging Details:
Standard export packaging
Delivery Time:
2-4 weeks
Payment Terms:
Western Union, MoneyGram, L/C, T/T
Supply Ability:
5000 Piece/Pieces per Month
Product Description

rated load 800kg special load cells elevator lift Cabin sensor for installation below the elevator car

Load cell is the heart of electronic weighing apparatus. As the rapid development of sensor technology, electronic weighing apparatus have been widely used in many industrial areas.



Product Features:



1. Elastomer for aluminum alloy material

2. Suitable for elevator overload weighing system.

3. The sensor can be used independently.

Product Description



How about  Elevator overload sensor dimension?





GOL510-



Technical Parameters:



Rated load 800kg
Total error ±0.5%F.S
Sensitivity 2.0±0.02%mV/V
Repeatability ±0.5%F.S
Creep ±0.05%F.S/30min
Zero output ±1%F.S
Input resistance 1030±10Ω
Output resistance 1000±2Ω
Insulation resistance 5000MΩ
TC SPAN ±0.02%F.S/10℃
Excitation ≤15VDC
Max.excitation 15VDC
Operation temperature range -30~70℃
Safe overload 150%F.S
Ultimate overload 200%F.S
Protection class IP67/IP68
Construction Special aluminum alloy





What is structure of elevator load sensor?



GOL510



Installation:

G510A Installation.jpg



How to connect the elevator overload sensor with junction box?

DC5V - 12V Rated Load Special Load Cells For Installation Below The Elevator Car 3





Packing



Standard export package: each unit has individual box and all boxes are packed in standard packages.



Shipping



Products are shipped from china. We will sent out within 15 working days after the payment. We usually sendthe parcel by DHL, EMS and TNT etc. The tracking number will be sent to you after delivery. It usually takes 3--5 working days to reach your side which depend on the country delivery to.



Our Services


Service standards: we are committed to provide a high quality and responsive service to all clients



The fastest reply: Please feel free to contact us if you have any questions. You will get a reply from the professional and experienced trade manager within 24 hours. If our trade manager is off line, please leave a message, and tell us the product model you need and your E-mail address.



Quality assurance: good quality is assured by advanced manufacturing technology. And all products are through strict test by our professional QC team before shipping.



Door to door service: We usually send the parcel by DHL, EMS and TNT etc. The tracking number will be sent to you after delivery. It usually takes 3--5 working days to reach from from our side to your side, which is very convenient for your business



OEM available
