Shear Beam Load Cell
>

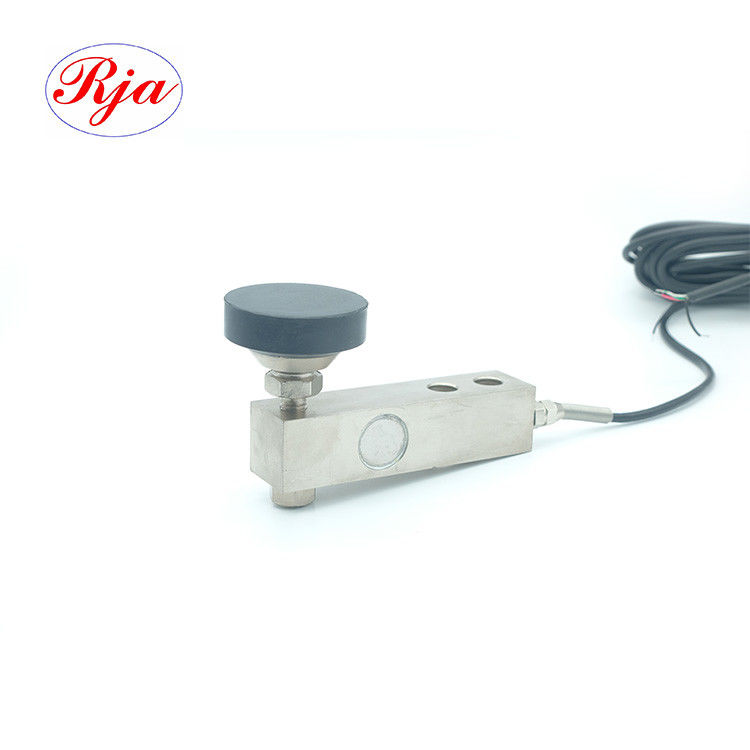

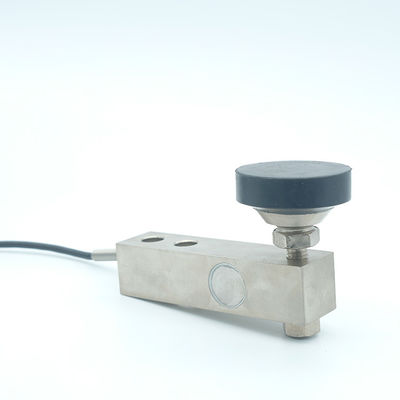

Alloy Steel High Precision Shear Beam Load Cell For Automotive Electronic Rail Scale

Alloy Steel High Precision Shear Beam Load Cell For Automotive Electronic Rail Scale

Product Details:
Place of Origin: Shannxi, China
Brand Name: Ruijia
Model Number: RJ-9810
Detail Information
Place of Origin:
Shannxi, China
Brand Name:
Ruijia
Model Number:
RJ-9810
Usage:
Weighting
Theory:
Resistance Sensor
Output:
Analog Sensor
Capacity:
0.1/0.2/0.25/0.5/1/2/5 T
Sensitivity:
2.0±0.005 3.0±0.005 MV/V
Creep(5min):
≤±0.02 %FS
Accuracy:
≤±0.02 %FS
Input Resistance:
375±10 Ω
Output Resistance:
350±5 Ω
Rated Temperature Range:
-10~+60 ℃
Operating Temperature Range:
-35~+80 ℃
Cable Specification:
Ф5
Cable Length:
3 M
Material:
Alloy Steel
High Light:

High Light

High Light:

Precision Shear Beam Load Cells

,

Shear Beam Electronic Rail Scale

,

Alloy Steel Shear Beam Load Cell

Trading Information
Minimum Order Quantity:
1pc
Price:
USD 15/piece
Packaging Details:
Standard export packaging
Delivery Time:
Within 2-4 Weeks
Payment Terms:
T/T, L/C, Western Union
Supply Ability:
10000 Piece/Pieces per Month
Product Description

Alloy Steel High Precision Shear Beam Load Cell For Automotive Electronic Rail Scale 0





Product Description



High precision shear beam load cell has high accuracy and stability, strong lateral resistance and small installation size, sturdy, reliable and durable, the change of force point position has little effect on the output signal, therefore, it is especially suitable for vehicle scales, electronic rail scales and various high precision electronic scales. Although shear beam load cells have a certain overload capacity, they should still be prevented from being overloaded during the installation process.




Dimension

Alloy Steel High Precision Shear Beam Load Cell For Automotive Electronic Rail Scale 1Alloy Steel High Precision Shear Beam Load Cell For Automotive Electronic Rail Scale 2





Capaacity Dimension (mm)
t L L1 L2 L3 L4 W W1 H H1 D D1 M A1/A2
0.1-0.3 130 15.8 25.4 76.2 54.2 31.8 34 31.8 15.8 13.5 13.5 M12*1.75 A1
0.5-2 130 15.8 25.4 76.2 54.2 31.8 31.8 31.8 15.8 13.5 13.5 M12*1.75 A2
2.5-5 171.5 19.1 38.1 95.3 77.2 38.1 38.1 38.1 18.8 19.8 19.8 M18*1.5 A2





Alloy Steel High Precision Shear Beam Load Cell For Automotive Electronic Rail Scale 3          Alloy Steel High Precision Shear Beam Load Cell For Automotive Electronic Rail Scale 4





Alloy Steel High Precision Shear Beam Load Cell For Automotive Electronic Rail Scale 5          Alloy Steel High Precision Shear Beam Load Cell For Automotive Electronic Rail Scale 6




Technical Parameter:



Capacity t 0.1/0.2/0.25/0.5/1/2/5
Sensitivity mV/V 2.0±0.005 3.0±0.005
Accuracy %FS

≤±0.02

Creep(15min) %FS ≤±0.02
Input Resistance Ω 375±10
Output Resistance Ω 350±5
Insulation Resistance M Ω ≥5000(100VDC)
Zero Balance %FS ≤±1
Temperature Effects on Span %FS/10℃ ≤0.02
Temperature Effect on Zero %FS/10℃ ≤0.02
Rated Temperature Range -10~+60
Operating Temperature Range -35~+80
Proposed Excitation Voltage V 6~12
Allowed Excitation Voltage V 18
Safe Overload %FS 150
Ultimate Overload %FS 300
Protection   IP65
Cable specification mm Ф5
Cable length m 3
Material   Alloy Steel
