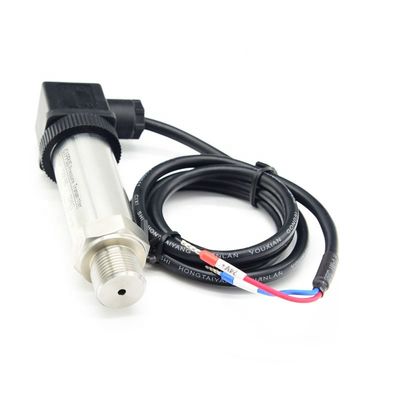

60bar Dustproof Electronic Air Pressure Sensor High Overpressure Hydraulic System

60bar Dustproof Electronic Air Pressure Sensor High Overpressure Hydraulic System

Product Details:
Place of Origin: china
Brand Name: ruijia
Model Number: PTM-1H
Detail Information
Place of Origin:
china
Brand Name:
ruijia
Model Number:
PTM-1H
Output:
4~20mA,0~5Vdc,1~5Vdc,0~10Vdc
Accuracy:
0.5%,0.25%
Pressure Type:
G, A, S
OEM:
Acceptable
Response Time(10%~90%):
10ms
Protection:
IP65, Others Can OEM
Highlight:

High Light

Highlight:

industrial air pressure sensor

,

electronic pressure sensor

Trading Information
Minimum Order Quantity:
1pc
Price:
USD30-50/pc
Packaging Details:
each unit has individual box and all boxes are packed in standard packages
Delivery Time:
2-4 weeks
Payment Terms:
Western Union, MoneyGram, L/C, T/T
Supply Ability:
10000 Piece/Pieces per Month
Product Description



60bar Dustproof Electronic Air Pressure Sensor High Overpressure Hydraulic System





Product Description

Anti-corrosion and explosion-proof small-profile pressure transmitter adopts high-precision, high-temperature qualitative force-sensitive chip with stainless steel metal diaphragm. After strict precision temperature compensation, signal amplification, V/I conversion, the pressure parameters are reliably converted into industry standard 4 ~20mA or 0~10mA signal output, widely used in petroleum, chemical, metallurgy, electric power, textile, environmental protection and other fields.



Features

  • Pressure Range: 0~2kPa~35MPa
  • Stability: ≤ 0.1% FS/year, ≤ 0.01%FS/℃
  • Accuracy: ≤ 0.1%FS
  • Temperature compensation range: 0~+70℃
  • Anti-jamming design
  • Small body, easy installation
  • Intrinsically safe explosion



Specifications

pressure medium gas or liquid compatible with stainless steel
pressure ranges -1...0~0.1...350bar
overload pressure 150%FS
output signal 4~20mA, 0~5V, 0~10V, 1~5V
accuracy 0.25%FS(standard), 0.5%FS
load resistance RL=(U-12V)/0.02A(4~20mA current output) U—loop voltage(V)
long-term stability <0.2%FS/year
supply voltage 12~36VDC
compensated temperature range 0~70℃
operating temperature range -30~+85℃
measured media temperature range -40~+125℃
temperature coefficient of zero 0.2%FS/10℃
temperature coefficient of span 0.2%FS/10℃
insulation resistance 100MΩ@50VDC
process connection G1/2 or others
electrical connection hirschmann connector or others
material of wetted part 316L stainless steel
material of pressure membrane 316L stainless steel
316L stainless steel stainless steel or aluminium alloy



60bar Dustproof Electronic Air Pressure Sensor High Overpressure Hydraulic System 0



GPT200



Package & Shipping



Standard export package: each unit has individual box and all boxes are packed in standard packages60bar Dustproof Electronic Air Pressure Sensor High Overpressure Hydraulic System 2



FAQ



1. Q: Do you have a catalogue? Can you send me the catalogue to have a check of all your products?

A: Yes , We have product product list.Please contact us online or send an Email to sending the catalogue.



2. Q: I need your price list of all your products, do you have a price list ?

A: We do not have a price list of all of our products. Because we have so many items,and it’s impossible to mark all of their price on a list.And the price are always changing because of the producing cost.If you want to check any price of our products, please feel free to contact us.We will send offer to you soon!



3. Q: I can find the product on your catalogue, can you make this product for me?

A: Our catalogue shows most of our products,but not all.So just let us know what product do you need,and how many do you want.If we do not have it,we can also design and make a new mould to produce it.For your reference,making a ordinary mould will take about 30 days.



4. Q : Can you make customized products and customized packing?

A: Yes.We made a lot of customized products for our customer before.And we made many moulds for our customers alread.About customized packing,we can put your Logo or other info on the packing.There is no problem.Just have to point out that ,it will cause some additional cost.



5. Q: Can you provide samples ? Are the samples free ?

A:We offer paid sample,around 4-5days arrived your hand by DHL, UPS or EMS



6. Q: What kind of payment do you accept ? Can I pay RMB ?

A:Payment <=50000USD,100% in advance. Payment>=50000USD,50%T/T in advance,balance before shipment.Please be sure that we can receive the same amount of the Invoice. And you can pay money In RMB. No problem.



7. Q : How to ship my order ? Is it safe?

A: For small package, we will send it by Express, such as DHL,FedEx,,UPS,TNT,EMS.That’s a Door to Door service.



8. Q: Do you have a guarantee of your product quality?

A: We have a guarantee of one year.



9. Q: Can I become an Agent / Dealer of Ruijia products?

A: Welcome! But please let me know your Country/Area first,We will have a check and then talk about this.If you want any other kind of cooperation,do not hesitate to contact us.
