| Place of Origin: | China |
| Brand Name: | ruijia |
| Model Number: | HM9B |

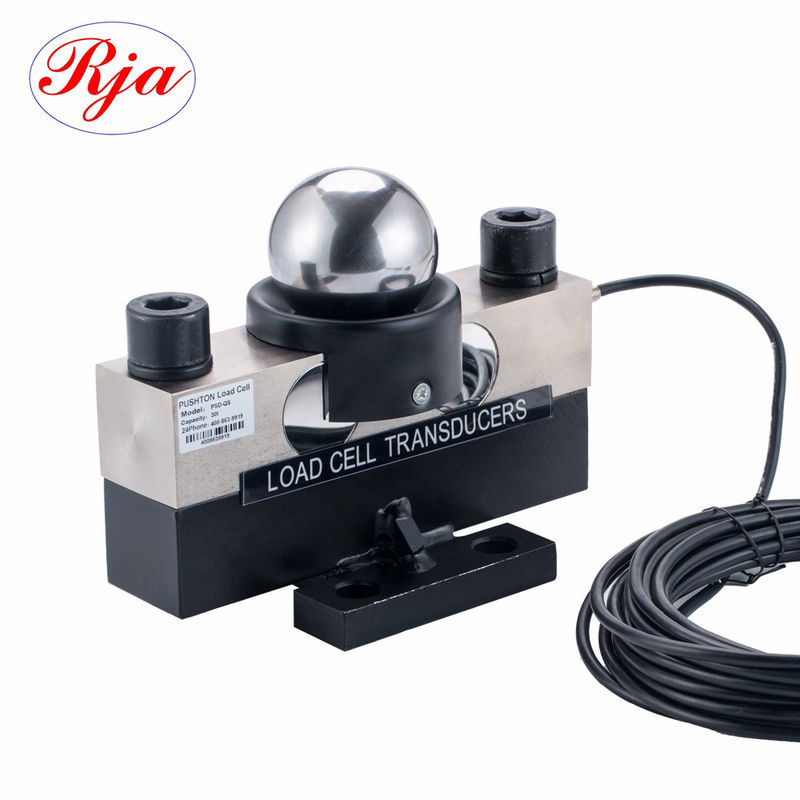

Load cell is the heart of electronic weighing apparatus. As the rapid development of sensor technology, electronic weighing apparatus have been widely used in many industrial areas. It is used in tank scales, hopper scales, hanging scales, vehicle scales, and other scales or control systems that require fast and accurate force measuring.
Alloy steel & stainless structure; bellows hermetically sealed by laser, nickel plated, waterproof and anti-corrosion, suitable for multiform environments; suitable for electronic platform scales, hopper scales, and otherelectronic weighing devies.
What is Specifications of load cell?
| Precision : C3 | Temp. effect on span(%F.S/10℃): 0.0016 |
| Comprehensive error(%F.S) : ≤0.02 | Temp. effect on zero(%F.S/10℃):0.002 |
| Rated output(mv/v) : 2.0±0.004 | Compensated temp. range(℃ ) : -10~+40 |
| Creep(%F.S/30min) : ±0.02 | Use temp. range(℃ ) : -35~+80 |
| Zero balance(%F.S) : ±1.0 | Excitation voltage(V) : 9~12(DC) |
| Input resistance(Ω) : 750±7 | Safe overload (%F.S) : 150 |
| Output resistance(Ω) : 702±5 | Ultimate overload (%F.S) : 200 |
| Insulation resistance(MΩ) : ≥5000(50VDC) | Defend grade : IP67 |
What is Dimension of load cell?
What is Application of Load cell?
