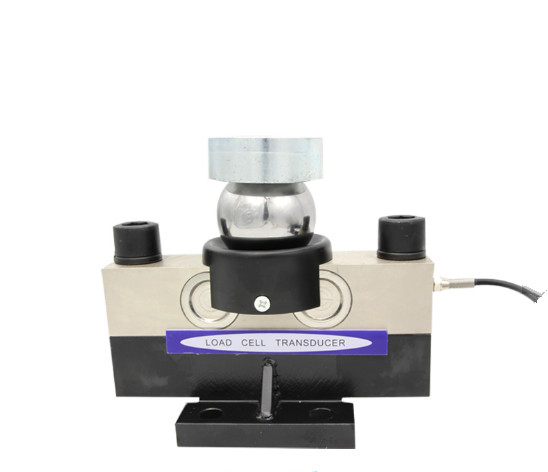

High Performance Weighbridge Load Cell Sealed By Laser / Nickel Plated

Basic Information
Place of Origin: China
Brand Name: ruijia
Model Number: HM9B
Minimum Order Quantity: 1pc
Price: USD80-150/pc
Packaging Details: Standard export packaging
Delivery Time: 2-4 weeks
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10000 Piece/Pieces per Month
Detail Information
Usage: Pressure Sensor Theory: Resistance Sensor
Output: Analog Or Digital Optional Comprehensive Error (%F.S): ≤0.02
Zero Balance (%F.S): ±1.0 Creep(%F.S/30min): ±0.02
Input Resistance(Ω): 750±7 Output Resistance(Ω): 702±5
Material: Alloy Steel Or Stainless Steel Item: Truck Scales Bridge Type Load Cell 10t
High Light:

low cost load cell

,

industrial load cells


Product Description

Small Size weightbridge Load Cell Truck Scales Bridge Type rail scales sensor 10t

Load cell is the heart of electronic weighing apparatus. It is used in tank scales, hopper scales, hanging scales, vehicle scales, and other scales or control systems that require fast and accurate force measuring.



What is Features of load cell?



Alloy steel & stainless structure; bellows hermetically sealed by laser, nickel plated, waterproof and anti-corrosion, suitable for multiform environments; suitable for electronic platform scales, hopper scales, and otherelectronic weighing devies.



Specifications



Precision : C3 Temp. effect on span(%F.S/10℃): 0.0016
Comprehensive error(%F.S) : ≤0.02 Temp. effect on zero(%F.S/10℃):0.002
Rated output(mv/v) : 2.0±0.004 Compensated temp. range(℃ ) : -10~+40
Creep(%F.S/30min) : ±0.02 Use temp. range(℃ ) : -35~+80
Zero balance(%F.S) : ±1.0 Excitation voltage(V) : 9~12(DC)
Input resistance(Ω) : 750±7 Safe overload (%F.S) : 150
Output resistance(Ω) : 702±5 Ultimate overload (%F.S) : 200
Insulation resistance(MΩ) : ≥5000(50VDC) Defend grade : IP67



What is Dimension of load cell?
GBS800S



What is Application of Load cell?



GBS800 Weighbridge Truck Scales Load Cell 30t



What is Detailed image of Load cell?

High Performance Weighbridge Load Cell Sealed By Laser / Nickel Plated 2





FAQ



Q:What are the applications of bridge type load cell?

A: Weighbridge scale, truck scale, etc.



Q:What is the raw material?

A: Alloy steel



Q: What is the load range?

A: 1kg-100kg 0.1T-100T



Q: What is the accuracy/precision?

A: C3 0.02%



Q: What is the IP production rate?

A: IP66, IP68



Q: What is the load range?

A: 10-40T



Q: What is the weighbridge complete weighing system?

A: Load cells+junction box+GSI201-P truck scale weighing indicator with printer+GSI409 big display screen



What is Process flowcharts of Load cell?

High Performance Weighbridge Load Cell Sealed By Laser / Nickel Plated 3
