| Place of Origin: | china |
|---|---|
| Brand Name: | ruijia |
| Model Number: | RJ-6530 |
| Minimum Order Quantity: | 1pc |
| Price: | USD5-10/pc |
| Packaging Details: | Standard export packaging |
| Delivery Time: | 2-4 weeks |
| Payment Terms: | Western Union, MoneyGram, L/C, T/T |
| Supply Ability: | 10000 Piece/Pieces per Month |
| Usage: | Pressure Sensor | Theory: | Resistance Sensor |
|---|---|---|---|
| Output: | Analog Sensor | Rated Load: | 50, 100, 150, 200, 300, 500, 600 |
| Platform Size: | 600*600mm | Accuracy: | C3 |
| Sensitivity: | 2.0±0.1mV/V | Input Resistance: | 410±10Ω |
| Output Resistance: | 350±2Ω | Protection Class: | IP65 |
| High Light: | small load cell,digital load cell |
||
Product Description

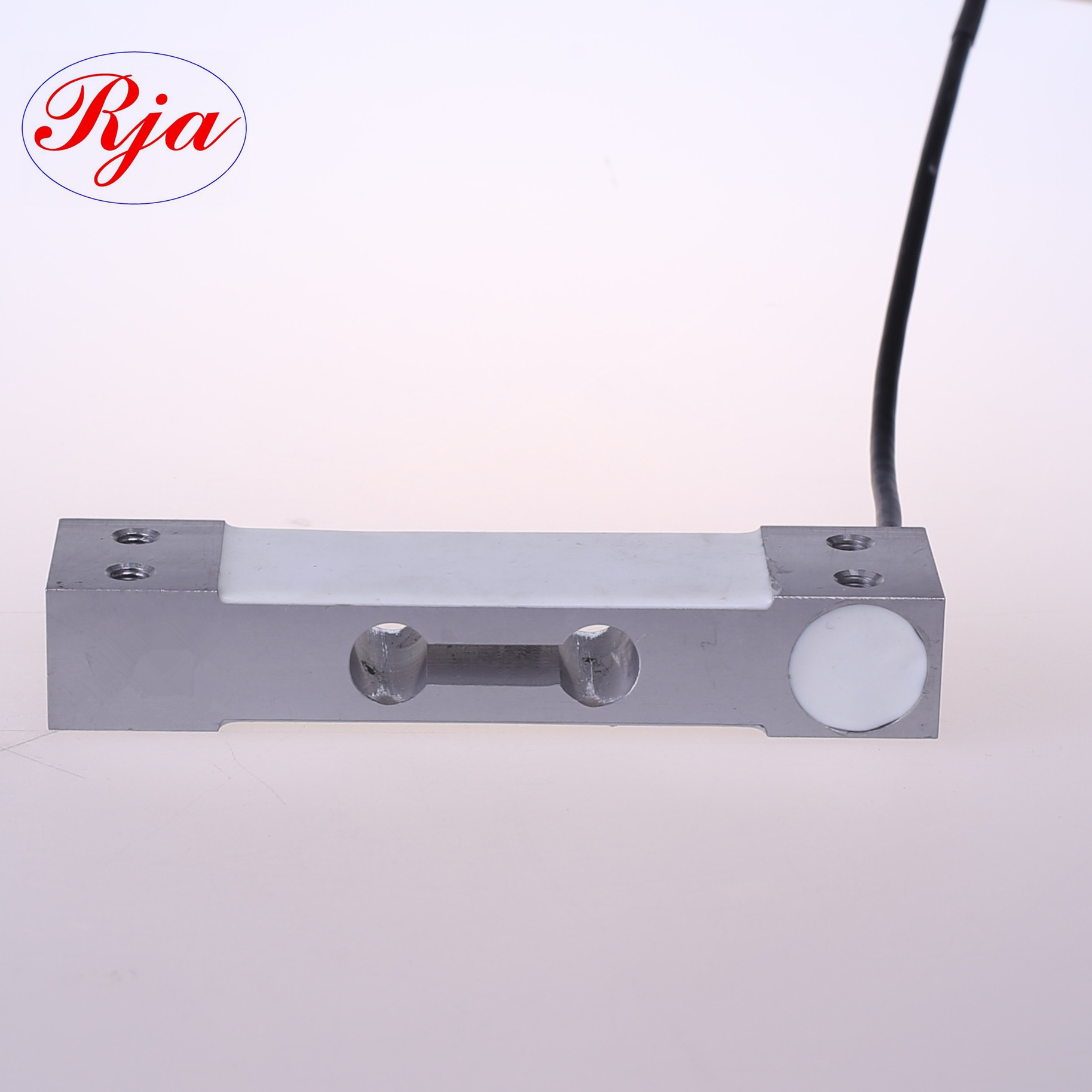

1. Made of aluminum alloy
2. Suitable for electronic scale and other weighing equipment with small platform
3. Recommend max platform: 250×350mm
What is load cell?
Load cell is the heart of electronic weighing apparatus. As the rapid development of sensor technology, electronic weighing apparatus have been widely used in many industrial areas. It is used in tank scales, hopper scales, hanging scales, vehicle scales, and other scales or control systems that require fast and accurate force measuring.
PB100 load cell
| Datas | |
| Range (KG): 3, 5, 6, 10, 15, 20, 30, 40, 50, 60, 100, 120 | |
| Accuracy: C2/C3 | Temp. effect on span (%F.S/10℃): ±0.02/± 0.014 |
| Comprehensive error(%F.S): ±0.02/±0.017 | Temp. effect on zero (%F.S/10℃): ±0.03/±0.017 |
| Rated output (mV/ V): 2.0±0.2 | Compensated temp. range (℃): -10~+40 |
| Creep (%F.S/30min): ±0.02/±0.017 | Operation temp. range (℃): -20~+60 |
| Zero balance (%F.S): ±1.0 | Excitation voltage (V): 9-12(DC) |
| Input resistance (Ω): 405±10 | Safe overload (%F.S): 120 |
| Output resistance (Ω): 350±3 | Ultimate overload (%F.S): 150 |
| Insulation resistance (MΩ): ≥5000(100VDC) | Ingress protection: IP65 |
How about the load instruction of load cell?
How about the dimension of load cell?
Packing
Standard export package: each unit has individual box and all boxes are packed in standard packages.
Shipping
Products are shipped from china. We will sent out within 15 working days after the payment. We usually send the parcel by DHL, EMS and TNT etc. The tracking number will be sent to you after delivery. It usually takes 3--5 working days to reach your side which depend on the country delivery to.
Service standards: we are committed to provide a high quality and responsive service to all clients
The fastest reply: Please feel free to contact us if you have any questions. You will get a reply from the professional and experienced trade manager within 24 hours. If our trade manager is off line, please leave a message, and tell us the product model you need and your E-mail address.
Quality assurance: good quality is assured by advanced manufacturing technology. And all products are through strict test by our professional QC team before shipping.
Door to door service: We usually send the parcel by DHL, EMS and TNT etc. The tracking number will be sent to you after delivery. It usually takes 3--5 working days to reach from from our side to your side, which is very convenient for your business
OEM available
