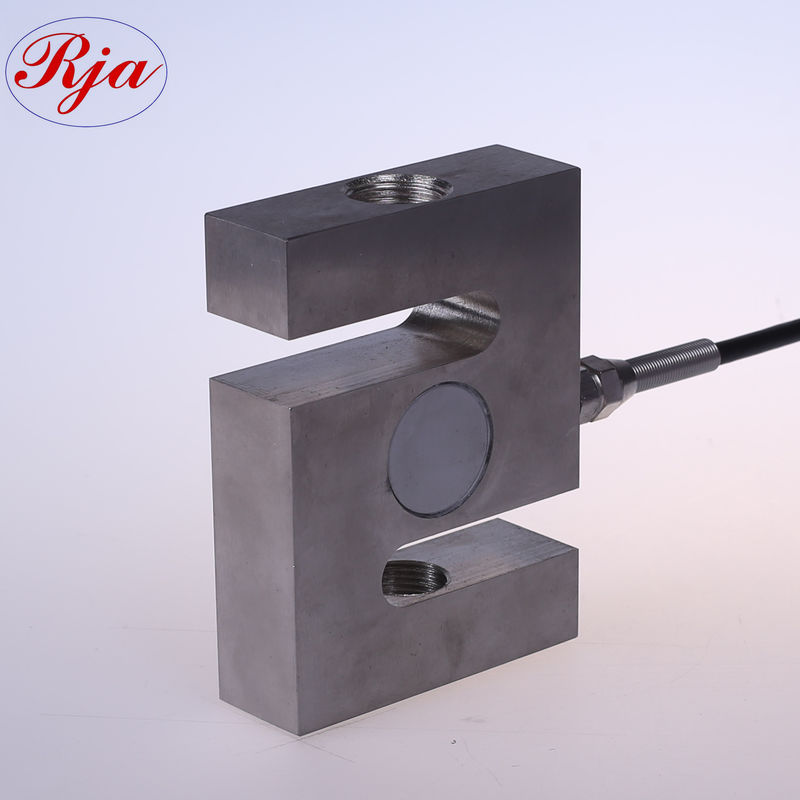

Analog Output Tension And Compression Load Cell For Crane Scales 10kg - 3ton

Basic Information
Place of Origin: china
Brand Name: ruijia
Model Number: RJ-9320
Minimum Order Quantity: 1pc
Price: USD20-40/pc
Packaging Details: Product packed in foam box with bubble bag.
Delivery Time: 2-4 weeks
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10000 Piece/Pieces per Month
Detail Information
Usage: Compression And Tension Theory: Resistance Sensor
Output: Analog Sensor Capacity: 10-5000KG
Comprehensive Error: ±0.03 & ±0.02 Safe Overload (%F.S): 150
Ultimate Overload: 300 Material: Alloy Steel
Accuracy: C2/ C3 Application: Crane Scale, And Other Electronic Weighing Devices
High Light:

s shaped load cell

,

s beam load cell


Product Description



10kg-3ton S type load cell compression and tension sensor for crane scales



What is strength of  Load cell?



1. Made of alloy steel

2. With glue sealing and nickel plated surface,waterproof and anti - corrosion, could work for various application

3. Suitable for crane scale, vibratory feeding equipment and other electronic weighing devices



What is Detailed image of  Load cell?





GSL301



GSL301

What is Specifications of Load cell?



Specification:

Range (KG): 10, 50, 100, 150, 200, 250, 300, 500, 1000, 2000, 5000

Accuracy: C2/ C3

Temp. effect on span (%F.S/10℃): ±0.017 & ±0.011

Comprehensive error (%F.S): ±0.03 & ±0.02

Temp. effect on zero (%F.S/10℃): ±0.023 & ±0.015

Rated output (mV/ V): 2.0±0.004

Compensated temp. range (℃): -10~+40

Creep (%F.S/30min): ±0.024 & ±0.016

Operation temp. range (℃): -20~+55

Zero balance (%F.S): ±1.0

Excitation voltage (V): 9-12(DC)

Input resistance (Ω): 350±5

Safe overload (%F.S): 150

Output resistance (Ω): 350±3

Ultimate overload (%F.S): 200

Insulation resistance (MΩ): ≥5000 (100VDC)

Ingress protection: IP66



What is Dimension of Load cell?



GSL301 500kg S type Compression Tension Load Cell

Range (kg )

A

B

C

M

10-50

51

12.7

64

M8

100-500

51

19

76

M12

750-1500

50.8

25.4

76

M12 X1.75

2000-5000

76.2

25.4

108

M18X1.5





What is Application of Load cell?





GSL301 500kg S type Compression Tension Load Cell
