Low profile Platform Load Cell Off Centre weight sensor

Product Details:

Place of Origin:	CHINA
Brand Name:	RUIJIA
Certification:	CE
Model Number:	RJ

Detail Information

Place of Origin:

CHINA

Brand Name:

RUIJIA

Certification:

Model Number:

Rated Capacities:

100，150，200，300（kg）

Rated Output:

2.0 MV/V±5%

Zero Balance:

±0.0200 MV/V

Non-linearity:

0.02 %R.O.

Hysteresis:

0.02 %R.O.

Input Impedance:

410±15 Ω

Highlight:

High Light

Highlight:

low profile platform load cell

off center weight sensor

single point load cell

Trading Information

Minimum Order Quantity:

Price:

USD5 ~45/piece

Packaging Details:

Standard export packaging

Delivery Time:

5-8 Work days

Payment Terms:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability:

1000 Piece/Pieces per Month

Product Description

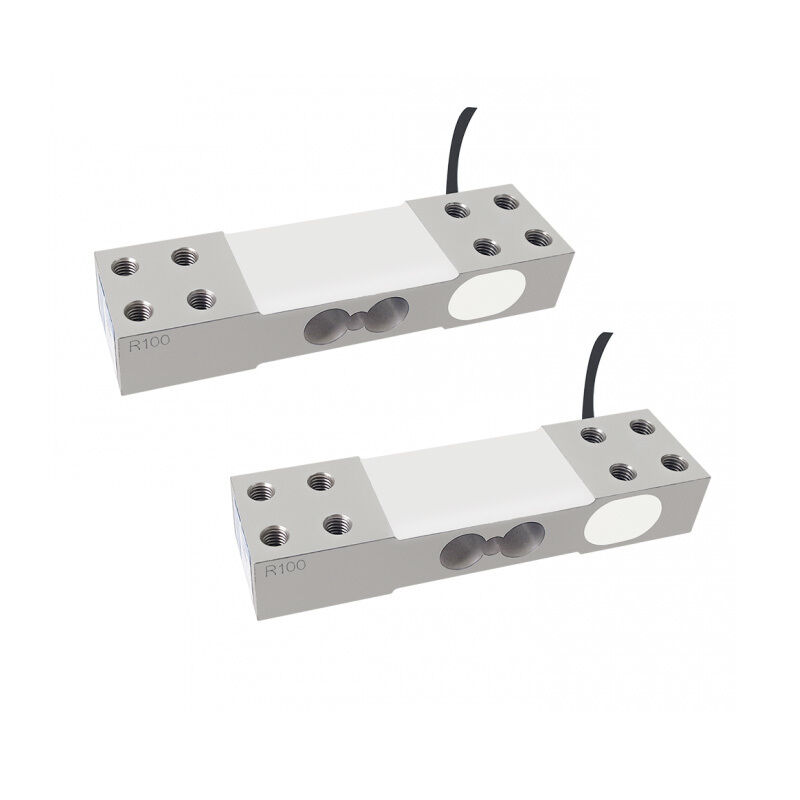

Low profile Platform Load Cell Off Centre weight sensor

RJ low profile scale sensor is designed for direct mounting on low cost weighing platforms. Its small physical size, combined with high precision and low cost, makes the off centre weight sensor ideally suited for retail, bench and counting scales.

Key Features:

Aluminum alloy construction

Calibrated to national standards

Easy to install

Long term, reliable operation

Usage & Applications:

Platform scales

Bench scales

Retail scales
Pricing scales

Counting scales

Dimension:

Low profile Platform Load Cell Off Centre weight sensor 0

Specification:

Rated Capacities	100,150,200,300(kg)
Rated Output	2.0 mV/V±5%
Zero Balance	±0.0200 mV/V
Non-linearity	0.02 %R.O.
Hysteresis	0.02 %R.O.
Repeatability	0.02 %R.O.
30mins Creep	0.02 %R.O.
30mins Return	0.02 %R.O.
Safe Overload	150 %R.O.
Ultimate Overload	200 %R.O.
Temperature Effect On Output	0.002 %R.O./℃
Temperature Effect On Zero	0.003 %R.O./℃
Input Impedance	410±15 Ω
Output Impedance	350±5 Ω
Insulation Impedance	≥5000 MΩ/(50VDC)
Recommended Excitation	5~12 VDC
Maximum Excitation	15 VDC
OperatingTemperatureRange	-20~60 ℃
Construction	Aluminum Alloy
Protection Class	IP66 / IP67
Cable	φ4×1.5m
Recommended Platform Size	350×450 mm
Mode of Connection	Red(EXC+),Black(EXC-), Green(SIG+),White(SIG-)

Company Information

Low profile Platform Load Cell Off Centre weight sensor 1

Ruijia is a technical service enterprise specializing in force measurement technology research, product R & D, production, sales and service. It is mainly engaged in micro force sensors, high-precision load cells, S-type sensors, cantilever sensors, multi-dimensional force sensors, tension sensors, transmitters R & D and production of control instruments and provide system engineering control solutions. The company has modern and spacious workshops, high-quality production and testing equipment, professional R & D team and perfect management system to provide reasonable and practical solutions for our customers. With years of understanding and understanding in the field of automation, the company has always adhered to the enterprise operation concept of "user first", built a professional team in the field of automation, and provided customers with stable quality products and pre-sales and after-sales technical services. We always adhere to the tenet of independent innovation, only good products and scientific management, and always adhere to providing perfect products and system solutions, which is highly respected in our field; Constantly change and provide customers with excellent value-added services.

Our advantages

1, Professional	17+years industrial experience,Know your needs quickly
2, Wide Product Variety	include:encoders,sensors,couplings, and other instruments widely used in CNC machinery, textile machinery, steel rolling machinery, linear guide system, hydraulic system, lifting machinery,servo motor and so on
3, High cost-performence	we can also customize replacement to the same specifications as the brand you need
4, Good service	If you have any question,Welcome to feel free to contact
