Low Capacity OIML Approval Single Point Load Cell

Product Details:

Place of Origin:	CHINA
Brand Name:	RUIJIA
Certification:	CE
Model Number:	RJ

Detail Information

Place of Origin:

CHINA

Brand Name:

RUIJIA

Certification:

Model Number:

Material:

Aluminium Alloy

Capacity:

1~30kg

Precision:

0.03%R.O.

Protection Class:

IP66/67

Rated Output:

2.0mV/V±10%

2.0mV/V±10%:

1000±10 %Ω

Highlight:

High Light

Highlight:

OIML approved single point load cell

low capacity single point load cell

single point load cell with warranty

Trading Information

Minimum Order Quantity:

Price:

USD5 ~45/piece

Packaging Details:

Standard export packaging

Delivery Time:

5-8 Work days

Payment Terms:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability:

1000 Piece/Pieces per Month

Product Description

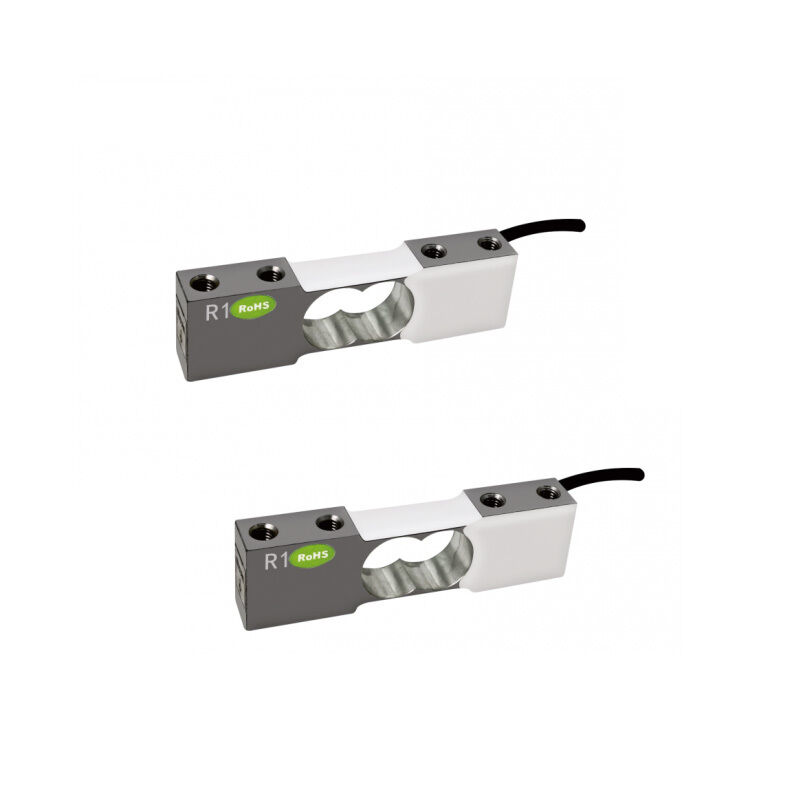

Low Capacity OIML Approval Single Point Load Cell

Low Capacity OIML Approval Single Point Load Cell NA96

The load cell is aluminium alloy strain gauge load cell,high precision and solid structure can apply for a lot of measurement.The single point weight sensor is suitable for kitchen scale,portable scale.etc.

Key Feature:

Aluminium alloy

Capacity: 1~30kg

Precision: 0.03%R.O.

Protection class: IP66/67

Rated Output : 2.0mV/V±10%

Usage & Application:

Mainly used in kitchen scale,portable scale.

Dimension:

Low Capacity OIML Approval Single Point Load Cell 0

Specification:

Rated Capacities	1~30kg
Rated Output	2.0 mV/V±10%
Zero Balance	±0.1000mV/V
Non-linearity	0.03 %R.O.
Hysteresis	0.03 %R.O.
Repeatability	0.03 %R.O.
30mins Creep	0.03 %R.O.
30mins Return	0.03 %R.O.
Safe Overload	150 %R.O.
Ultimate Overload	200 %R.O.
Temperature Effect On Output	0.01%R.O./℃
Temperature Effect On Zero	0.05 %R.O./℃
Input Impedance	1115±10 %Ω
Output Impedance	1000±10 %Ω
Insulation Impedance	≥2000MΩ/(50VDC)
Recommended Excitation	5~12 VDC
Maximum Excitation	15 VDC
OperatingTemperatureRange	-20~60 ℃
Construction	Aluminum Alloy
Protection Class	IP666/67
Cable	Φ3×0.3m
Recommended Platform Size
Mode of Connection	Red(EXC+),Black(EXC-),Green(SIG+),White(SIG-)

Company Information

Low Capacity OIML Approval Single Point Load Cell 1

Ruijia is a technical service enterprise specializing in force measurement technology research, product R & D, production, sales and service. It is mainly engaged in micro force sensors, high-precision load cells, S-type sensors, cantilever sensors, multi-dimensional force sensors, tension sensors, transmitters R & D and production of control instruments and provide system engineering control solutions. The company has modern and spacious workshops, high-quality production and testing equipment, professional R & D team and perfect management system to provide reasonable and practical solutions for our customers. With years of understanding and understanding in the field of automation, the company has always adhered to the enterprise operation concept of "user first", built a professional team in the field of automation, and provided customers with stable quality products and pre-sales and after-sales technical services. We always adhere to the tenet of independent innovation, only good products and scientific management, and always adhere to providing perfect products and system solutions, which is highly respected in our field; Constantly change and provide customers with excellent value-added services.

Our advantages

1, Professional	17+years industrial experience,Know your needs quickly
2, Wide Product Variety	include:encoders,sensors,couplings, and other instruments widely used in CNC machinery, textile machinery, steel rolling machinery, linear guide system, hydraulic system, lifting machinery,servo motor and so on
3, High cost-performence	we can also customize replacement to the same specifications as the brand you need
4, Good service	If you have any question,Welcome to feel free to contact
