High Precision Bending Beam Load Cell (0.5-5kg)

Product Details:

Place of Origin:	CHINA
Brand Name:	RUIJIA
Certification:	CE
Model Number:	RJ

Detail Information

Place of Origin:

CHINA

Brand Name:

RUIJIA

Certification:

Model Number:

Material:

Aluminum Alloy Material

Capacity:

0.5-5kg

Precision:

0.03%R.O.

Protection Class:

IP65

Rated Output:

0.8-1.0 MV/V

Usage & Applications:

Jewelry Scale

Highlight:

High Light

Highlight:

high precision bending beam load cell

5kg capacity single point load cell

0.5kg min bending beam sensor

Trading Information

Minimum Order Quantity:

Price:

USD1.5 ~12.8/piece

Packaging Details:

Standard export packaging

Delivery Time:

5-8 Work days

Payment Terms:

L/C, D/A, D/P, Western Union, T/T, Western Union, MoneyGram

Supply Ability:

1000 Piece/Pieces per Month

Product Description

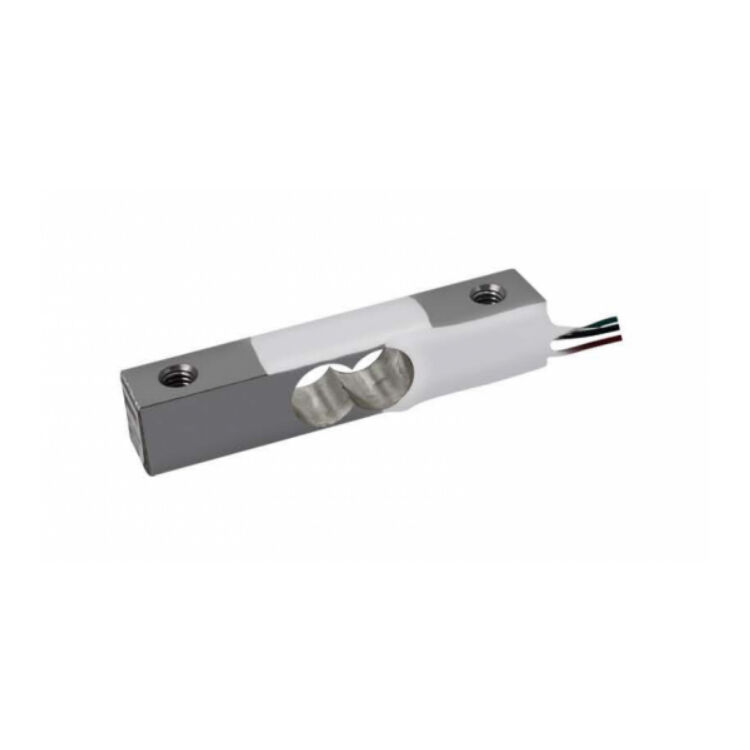

High Precision Bending Beam Load Cell (0.5-5kg)

High Precision Bending Beam Load Cell (0.5-5kg)

The Aluminum alloy parallel load cell sealed with white glue, high precision weighing load cell for jewelry scale with multiple accuracy levels.

Payment	100% payment before shipment
Capacities	0.5kg ; 1, 2, 3, 5 (kg)
Material	Aluminum Alloy
Dimension	52610mm (0.5kg)
Dimension	52910mm (1-5kg)
Rated Output	0.8±0.15 mV/V ; 1.0 mV/V
Protection Class	IP65
Cable	Φ0.8 × 0.3m

Key Features:

Aluminum alloy material

Capacity: 0.5-5kg

Precision: 0.03%R.O.

Protection class: IP65

Rated Output: 0.8-1.0 mV/V

Usage & Applications:

Jewelry scale

Dimension:

Specification:

Rated Capacities	0.5kg; 1,2,3,5 (kg)
Rated Output	0.8±0.15 mV/V 1.0 mV/V
Zero Balance	±0.1mV/V
Non-linearity	0.03 %R.O.
Hysteresis	0.03 %R.O.
Repeatability	0.03 %R.O.
30mins Creep	0.03 %R.O.
30mins Return	0.03 %R.O.
Safe Overload	150 %R.O.
Ultimate Overload	200 %R.O.
Temperature Effect On Output	0.01%R.O./℃
Temperature Effect On Zero	0.05 %R.O./℃
Input Impedance	1115±10% Ω
Output Impedance	1000±10% Ω
Insulation Impedance	≥2000 MΩ/(50VDC)
Recommended Excitation	5~12 VDC
Maximum Excitation	15 VDC
OperatingTemperatureRange	-20~60 ℃
Construction	Aluminum Alloy
Protection Class	IP65
Cable	Φ0.8×0.3m
Recommended Platform Size
Mode of Connection	Red(EXC+),Black(EXC-),Green(SIG+),White(SIG-)
