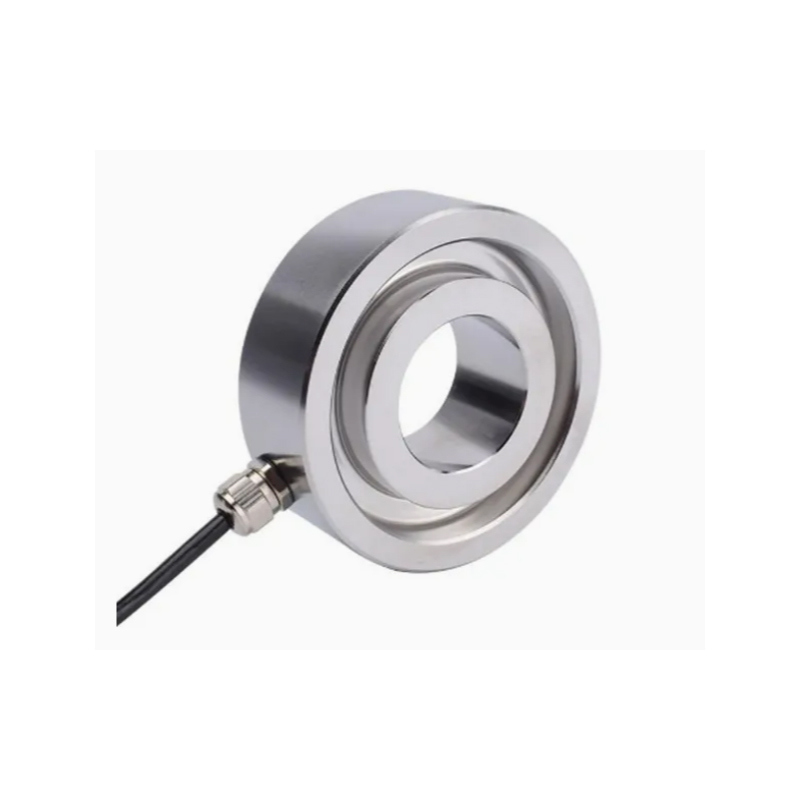

Factory Industrial Wheel Shape Donut Compression Thru-Hole Load Cell

Descriptions
10~200kN Stainless Steel Or Customized Force Sensor  is a model of our brand RUIJIASeries, Force Sensor  can be used to measure force 10~200kN or customized capacity, its material we use Stainless steel, we can also customized material.

Force Sensor  Sensitivity is 1.5±10%mV/V, the Zero Balance is ±0.03mV/V.
Force Sensor  creep(30min) ≤0.1%F.S.. The non-linearity ≤0.1%F.S.. Hysteresis ≤0.05%F.S.. Repeatablity ≤0.05%F.S..
Force Sensor  Input impedance is 780±20Ω, the output impedance is 700±10Ω.
Force Sensor  Temp.effect on output is 0.05%F.S./10ºC, Temp.effect on zero is 0.05%F.S./10ºC.
Force Sensor  Insulation Resistance ≥5000MΩ/100V(DV).
Force Sensor  Recommended Excitation is 5-15V, the Maximum Excitation is 20V.
Force Sensor  Compensated Temp Range is -10~60ºC, the Operating Temp Range is -20~80ºC.
Force Sensor  safe overload is 150%F.S.. The ultimate overload is 200%F.S..
The cable size is ∅4*3000mm.
The weight is 1kg or customized
