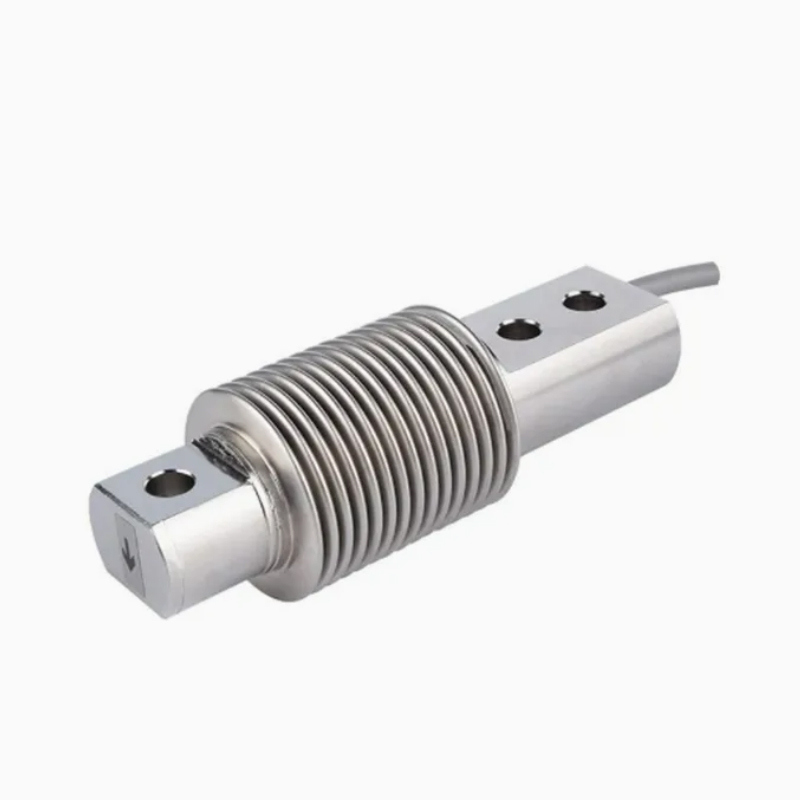

Capacity
|
10,20,50,100,200,500kg
|
|
Rated output
|
2.0±0.02mV/V
|
|
Zero Balance
|
±0.02mV/V
|
|
Creep(30min)
|
≤0.0166%F.S.
|
|
Non-linearity
|
≤0.018%F.S.
|
|
Hysteresis
|
≤0.017%F.S.
|
|
Repeatability
|
≤0.018%F.S.
|
|
Input resistance
|
390±5Ω
|
|
Output resistance
|
350±5Ω
|
|
Temp.effect on output
|
0.008%F.S./10 ºC
|
|
Temp.effect on zero
|
0.0125%F.S./10 ºC
|
|
Insulation resistance
|
≥5000MΩ/100V(DC)
|
|
Recommended excitation
|
5~15V
|
|
Maximum excitation
|
20V
|
|
Compensated temp range
|
-10~40 ºC
|
|
Operating temp range
|
-30~70 ºC
|
|
Safe load limit
|
150%F.S.
|
|
Breaking load
|
200%F.S.
|
|
Cable size
|
5.4*1500mm
|
|
Material
|
Stainless steel
|
Packaging & Shipping
Company Profile
Ruijia is a technical service enterprise specializing in force measurement technology research, product R & D, production, sales and service. It is mainly engaged in micro force sensors, high-precision load cells, S-type sensors, cantilever sensors, multi-dimensional force sensors, tension sensors, transmitters R & D and production of control instruments and provide system engineering control solutions. The company has modern and spacious workshops, high-quality production and testing equipment, professional R & D team and perfect management system to provide reasonable and practical solutions for our customers. With years of understanding and understanding in the field of automation, the company has always adhered to the enterprise operation concept of "user first", built a professional team in the field of automation, and provided customers with stable quality products and pre-sales and after-sales technical services. We always adhere to the tenet of independent innovation, only good products and scientific management, and always adhere to providing perfect products and system solutions, which is highly respected in our field; Constantly change and provide customers with excellent value-added services.
Service standards: we are committed to provide a high quality and responsive service to all clients
The fastest reply: Please feel free to contact us if you have any questions. You will get a reply from the professional and experienced trade manager within 24 hours. If our trade manager is off line, please leave a message, and tell us the product model you need and your E-mail address.
Quality assurance: good quality is assured by advanced manufacturing technology. And all products are through strict test by our professional QC team before shipping.
Door to door service: We usually send the parcel by DHL, EMS and TNT etc. The tracking number will be sent to you after delivery. It usually takes 3--5 working days to reach from from our side to your side, which is very convenient for your business
OEM available
FAQ
Q:What are the applications of bridge type load cell?
A: Weighbridge scale, truck scale, etc.
Q:What is the raw material?
A: Alloy steel
Q: What is the load range?
A: 1kg-100kg 0.1T-100T
Q: What is the accuracy/precision?
A: C3 0.02%
Q: What is the IP production rate?
A: IP66, IP68
Q: What is the load range?
A: 10-40T
Q: What is the weighbridge complete weighing system?
A: Load cells+junction box+GSI201-P truck scale weighing indicator with printer+GSI409 big display screen
