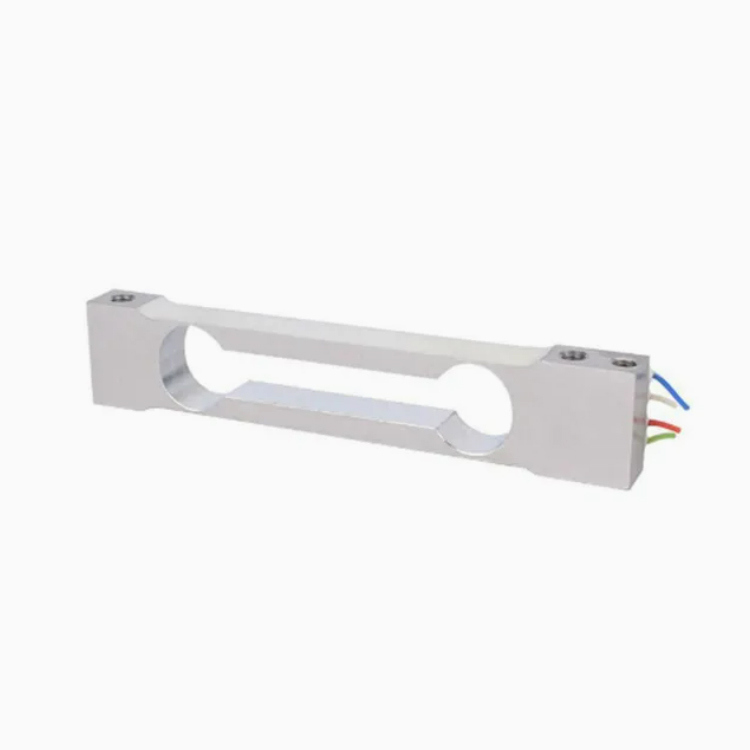

100g/200g Parallel Beam Weighing Sensor Aluminium Alloy Single Point Load Cell
The single point load cell works by converting the weight carried or the force applied to it into a signal. When a load is applied to a single point load cell, the resistance changes, resulting in a change in output voltage. Single point load cells are used alone in small to medium sized scales.
| Product name |
Single Point Weight Sensor |
| Capacity |
100g,200g |
| Rated output |
0.9±0.1mV/V |
| Zero Balance |
±0.05mV/V |
| Creep(30min) |
≤0.0166%F.S. |
| Non-linearity |
≤0.015%F.S. |
| Hysteresis |
≤0.015%F.S. |
| Repeatability |
≤0.015%F.S. |
| Input impedance |
405±20Ω |
| Output impedance |
350±10Ω |
| Temp.effect on output |
0.02%F.S./10 ºC |
| Temp.effect on zero |
0.03%F.S./10 ºC |
| Insulation resistance |
≥5000MΩ/100V(DC) |
| Recommended excitation |
5~15V |
| Maximum excitation |
20V |
| Compensated Temp Range |
-10~40 ºC |
| Operating Temp Range |
-10~50 ºC |
| Safe overload |
150%F.S. |
| Ultimate overload |
200%F.S. |
| Cable size |
diameter 1x100mm |
| Material |
Aluminium alloy |
| Max.paltform size |
50mmx50mm |
