Stainless Steel Load Cell Miniature Compression 0.1-30t Force Sensor

Product Details:

Place of Origin:	CHINA
Brand Name:	RUIJIA
Certification:	CE/ROHS
Model Number:	Rj

Detail Information

Place of Origin:

CHINA

Brand Name:

RUIJIA

Certification:

CE/ROHS

Model Number:

Capacity:

20~1000kg

Reted Output:

2.0±10%mV/V

Zero Balance:

±1%F.S.

Creep(30min):

≤0.03%F.S.

Highlight:

High Light

Highlight:

Miniature Compression Stainless Steel Load Cell

30t Stainless Steel Load Cell

Trading Information

Minimum Order Quantity:

Price:

$92-100

Packaging Details:

Wooden crate or cardboard box

Delivery Time:

5-15 work days

Payment Terms:

,L/C,D/A,D/P,T/T,Western Union,

Supply Ability:

2000pc/month

Product Description

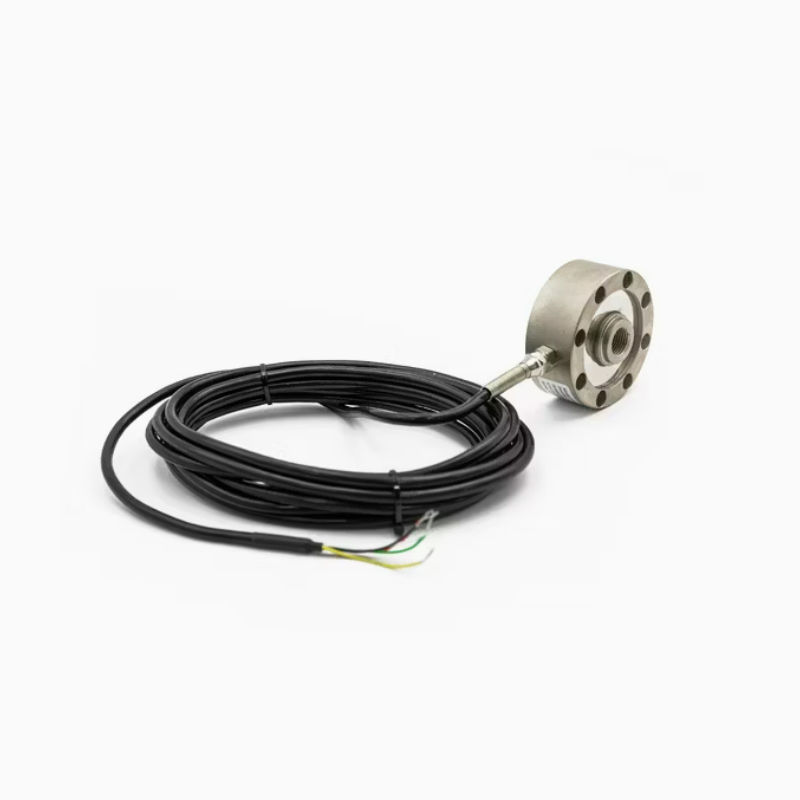

Stainless Steel Load Cell Miniature Compression 0.1-30t Force Sensor

Spoke pressure transducers are widely used in hopper scales, vehicle scales, rail scales and other electronic scales to do force analysis and measurement in various industrial weighing systems .

Spoke pressure sensor product features
1. Spoke type pressure sensor adopts imported foil strain gauge and elastic element to form the sensitive element;
2. The structure is compact and sturdy, easy to install, good stability;
3. Adopt the design of cut-off frequency interference, strong anti-interference ability; high sensitivity, accurate measurement;
4. Using cross shear beam structure, with good natural linearity;
5. Strong anti-bias load capability, high precision, low profile height, easy and stable installation.

Specifications	Technique
Capacity	20~1000kg
Reted output	2.0±10%mV/V
Zero Balance	±1%F.S.
Creep(30min)	≤0.03%F.S.
Non-linearity	≤0.05%F.S.
Hysteresis	≤0.05%F.S.
Repeatability	≤0.03%F.S.
Input impedance	780±20Ω
Output impedance	700±10Ω
Temp.effect on output	0.05%F.S./10 C
Temp.effect on zero	0.05%F.S./10 C
Insulation resistance	≥5000MΩ/100V(DC)
Recommended excitation	10V
Maximum excitation	15V
Compensated Temp Range	-10~40ºC
Operating Temp Range	-20~70 ºC
Safe overload	150%F.S.
Ultimate overload	200%F.S.
Cable size	6x5000mm
Material	>50kg=Alloy steel 50kg=Aluminium alloy
