Load Cell Sensor
>
Hot Sale Scale Load Cell Weighing Cell Weighbridge Sensor Double Shear Beam Pressure Sensor Analog Sensor 30t

Hot Sale Scale Load Cell Weighing Cell Weighbridge Sensor Double Shear Beam Pressure Sensor Analog Sensor 30t

Product Details:
Place of Origin: CHINA
Brand Name: RUIJIA
Certification: CE
Model Number: RQSA
Detail Information
Place of Origin:
CHINA
Brand Name:
RUIJIA
Certification:
CE
Model Number:
RQSA
Theory:
Resistance Sensor
Output:
Analog Sensor
Type:
Double Ended Shear Beam
Sensitivity:
2.0 ± 0.002mv/V
Non-linearity:
± 0.02% F.S.
Creep (30 Min):
± 0.02% F.S.
Highlight:

High Light

Highlight:

Weighbridge Load Cell Sensor

,

Double Shear Beam Load Cell Sensor

,

30t Load Cell Sensor

Trading Information
Minimum Order Quantity:
1
Price:
USD80~160/piece
Packaging Details:
Standard export packaging
Delivery Time:
Within 2Weeks
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
2000 Piece/Pieces per Month
Product Description

Hot Sale Scale Load Cell Weighing Cell Weighbridge Sensor Double Shear Beam Pressure Sensor Analog Sensor 30t

Hot Sale Scale Load Cell Weighing Cell Weighbridge Sensor Double Shear Beam Pressure Sensor Analog Sensor 30t 0

Emax(Max. capacity)
t
5/10/20/25/30/40/50
Sensitivity
mV/V
2.0±0.002
Accuracy class

C2
C3
Maximum number of verification intervals
nmax
2000
3000
Minimum load cell verification interval
vmin
Emax/5000
Emax/10000
Combined error
%F.S
≤±0.030
≤±0.020
Creep
%F.S/30min
≤±0.024
≤±0.016
Temperature effect on sensitivity
%F.S/10℃
≤±0.017
≤±0.011
Temperature effect on zero
%F.S/10℃
≤±0.023
≤±0.015
Zero balance
%F.S
±1.0
Input resistance
Ω
750±10
Output resistance
Ω
702±3
Service temperature range
-30...+70
Safe overload
%F.S
150
Ultimate overload
%F.S
250
Recommended excitation voltage
v
5...15
Insulation resistance
MΩ/50V
>5000
Protection class

IP67/IP68
Load cell material

Alloy steel;Stainless steel
Cable Size
m
12

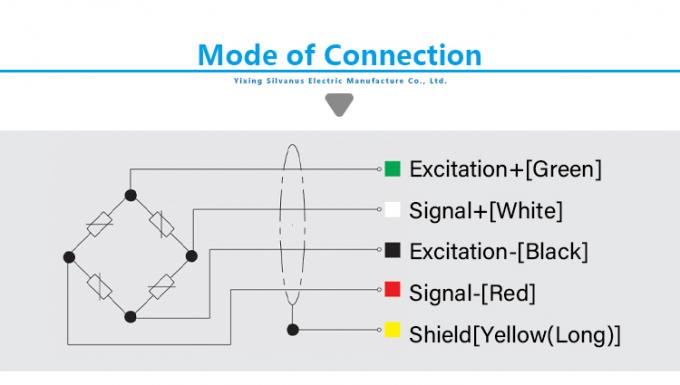

Wiring
Exc+[Green];Exc-[Black];Sig+[White];Sig-[Red];Shield[Yellow]

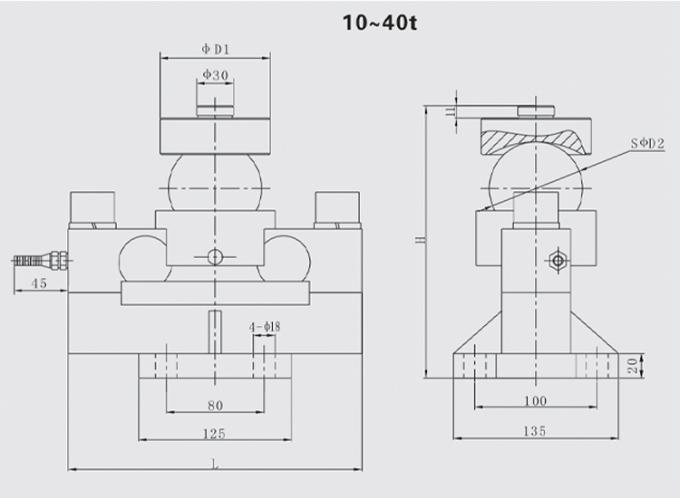

Hot Sale Scale Load Cell Weighing Cell Weighbridge Sensor Double Shear Beam Pressure Sensor Analog Sensor 30t 1

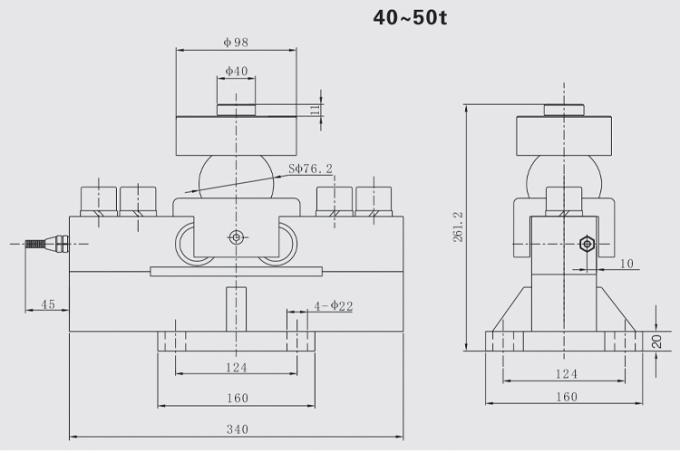

Hot Sale Scale Load Cell Weighing Cell Weighbridge Sensor Double Shear Beam Pressure Sensor Analog Sensor 30t 2
Hot Sale Scale Load Cell Weighing Cell Weighbridge Sensor Double Shear Beam Pressure Sensor Analog Sensor 30t 3

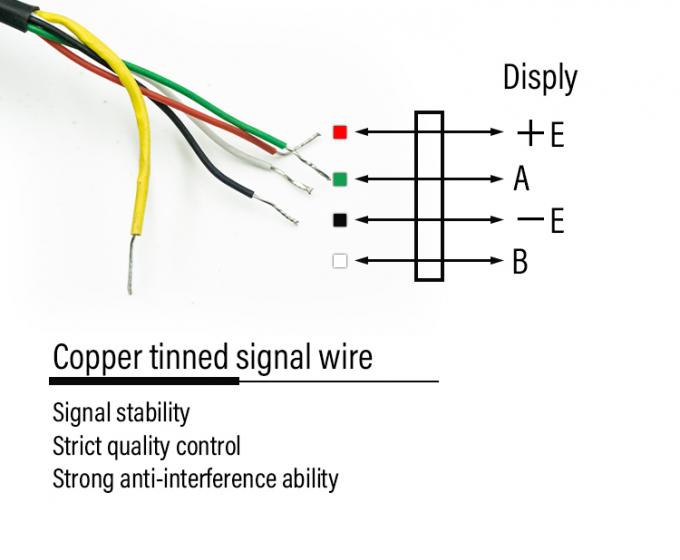

Hot Sale Scale Load Cell Weighing Cell Weighbridge Sensor Double Shear Beam Pressure Sensor Analog Sensor 30t 4

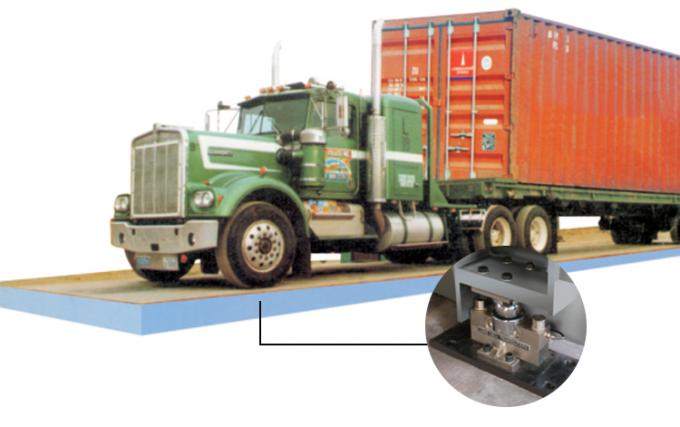

Hot Sale Scale Load Cell Weighing Cell Weighbridge Sensor Double Shear Beam Pressure Sensor Analog Sensor 30t 5
Packing & Transport
Hot Sale Scale Load Cell Weighing Cell Weighbridge Sensor Double Shear Beam Pressure Sensor Analog Sensor 30t 6
