Single Point Load Cell
>
Rujia CE Certificate Alloy Steel Load Cell 0.3kg 0.5kg 1kg 1.5kg 2kg 3kg 4kg 5kg Miniature Single Point Load Cell

Rujia CE Certificate Alloy Steel Load Cell 0.3kg 0.5kg 1kg 1.5kg 2kg 3kg 4kg 5kg Miniature Single Point Load Cell

Product Details:
Place of Origin: CHINA
Brand Name: RUIJIA
Certification: CE
Model Number: RJ502
Detail Information
Place of Origin:
CHINA
Brand Name:
RUIJIA
Certification:
CE
Model Number:
RJ502
Features:
Small Size
Mounting Type:
Fixed Mounting
Description:
Strong Adaptability
Theory:
Resistance Strain Gauge
Capacity:
200,300,600g,1,1.5,2,3,4,5kg
Sensitivity:
0.8±15%mV/V 2.0±20%mV/V
Highlight:

High Light

Highlight:

1kg Single Point Load Cell

,

2kg Single Point Load Cell

,

0.3kg Single Point Load Cell

Trading Information
Minimum Order Quantity:
1
Price:
USD18 ~31/piece
Packaging Details:
Standard export packaging
Delivery Time:
Within 2 Weeks
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, MoneyGram
Supply Ability:
2000 Piece/Pieces per Month
Product Description

Rujia CE Certificate Alloy Steel Load Cell 0.3kg 0.5kg 1kg 1.5kg 2kg 3kg 4kg 5kg Miniature Single Point Load Cell

Product Information

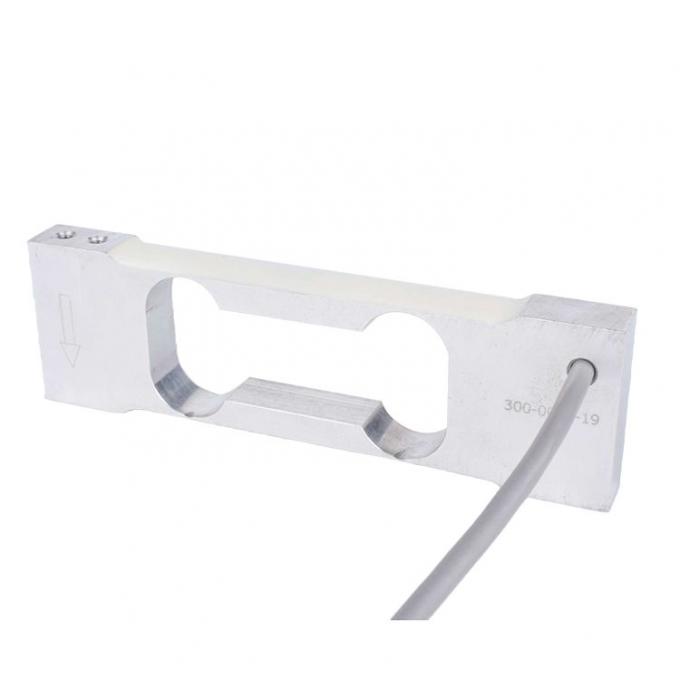

Rujia CE Certificate Alloy Steel Load Cell 0.3kg 0.5kg 1kg 1.5kg 2kg 3kg 4kg 5kg Miniature Single Point Load Cell 0

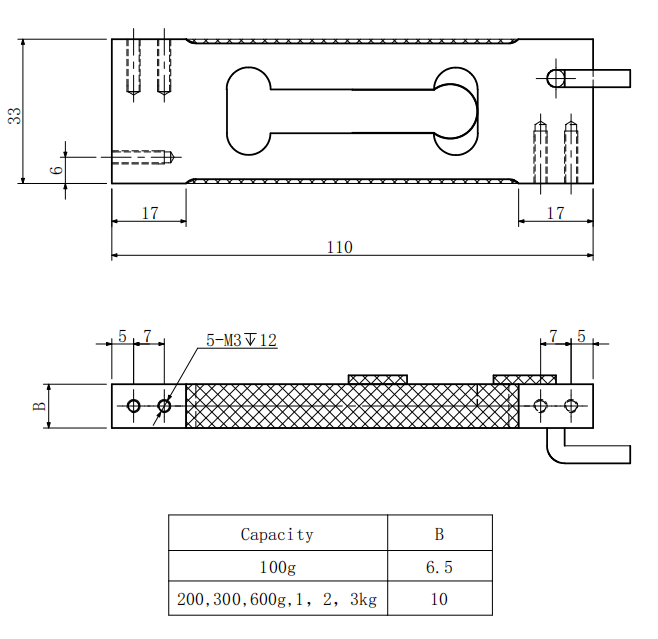

Rujia CE Certificate Alloy Steel Load Cell 0.3kg 0.5kg 1kg 1.5kg 2kg 3kg 4kg 5kg Miniature Single Point Load Cell 1
Model Number
RJ502
Capacity
80,150,200,300,600g,1,2,3kg
Sensitivity
0.8±15%mV/V
2.0±20%mV/V
Zero Balance
±0.02mV/V
Creep
0.02%F.S.
Non-linearity
0.02%F.S.
Hysteresis
0.02%F.S.
Repeatability
0.02%F.S.
Input Impedance
410±15Ω
Output Impedance
350±5Ω
Temp. effect on output
0.02%F.S./10℃
Temp. effect on zero
0.03%F.S./10℃
Wiring
Red: EXC+, Green: Sig+, Yellow: Shielding wire, White: Sig-, Black: EXC
Insulation Resistance
≥5000MΩ/100V(DC)
Recommended Excitation
5~12VDC
Max Excitation
15VDC
Compensated Temp Range
-10~40℃
Operating Temp Range
-20~60℃
Safe Overload
150%F.S.
Ultimate Overload
200%F.S.
Cable Size
φ3x0.25m
Maximum size of the scale
200x200mm
Maximum size of the scale(80g)
40mmX40mm
Weight
0.1kg
Material
Aluminium alloy
Feature & Application
The characteristics of weighing sensors mainly include:
1. High precision: The weighing sensor can provide very high measurement accuracy, which is very important for situations that require precise control.
2. Good stability: Due to its excellent design and manufacturing process, the weighing sensor has excellent long-term stability and is not easily affected by external conditions.
3. High reliability: They are designed to be sturdy and durable, able to withstand long-term continuous work and extreme conditions.
4. Strong anti-interference ability: The weighing sensor has a strong ability to suppress external electromagnetic interference, and can maintain accurate measurement even in complex environments.
5. Simple structure: The design of the weighing sensor is compact, occupies less space, and is easy to install and maintain.
6. Small size: Their small size makes them very suitable for portable devices and narrow spaces.
7. Lightweight: The weight of the weighing sensor is relatively light, which helps reduce the overall burden on the equipment.
8. Strong adaptability: Different types of weighing sensors include but are not limited to:
Electronic scales (such as electronic car scales, electronic platform scales, etc.)
Industrial control field
Online control
Install overload alarm
Material testing machine
Smart home devices (such as IoT weighing)
