5kN Dynamic Response Piezoelectric Force Sensor
Product Description

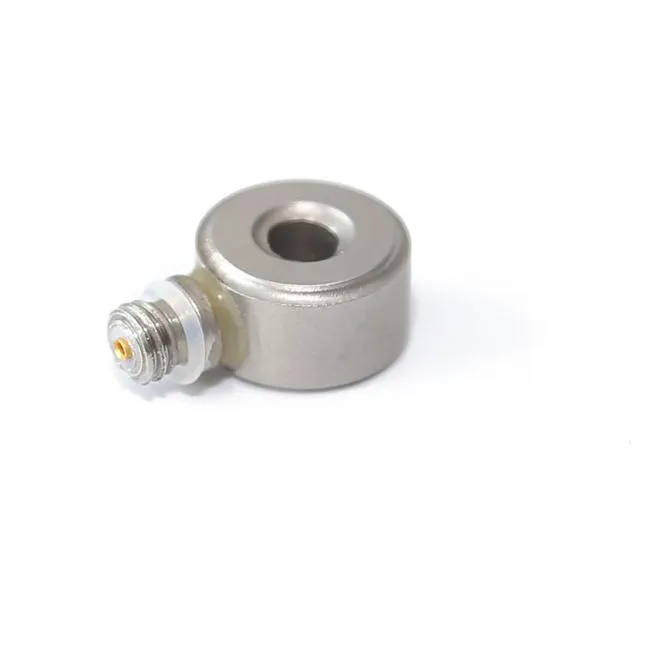

Ring Structure Piezoelectric Force Sensor
A cutting-edge force sensor designed for dynamic measurement response and static calibration. This ring structure sensor eliminates the need for power, as it operates with a charged amplifier. Made from durable stainless steel material, it offers a capacity of 0-5kN and features a thru hole φ4 installation for easy setup. With a charged sensitivity of approximately 4pC/N and a resonant frequency exceeding 75kHz, this sensor is ideal for precise and efficient force measurement applications. Upgrade your measurement capabilities with the Ring Structure Piezoelectric Force Sensor.
Detailed Photos
Product Parameters
| Static Parameters |
|
| Charged sensitivity(20±5ºC) |
~4pC/N |
| Measurement range |
0~5kN |
| Overload capacity |
120 % |
| Linearity |
≤1%F·S |
| Hysteresis |
≤1%F·S |
| Repeatability |
≤1%F·S |
| Capacitance |
~6.8pF |
| Insulation resistance |
>1013Ω |
| Dynamic Parameters |
|
| Resonant frequency |
>75kHz |
| Operating Temp. range |
-54~+120 ºC |
| Physical Parameters |
| Weight |
4 g |
| Housing material |
Stainless steel |
| Installation |
Thru hole φ4 |
| Sensitive material |
Quartz |
| Output method |
Side L5 |
| Attachment |
|
| Connection cable |
Double-ended L5 low-noise cable x 2m |
Xi'an Ruijia Measuring Instruments Co., Ltd. is a manufacturer of force sensors and related products, dedicated to providing high-quality solutions for various industries. With a commitment to innovation, reliability, and precision, we have established ourselves as a trusted partner for businesses worldwide.
Founded in 2005, we have accumulated years of experience in the field of weighing technology, enabling us to deliver products tailored to our customers' needs. Our product range includes a comprehensive selection of load cells, weighing modules, controllers, systems, and software solutions. We offer a diverse array of weighing products suitable for industrial automation, logistics, transportation, healthcare, retail, and more.
At Xi'an Ruijia Measuring Instruments Co., Ltd., we pride ourselves on our technological expertise and dedication to continuous improvement. Our team of skilled engineers is committed to developing innovative solutions that push the boundaries of weighing technology, ensuring our products meet the highest standards of performance and accuracy. We serve a global clientele, catering to diverse market sectors across the globe. Our products are utilized by businesses of all sizes, from small enterprises to multinational corporations, in both domestic and international markets.
Quality is at the core of everything we do. We adhere to stringent quality control measures throughout the manufacturing process to ensure that our products meet or exceed industry standards. Our commitment to quality has earned us a reputation for reliability and excellence among our customers. Besides, customer satisfaction is our top priority. We offer comprehensive customer service and support, including technical consultation, pre-sales assistance, and after-sales service, to ensure a seamless experience for our clients.
With a focus on innovation, quality, and customer satisfaction, Xi'an Ruijia Measuring Instruments Co., Ltd. is your trusted partner for all your weighing sensor needs. Contact us today!
Our Advantages
FAQ
Q1:How do you control the quality?
A:We have QC team comply with TQM,each step is in compliance to the standards.At the same time,they will take photos and shoot video for you.
Q2: Can you print our brand on the product?
A: Yes, Of course. It can make customer's brand logo.
Q3: What is the payment terms?
A: T/T,L/C,etc.
Q4: How long is your warranty period?
A: Our warranty period is 12 months.
