Ring Type Force Sensor 3t 5t Thru Hole Load Cell Button Cell
|
Features
Washer type load cell ring force sensor FA167 is designed for compression force measurement application. The donut force sensor offers 3t, 5t different measuring ranges to choose from. The annular force transducer has many ranges, so it has a wide range of applications.
- Compact structure
- High precision
- Strong resistance to partial load
Applications
- Bolt loading
- Automatic assembly
- Polishing force monitoring
|
 |
Please contact Us for products details and catalog
|

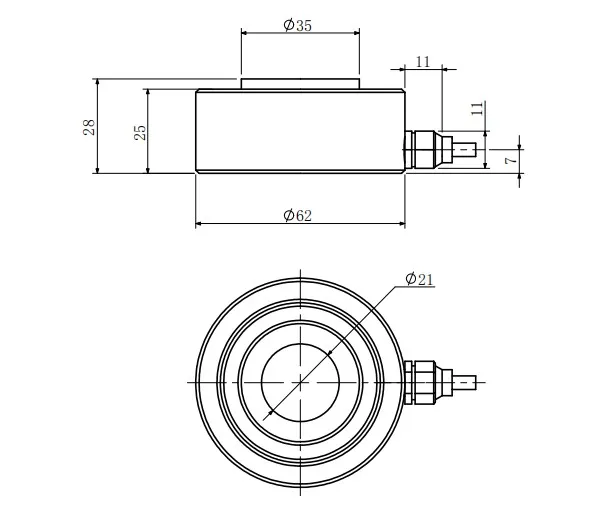

Specifications
|
Technique
|
Specifications
|
Technique
|
|
Capacity
|
3t,5t |
Insulation
|
≥5000MΩ/100VDC
|
|
Rated output
|
1.5±10%mV/V
|
Recommended excitation
|
5~12V
|
|
Zero balance
|
±2%mV/V
|
Maximum excitation
|
15V
|
|
Non-linearity
|
≤0.2%F.S.
|
Compensated temp range
|
-10~60ºC
|
|
Hysteresis
|
≤0.05%F.S.
|
Operation temp range
|
-20~80ºC
|
|
Repeatability
|
≤0.1%F.S.
|
Safe overload
|
150%F.S.
|
|
Temp.effect on output
|
0.02%F.S./10ºC
|
Ultimate overload
|
300%F.S.
|
|
Temp.effect on zero
|
0.02%F.S./10ºC
|
Cable size
|
3m
|
|
Input impedance
|
780±20Ω
|
Material
|
Stainless Steel |
|
Output impedance
|
700±10Ω
|
|
|
|
Xi'an Ruijia Measuring Instruments Co., Ltd. is a manufacturer of force sensors and related products, dedicated to providing high-quality solutions for various industries. With a commitment to innovation, reliability, and precision, we have established ourselves as a trusted partner for businesses worldwide.
Founded in 2005, we have accumulated years of experience in the field of weighing technology, enabling us to deliver products tailored to our customers' needs. Our product range includes a comprehensive selection of load cells, weighing modules, controllers, systems, and software solutions. We offer a diverse array of weighing products suitable for industrial automation, logistics, transportation, healthcare, retail, and more.
At Xi'an Ruijia Measuring Instruments Co., Ltd., we pride ourselves on our technological expertise and dedication to continuous improvement. Our team of skilled engineers is committed to developing innovative solutions that push the boundaries of weighing technology, ensuring our products meet the highest standards of performance and accuracy. We serve a global clientele, catering to diverse market sectors across the globe. Our products are utilized by businesses of all sizes, from small enterprises to multinational corporations, in both domestic and international markets.
Quality is at the core of everything we do. We adhere to stringent quality control measures throughout the manufacturing process to ensure that our products meet or exceed industry standards. Our commitment to quality has earned us a reputation for reliability and excellence among our customers. Besides, customer satisfaction is our top priority. We offer comprehensive customer service and support, including technical consultation, pre-sales assistance, and after-sales service, to ensure a seamless experience for our clients.
With a focus on innovation, quality, and customer satisfaction, Xi'an Ruijia Measuring Instruments Co., Ltd. is your trusted partner for all your weighing sensor needs. Contact us today!
Our Advantages
FAQ
Q1:How do you control the quality?
A:We have QC team comply with TQM,each step is in compliance to the standards.At the same time,they will take photos and shoot video for you.
Q2: Can you print our brand on the product?
A: Yes, Of course. It can make customer's brand logo.
Q3: What is the payment terms?
A: T/T,L/C,etc.
Q4: How long is your warranty period?
A: Our warranty period is 12 months.
