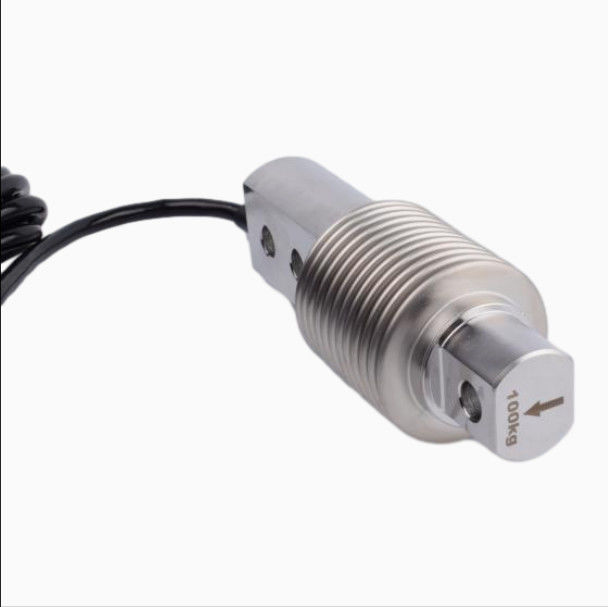

0-500kg Bellow Beam Weighing Load Cell C3 Stainless Steel Force Sensor
Appicable for Scales, Bench Scales, Floor Scales, Hopper and Container Weighing, Parts Counting, Packaging Scales, Check Weighing, OEM Products, Retail Scales, Conveyor Scales, Manufacturing Process, Low Cost Applications, and Medical Scales
Specification
|
Capacity
|
10,20,50,100,200,500kg
|
|
Rated output
|
2.0±0.02mV/V
|
|
Zero Balance
|
±0.02mV/V
|
|
Creep(30min)
|
≤0.0166%F.S.
|
|
Non-linearity
|
≤0.018%F.S.
|
|
Hysteresis
|
≤0.017%F.S.
|
|
Repeatability
|
≤0.018%F.S.
|
|
Input resistance
|
390±5Ω
|
|
Output resistance
|
350±5Ω
|
|
Temp.effect on output
|
0.008%F.S./10 ºC
|
|
Temp.effect on zero
|
0.0125%F.S./10 ºC
|
|
Insulation resistance
|
≥5000MΩ/100V(DC)
|
|
Recommended excitation
|
5~15V
|
|
Maximum excitation
|
20V
|
|
Compensated temp range
|
-10~40 ºC
|
|
Operating temp range
|
-30~70 ºC
|
|
Safe load limit
|
150%F.S.
|
|
Breaking load
|
200%F.S.
|
|
Cable size
|
5.4*1500mm
|
|
Material
|
Stainless steel
|
