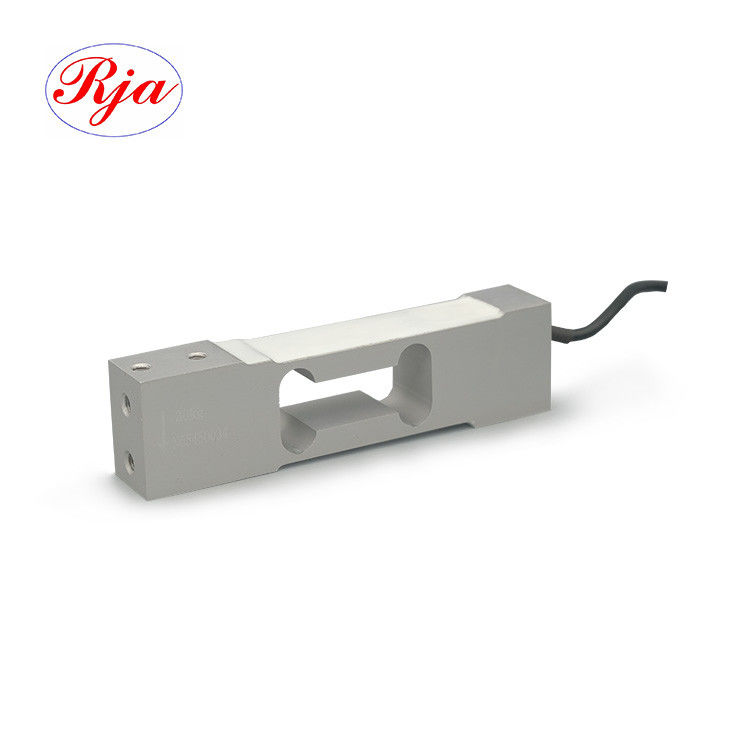

Single Point Load Cell
>
High Precision Load Cells For Packaging Scales

High Precision Load Cells For Packaging Scales

Product Details:
Place of Origin: Shannxi, China
Brand Name: Ruijia
Model Number: RJ-6545
Detail Information
Place of Origin:
Shannxi, China
Brand Name:
Ruijia
Model Number:
RJ-6545
Usage:
Weighing
Theory:
Strain Gauge Deformation
Capacity:
5/8/10/15/20/30/40/50/100 Kg
Sensitivity:
2.0±0.2 MV/V
Accuracy:
±0.02
Creep(5min):
±0.02 %FS
Input Resistance:
406±20 Ω
Output Resistance:
350±5 Ω
Temperature Effects On Span:
±0.017 %FS/10℃
Temperature Effect On Zero:
±0.017 %FS/10℃
Material:
Aluminum Alloy
High Light:

High Light

High Light:

High Precision Load Cells

,

Packaging Scales Load Cells

Trading Information
Minimum Order Quantity:
1pc
Price:
USD 8/piece
Packaging Details:
Standard export packaging
Delivery Time:
Within 2-4 Weeks
Payment Terms:
T/T, L/C
Supply Ability:
10000 Piece/Pieces per Month
Product Description

High Precision Load Cells For Packaging Scales 0





Dimension



High Precision Load Cells For Packaging Scales 1




Technical Parameter



Capacity Kg 5/8/10/15/20/30/40/50/100
Sensitivity mV/V 2.0±0.2
Accuracy

±0.02

Creep(15min) %FS ±0.02
Input Resistance Ω 406±20
Output Resistance Ω 350±5
Insulation Resistance M Ω ≥5000(100VDC)
Zero Balance %FS ±1
Temperature Effects on Span %FS/10℃ ±0.017
Temperature Effect on Zero %FS/10℃ ±0.017
Rated Temperature Range -10~+60
Operating Temperature Range -20~+80
Proposed Excitation Voltage V 5~12
Allowed Excitation Voltage V 18
Safe Overload %FS 120
Ultimate Overload %FS 150
Protection   IP65
Cable specification mm Ф5
Cable length m 3
Material   Aluminum Alloy




















































Application

High Precision Load Cells For Packaging Scales 2




Production Process

High Precision Load Cells For Packaging Scales 3




Company Profile

High Precision Load Cells For Packaging Scales 4

Xi'an Ruijia Measuring Instruments Co., Ltd. is a manufacturer of force sensors and related products, dedicated to providing high-quality solutions for various industries. With a commitment to innovation, reliability, and precision, we have established ourselves as a trusted partner for businesses worldwide.



Founded in 2005, we have accumulated years of experience in the field of weighing technology, enabling us to deliver products tailored to our customers' needs. Our product range includes a comprehensive selection of load cells, weighing modules, controllers, systems, and software solutions. We offer a diverse array of weighing products suitable for industrial automation, logistics, transportation, healthcare, retail, and more.



At Xi'an Ruijia Measuring Instruments Co., Ltd., we pride ourselves on our technological expertise and dedication to continuous improvement. Our team of skilled engineers is committed to developing innovative solutions that push the boundaries of weighing technology, ensuring our products meet the highest standards of performance and accuracy. We serve a global clientele, catering to diverse market sectors across the globe. Our products are utilized by businesses of all sizes, from small enterprises to multinational corporations, in both domestic and international markets.



Quality is at the core of everything we do. We adhere to stringent quality control measures throughout the manufacturing process to ensure that our products meet or exceed industry standards. Our commitment to quality has earned us a reputation for reliability and excellence among our customers. Besides, customer satisfaction is our top priority. We offer comprehensive customer service and support, including technical consultation, pre-sales assistance, and after-sales service, to ensure a seamless experience for our clients.



With a focus on innovation, quality, and customer satisfaction, Xi'an Ruijia Measuring Instruments Co., Ltd. is your trusted partner for all your weighing sensor needs. Contact us today!


Package & Shipment

High Precision Load Cells For Packaging Scales 5
High Precision Load Cells For Packaging Scales 6
