Spoke Type Load Cell
>

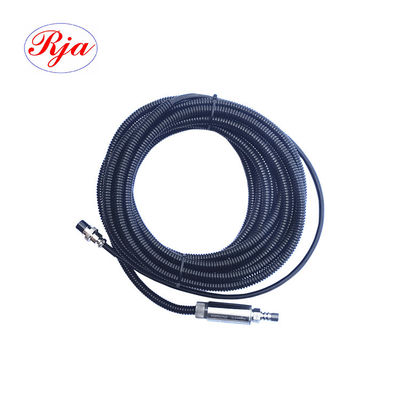

Split Structure Pressure Transducers For Industrial And Civil Pressure Measurement Field

Split Structure Pressure Transducers For Industrial And Civil Pressure Measurement Field

Product Details:
Place of Origin: China
Brand Name: Ruijia
Model Number: PT-M10
Detail Information
Place of Origin:
China
Brand Name:
Ruijia
Model Number:
PT-M10
Rated Capacity:
5/10/20/30 T
Accuracy Class:
±0.1 %F.S.
Zero Balance:
±1 %F.S.
Insulation Resistance:
≥5000MΩ
Operating Temperature:
-20℃~+80℃
Compensated Temperature:
-10℃~+60℃
Safe Overload:
120 %F.S.
Ultimate Overload:
150 %F.S.
High Light:

High Light

High Light:

Split Structure Pressure Transducers

,

Industrial Civil Pressure Transducers

,

Mechanical Pressure Transmitter

Trading Information
Price:
USD 150/piece
Payment Terms:
T/T, L/C
Product Description

Product Description:



A pressure transmitter is a mechanical device that measures the expansive force of a liquid or gaseous sample. Also known as a pressure transducer, this type of sensor is typically composed of a pressure sensitive surface area made of steel, silicon, or other materials depending upon the analyte's composition. This is a split stainless steel product IP67 protection. We offer a variety of mounting thread and electrical connection for customers to choose.



Applications:



Hydraulic power units: electronically measuring pressure in power units

Automotive: monitoring brake and fuel pressure in automobiles

Oil and gas: sensing oil or gas liquid levels for pump stations

Medical: monitoring liquid and gas levels

Dimensions:



Split Structure Pressure Transducers For Industrial And Civil Pressure Measurement Field 0

Paremeters:



Range MPa 40
Sensitivity mV/V 1.5±0.15
Combined error %FS 0.1
Linearity %FS 0.1
Hysteresis %FS 0.1
Repeatability %FS 0.1
Input resistance Ω 375±30
Output resistance Ω 350±10
Insulation resistance M Ω ≥5000(100VDC)
Zero offset %FS ±3
Temperature effect on span %FS/10℃ 0.02
Temperature effect on zero %FS/10℃ 0.017
Rated temperature range -10~+90
Operating temperature range -20~+125
Proposed excitation voltage V 6~12
Thread   M10X1
Safe overload %FS 150
Ultimate overload %FS 200
Electrical Connection GX16-5芯 E+:1 E-:2 S-:3 S+:4
Protection   IP67









































































Packing and Shipping:

Split Structure Pressure Transducers For Industrial And Civil Pressure Measurement Field 1

FAQ:

1. What detailed information do I need to provide if I want to place an order?
We need to know the following information: Capacity, Usage and other related parameters you need.

2.Do you accept customized?
Yes, we have different customers make their own OEM products. So we can make products as per your requirement.

3. When will you arrange the production?
We will arrange the production immediately after receiving your payment.

4. Can I get some samples before place order and how long for a sample?
Yes, but customer needs to pay for the samples and freoght. The laed time for samples is about 7 days up on got payment.

5. Do you have any discount?
To clients who bring repeat orders and large orders. Please contact us for better quote.
