Spoke Type Load Cell
>

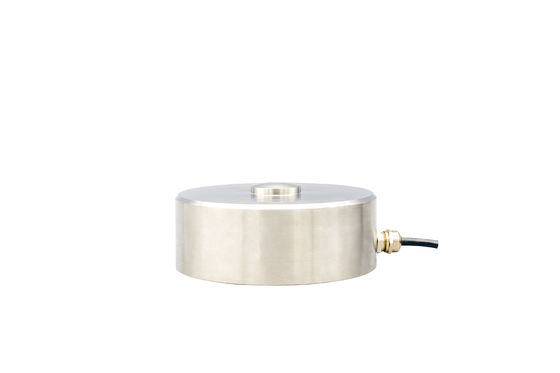

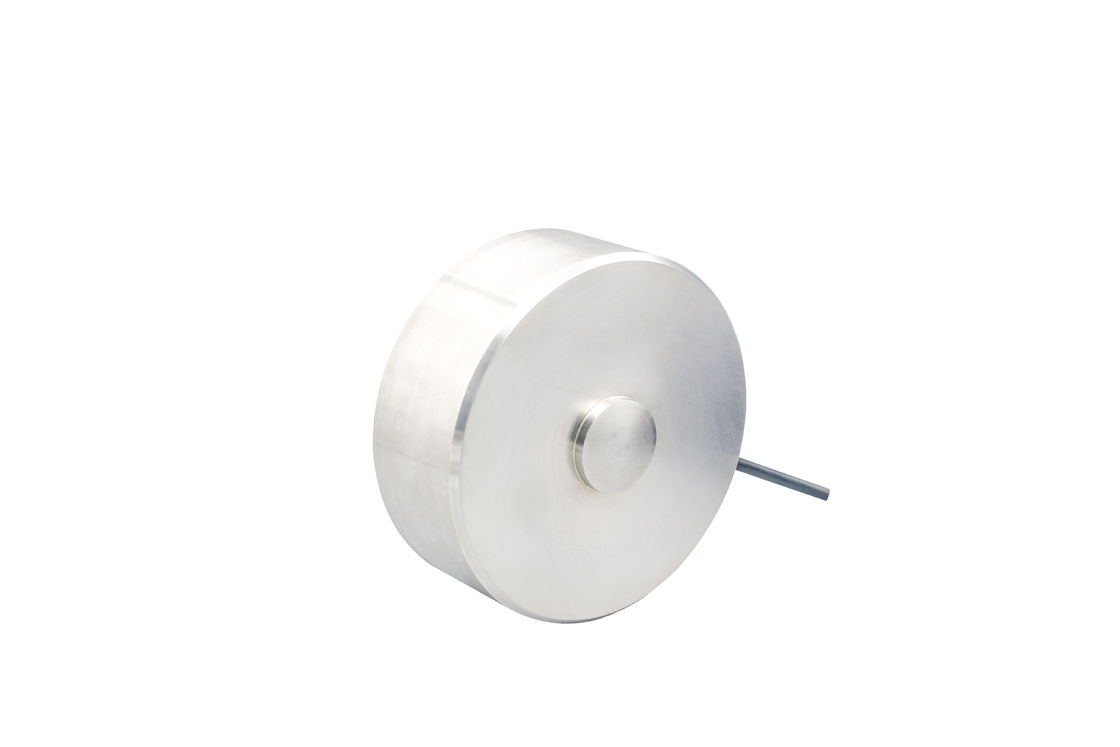

0 - 30ton Compression Load Cell Stainless Steel Force Sensor

0 - 30ton Compression Load Cell Stainless Steel Force Sensor

Product Details:
Place of Origin: China
Brand Name: Ruijia
Model Number: RJ-8680
Detail Information
Place of Origin:
China
Brand Name:
Ruijia
Model Number:
RJ-8680
Rated Capacity:
5/10/20/30 T
Accuracy Class:
±0.1 %F.S.
Zero Balance:
±1 %F.S.
Insulation Resistance:
≥5000MΩ
Operating Temperature:
-20℃~+80℃
Compensated Temperature:
-10℃~+60℃
Safe Overload:
120 %F.S.
Ultimate Overload:
150 %F.S.
High Light:

High Light

High Light:

Stainless Steel Compression Load Cell

,

30ton Compression Load Cell

,

30ton Stainless Steel Load Cell

Trading Information
Price:
USD 150/piece
Payment Terms:
T/T, L/C
Product Description

Product Description:



Stainless Steel Compression Load Cells utilize metal foil strain gauge technology to measure compression/pressure in both static and dynamic situations. Compression load cell RJ-8680 offers 0-5ton / 0-10ton / 0-15 ton / 0-20ton / 0-25 ton / 0-30ton various rated measuring ranges to choose from. It can be used in injection molding machines, presses, load distribution analysis, tool pressure control, and so on. Custom made service is available if you cannot find a suitable product for your application.



Dimensions:



0 - 30ton Compression Load Cell Stainless Steel Force Sensor 0

Paremeters:



Capacity t 5/10/20/30
Sensitivity mV/V 1.5±0.2
Accuracy %FS

≤±0.1

Creep(15min) %FS ≤±0.02
Input Resistance Ω 760±30
Output Resistance Ω 700±10
Insulation Resistance M Ω ≥5000(100VDC)
Zero Balance %FS ≤±1
Temperature Effects on Span %FS/10℃ ≤0.05
Temperature Effect on Zero %FS/10℃ ≤0.05
Rated Temperature Range -10~+60
Operating Temperature Range -20~+80
Proposed Excitation Voltage V 6~12
Allowed Excitation Voltage V 18
Safe Overload %FS 120
Ultimate Overload %FS 150
Protection   IP67
Cable specification mm Ф5
Cable length m 2
Material   Stainless steel Material









































































Applications:



0 - 30ton Compression Load Cell Stainless Steel Force Sensor 1

Packing and Shipping:

0 - 30ton Compression Load Cell Stainless Steel Force Sensor 2

FAQ:

1. What detailed information do I need to provide if I want to place an order?
We need to know the following information: Capacity, Usage and other related parameters you need.

2.Do you accept customized?
Yes, we have different customers make their own OEM products. So we can make products as per your requirement.

3. When will you arrange the production?
We will arrange the production immediately after receiving your payment.

4. Can I get some samples before place order and how long for a sample?
Yes, but customer needs to pay for the samples and freoght. The laed time for samples is about 7 days up on got payment.

5. Do you have any discount?
To clients who bring repeat orders and large orders. Please contact us for better quote.
