Spoke Type Load Cell
>

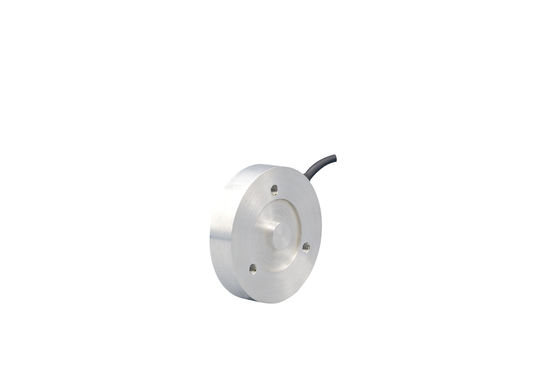

Aluminium Low Profile Spoke Type Load Cell For Scale 10 - 50 Kg

Aluminium Low Profile Spoke Type Load Cell For Scale 10 - 50 Kg

Product Details:
Place of Origin: China
Brand Name: Ruijia
Model Number: RJ-6621
Detail Information
Place of Origin:
China
Brand Name:
Ruijia
Model Number:
RJ-6621
Rated Capacity:
10~50 Kg
Accuracy Class:
±0.1 %F.S.
Zero Balance:
±1 %F.S.
Insulation Resistance:
≥5000MΩ
Operating Temperature:
-20℃~+80℃
Compensated Temperature:
-10℃~+60℃
Safe Overload:
120 %F.S.
Ultimate Overload:
150 %F.S.
High Light:

High Light

High Light:

Aluminium Spoke Type Load Cell

,

Low Profile Spoke Type Load Cell

,

50 Kg Pancake Load Cell

Trading Information
Price:
USD 30/piece
Payment Terms:
T/T, L/C
Product Description

Product Description:

The spoke load cell (also known as pancake load cell) is a small-sized, high-accuracy, tensile or compressive load cell with eccentric load capacity. It is widely used in electronics, tensile testing, shock testing, tank and silo level monitoring, and other industrial weighing systems.



Features:

  • Product Name: Spoke Type Load Cell
  • Input Resistance: 750±30Ω
  • Protection Class: IP65
  • Compensated Temperature: -10℃~+60℃
  • Temperature Effect on Zero: ±0.05 %F.S./10℃
  • Insulation Resistance: ≥5000MΩ
  • Available as tension load cell and compression load cell
  • High accuracy Strain Gauge Load Cells


Dimensions:



Aluminium Low Profile Spoke Type Load Cell For Scale 10 - 50 Kg 0

Paremeters:



Capacity Kg 10/20/50
Sensitivity mV/V 1.5±0.2
Accuracy %FS

≤±0.1

Creep(15min) %FS ≤±0.02
Input Resistance Ω 370±30
Output Resistance Ω 350±10
Insulation Resistance M Ω ≥5000(100VDC)
Zero Balance %FS ≤±1
Temperature Effects on Span %FS/10℃ ≤0.05
Temperature Effect on Zero %FS/10℃ ≤0.05
Rated Temperature Range -10~+60
Operating Temperature Range -20~+80
Proposed Excitation Voltage V 6~12
Allowed Excitation Voltage V 18
Safe Overload %FS 120
Ultimate Overload %FS 150
Protection   IP65
Cable specification mm Ф3
Cable length m 1
Material   Aluminum Alloy











































































Packing and Shipping:

Aluminium Low Profile Spoke Type Load Cell For Scale 10 - 50 Kg 1

FAQ:

1. What detailed information do I need to provide if I want to place an order?
We need to know the following information: Capacity, Usage and other related parameters you need.

2.Do you accept customized?
Yes, we have different customers make their own OEM products. So we can make products as per your requirement.

3. When will you arrange the production?
We will arrange the production immediately after receiving your payment.

4. Can I get some samples before place order and how long for a sample?
Yes, but customer needs to pay for the samples and freoght. The laed time for samples is about 7 days up on got payment.

5. Do you have any discount?
To clients who bring repeat orders and large orders. Please contact us for better quote.
