Single Point Load Cell
>

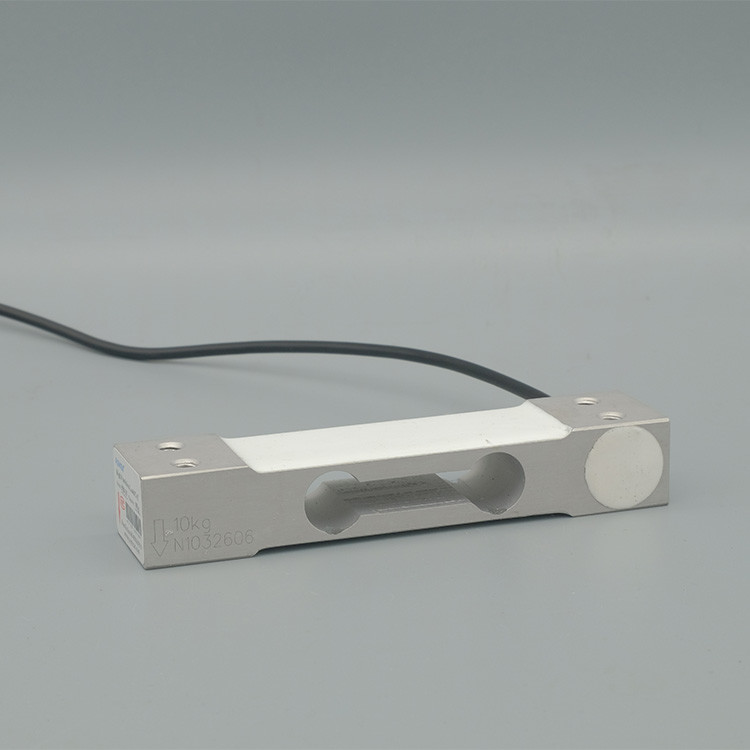

6V - 12V Single Point Weight Sensor Industrial Weighing Systems 200%FS Safe Overload

6V - 12V Single Point Weight Sensor Industrial Weighing Systems 200%FS Safe Overload

Product Details:
Place of Origin: China
Brand Name: Ruijia
Model Number: RJ-6530
Detail Information
Place of Origin:
China
Brand Name:
Ruijia
Model Number:
RJ-6530
Ultimate Overload:
200%FS
Product Name:
Single Point Load Cell
Accuracy:
±0.02
Input Resistance:
406 ± 20Ω
Output Resistance:
350 ± 5Ω
Output:
2mV/V
Temperature Effect On Output:
±0.02%FS/10℃
Excitation Voltage:
6V-12V
High Light:

High Light

High Light:

6V Single Point Weight Sensor

,

200%FS Single Point Weighing Scale Sensor

,

Aluminum Alloy Single Point Weight Sensor

Product Description

Product Description:

Single Point Load Cell

Single Point Load Cell is a weight or force sensor, a highly reliable and accurate weighing component used in various industries for measuring force and weight. It is designed to provide precise and accurate measurements with an excitation voltage of 6V to 12V, temperature effect on output of 0.02%FS/10℃, zero balance at ±1%FS, compensated temperature range of -10℃ to +60℃, and a safe overload of 150%FS.

The Single Point Load Cell is widely used in a variety of applications such as industrial weighing systems, packaging machines, food processing, and other areas where precise force and weight readings are needed. Its rugged construction and high accuracy make it an ideal choice for these applications.

The Single Point Load Cell is easy to install and maintain, and can be integrated with existing systems for efficient performance. It is also highly resistant to shock and vibration, making it suitable for use in even the harshest environments. With its reliable performance, the Single Point Load Cell is the perfect solution for any weight or force measurement needs.



Features:

  • Single Point Load Cell
  • Single Point Weighing Component
  • Single Point Weight Sensor
  • Insulation Resistance: ≥5000MΩ
  • Output Resistance: 350 ± 5Ω
  • Temperature Effect on Output: ±0.02%FS/10℃
  • Excitation Voltage: 6V-12V


Dimensions:

6V - 12V Single Point Weight Sensor Industrial Weighing Systems 200%FS Safe Overload 0

Parameters:



Capacity Kg 3/5/8/10/15/20/30/45/50/100/150
Sensitivity mV/V 2.0±0.2
Accuracy

≤±0.02

Creep(15min) %FS ≤±0.02
Input Resistance Ω 406±20
Output Resistance Ω 350±5
Insulation Resistance M Ω ≥5000(100VDC)
Zero Balance %FS ≤±1
Temperature Effects on Span %FS/10℃ ≤0.02
Temperature Effect on Zero %FS/10℃ ≤0.02
Rated Temperature Range -10~+60
Operating Temperature Range -20~+80
Proposed Excitation Voltage V 6~12
Allowed Excitation Voltage V 18
Safe Overload %FS 120
Ultimate Overload %FS 150
Protection   IP65
Cable specification mm Ф4
Cable length m 0.4
Material   Aluminum Alloy







































































Applications:

Ruijia RJ-6530 Single Point Load Cell is a single point weighing component and weight sensor that is perfect for precise weighing applications. It is designed for capacity of 3-150 Kg with a temperature effect on output of ±0.02% FS/10℃ and accuracy of ±0.02. With a zero balance of ±1% FS and an input resistance of 406 ± 20Ω, the Ruijia RJ-6530 Single Point Load Cell is ideal for a variety of single point weighing applications. It is widely used in industrial manufacturing, medical, and agricultural applications. The Ruijia RJ-6530 Single Point Load Cell is ideal for providing accurate and reliable measurements for single point weighing applications.



Customization:

Ruijia Single Point Load Cell RJ-6530 is a single point weighing component, single point force sensor, and single point weight sensor. It is designed to measure the force of a single point and provide output through a 2mV/V signal. The excitation voltage of this product is 6V-12V. It has a ±1%FS zero balance and the operating temperature range is from -20℃ to +80℃.
