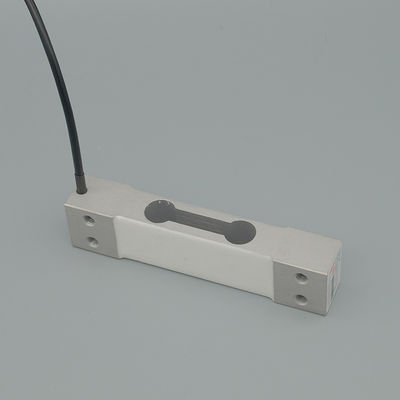

The Single Point Load Cell is a reliable and accurate single point force sensor that is designed to measure force with high accuracy and repeatability. It has a wide range of features, including: an accuracy of ±0.02, an input resistance of 406 ± 20Ω, a compensated temperature range of -10 ℃ ~ +60 ℃, an operating temperature range of -20 ℃ ~ +80 ℃, and a safe overload of 150%FS. This single point force sensor is perfect for a variety of applications such as weight measurement, force measurement, and load cell measurement. The Single Point Load Cell is designed to be compact and durable, making it ideal for a variety of applications.
Capacity | Kg | 3/5/8/10/15/20/30/45/50/100/150 |
Sensitivity | mV/V | 2.0±0.2 |
Accuracy |
≤±0.02 |
|
Creep(15min) | %FS | ≤±0.02 |
Input Resistance | Ω | 406±20 |
Output Resistance | Ω | 350±5 |
Insulation Resistance | M Ω | ≥5000(100VDC) |
Zero Balance | %FS | ≤±1 |
Temperature Effects on Span | %FS/10℃ | ≤0.02 |
Temperature Effect on Zero | %FS/10℃ | ≤0.02 |
Rated Temperature Range | ℃ | -10~+60 |
Operating Temperature Range | ℃ | -20~+80 |
Proposed Excitation Voltage | V | 6~12 |
Allowed Excitation Voltage | V | 18 |
Safe Overload | %FS | 120 |
Ultimate Overload | %FS | 150 |
Protection | IP65 | |
Cable specification | mm | Ф4 |
Cable length | m | 0.4 |
Material | Aluminum Alloy |
Ruijia(RJ-6530)Single Point Load Cell is an ideal solution for measuring static and dynamic force in a wide range of applications. It is a single point force sensor with a high accuracy of 2mV/V output, a safe overload of 150%FS, an operating temperature of -20℃~+80℃, a compensated temperature of -10℃~+60℃ and an insulation resistance of ≥5000MΩ. The single point force sensor is designed for use in a variety of fields, including transportation, weighing, engineering, medical and industrial automation. It can also be used in a single point weight sensor to measure static and dynamic force in a wide variety of applications, such as industrial weighing, process control and other force measurement applications.
Our team of experienced engineers and technicians are available to provide technical support and services for our Single Point Load Cell products. We offer assistance with installation, calibration, troubleshooting, maintenance, and repairs.
Our team also provides consulting services to assess and recommend the best possible solutions for your specific application.
We are committed to providing the highest quality of technical support and service to ensure that your Single Point Load Cell products are working properly and efficiently.
The single point load cell is packaged in a sturdy cardboard box with an internal foam insert to ensure the safe transport and handling of the product. The box is labeled with the product name, model number, and barcode. It is then sealed with adhesive tape for extra protection.
The single point load cell is shipped through a reliable carrier such as UPS or FedEx. The customer will receive a tracking number for their shipment that can be used to easily track the progress of their delivery.
