Spoke Type Load Cell
>

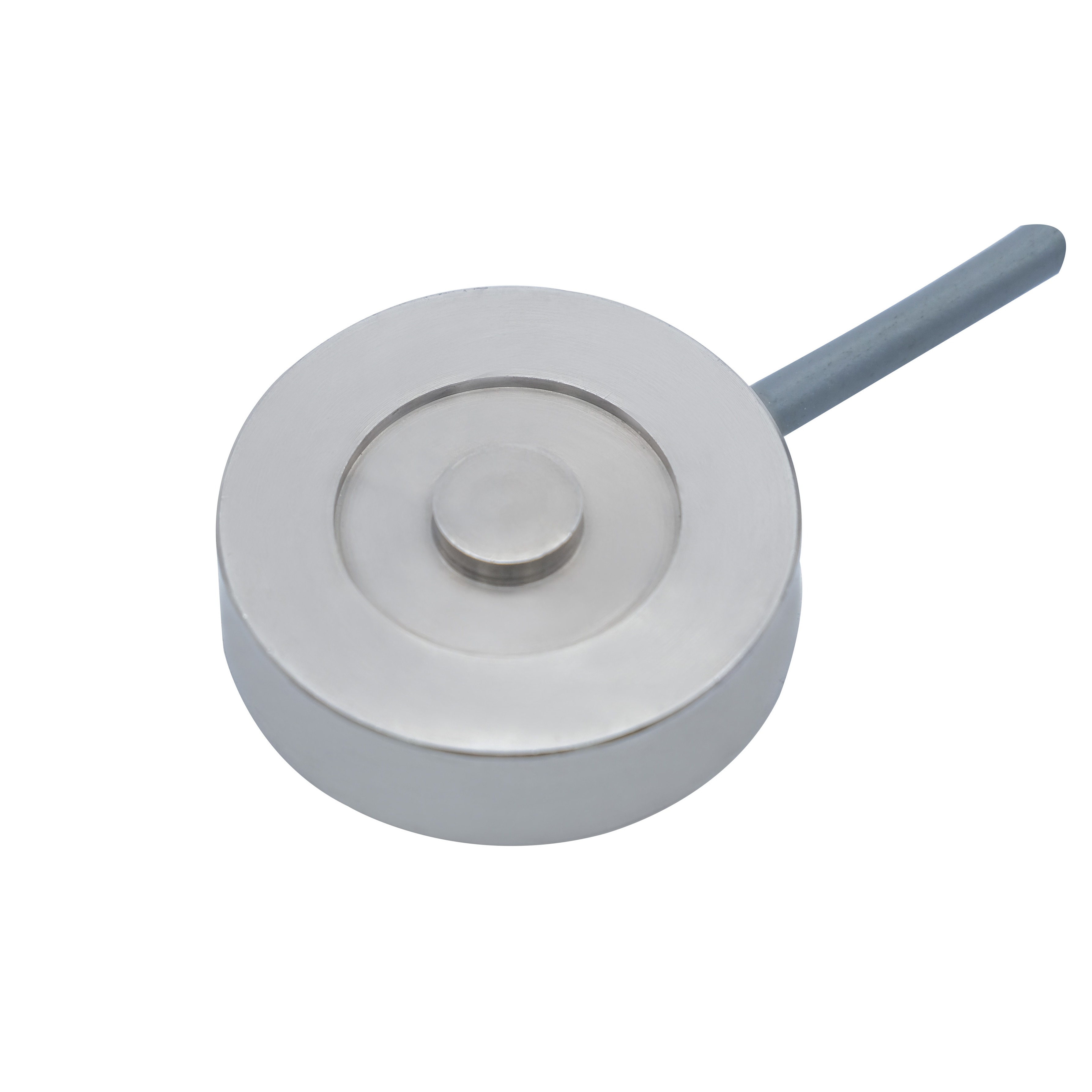

Miniature Strain Gauge Force Sensor Load Cell For Robot Industry 500kg 200kg 50kg

Miniature Strain Gauge Force Sensor Load Cell For Robot Industry 500kg 200kg 50kg

Product Details:
Place of Origin: Shannxi, China
Brand Name: Ruijia
Model Number: RJ-8630
Detail Information
Place of Origin:
Shannxi, China
Brand Name:
Ruijia
Model Number:
RJ-8630
Theory:
Strain Gauge
Capacity:
50/100/200/500 Kg
Sensitivity:
1.5±0.2 MV/V
Accuracy:
±0.1
Creep(5min):
±0.02 %FS
Input Resistance:
370±30 Ω
Output Resistance:
350±10 Ω
Insulation Resistance:
≥5000(100VDC)MΩ
Rated Temperature RangeEffects On Span:
-10~+60 ℃
Operating Temperature Range:
-20~+80 ℃
Material:
Stainless Steel
Protection:
IP67
High Light:

High Light

High Light:

Miniature Strain Gauge Force Sensor

,

500kg Strain Gauge Force Sensor

,

Robot Industry Spoke Type Load Cell

Trading Information
Minimum Order Quantity:
1pc
Price:
USD 30/piece
Packaging Details:
Standard export packaging
Delivery Time:
Within 2-4 Weeks
Payment Terms:
T/T, L/C
Supply Ability:
10000 Piece/Pieces per Month
Product Description

Miniature Strain Gauge Force Sensor Load Cell For Robot Industry 500kg 200kg 50kg 0




Feature



The spoke type load cell, as the name suggests, is like a wheel, and the spokes are symmetrically distributed between the hub and the rim, mostly 4, 6, 8.

  • It has low height and good stability;
  • Strong anti-eccentric load and lateral load capacity;
  • Good linearity and repeatability;
  • Strong overload capacity;
  • The elastic element is a symmetrical overall structure, which has good thermal expansion consistency in all directions and low temperature coefficient; the elastic element structure is convenient for welding and sealing the upper and lower circular diaphragms, and the sealing level can reach IP68.



Dimension

Miniature Strain Gauge Force Sensor Load Cell For Robot Industry 500kg 200kg 50kg 1
































Technical Parameter:



Capacity kg 50/100/200/500
Sensitivity mV/V 1.5±0.2
Accuracy %FS

≤±0.1

Creep(15min) %FS ≤±0.02
Input Resistance Ω 370±30
Output Resistance Ω 350±10
Insulation Resistance M Ω ≥5000(100VDC)
Zero Balance %FS ≤±1
Temperature Effects on Span %FS/10℃ ≤0.05
Temperature Effect on Zero %FS/10℃ ≤0.05
Rated Temperature Range -10~+60
Operating Temperature Range -20~+80
Proposed Excitation Voltage V 6~12
Allowed Excitation Voltage V 18
Safe Overload %FS 120
Ultimate Overload %FS 150
Protection   IP67
Cable specification mm Ф3
Cable length m 2
Material   Stainless steel Material
















































Application

Miniature Strain Gauge Force Sensor Load Cell For Robot Industry 500kg 200kg 50kg 2


























Production Process

Miniature Strain Gauge Force Sensor Load Cell For Robot Industry 500kg 200kg 50kg 3



Company Profile



Xi'an Ruijia Measurement Instrument Co.,Ltd is established in 2005, mainly engaged in the design, production, sales and technical services of force sensors and related electronic products. Our headquarters is located in Xi'an High-tech Zone, Jinye First Road, No. 81, and its branch is located in Hantai District, Hanzhong City, Shaanxi Province.
Miniature Strain Gauge Force Sensor Load Cell For Robot Industry 500kg 200kg 50kg 4

We mainly undertake high-precision load cells for aluminum and steel parts with ranges from 1kg to 50t, and pressure sensors with range from 1Mpa to 200Mpa. We have independently developed a series of electronic balance load cells, which can meet the requirements of 2kg, 3kg, 5kg. The products have been well received by many customers at home and abroad, and have been awarded the honorary title of Xi'an High-tech Enterprise. The self-developed oil well drilling, fracturing and cementing pressure sensors not only have independent and independent intellectual property rights, but also have received strong support from National Fund. The products have reached similar technical standards in Europe and the United. Our company also develops OEM products according to the special requirements of customers, and it is our aim to meet all the requirements of customers.
Through years of development, our company has its own complete set of system in technology and management. Our products are of high quality, many varieties and specifications, and strong matching. Most of our products are exported to overseas markets and have long gone to the praise and trust of our customers.
