Single Point Load Cell
>

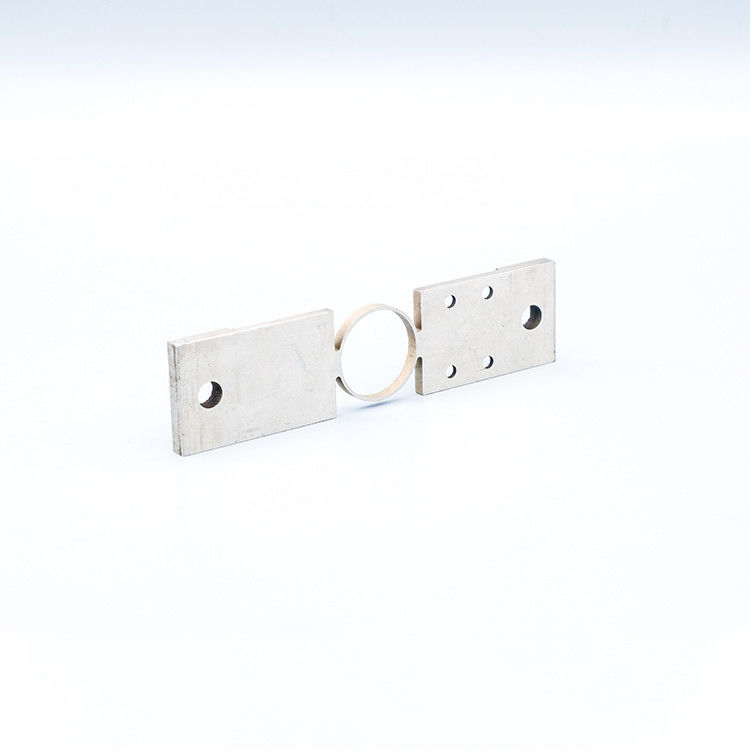

Plate Ring Type Force Measuring Load Cell High Precision Alloy Steel Sensor Weighs Large Range

Plate Ring Type Force Measuring Load Cell High Precision Alloy Steel Sensor Weighs Large Range

Product Details:
Place of Origin: China
Brand Name: ruijia
Model Number: RJ-9220
Detail Information
Place of Origin:
China
Brand Name:
ruijia
Model Number:
RJ-9220
Capacity:
50 Kg
Sensitivity:
2.0 MV/V
Accuracy:
±0.2 %FS
Creep:
≤±0.05 %FS(15min)
Insulation Resistance:
≥5000 MΩ(100VDC)
Output Resistance:
350±5 Ω
Operating Temperature Range:
-10~+60 ℃
Proposed Excitation Voltage:
5-12 V
Cable:
φ1, 1m
Safe Overload:
150%FS
Ultimate Overload:
200%FS
Protection Class:
IP65
High Light:

High Light

High Light:

Plate Ring Force Measuring Load Cell

,

IP65 Load Cell Weight Sensor

,

Force Measuring Load Cell 50kg

Trading Information
Minimum Order Quantity:
1pc
Price:
USD50/pc
Packaging Details:
Standard export packaging
Delivery Time:
2-4 weeks
Payment Terms:
L/C, T/T, Western Union
Supply Ability:
5000 Piece/Pieces per Month
Product Description

Plate Ring Type Force Measuring Load Cell High Precision Alloy Steel Sensor Weighs Large Range 0









































Features



The advantages of tensile force sensors are high accuracy, wide measuring range, long life, simple structure, good frequency response characteristics, can work in harsh conditions, easy to achieve miniaturization, integration and diversification of varieties, etc.. Its disadvantage is that it has a large nonlinearity for large strains, and the output signal is weak, but certain compensation measures can be taken. Therefore it is widely used in automatic test and control technology.



Technical parameters:



Capacity kg

50

Sensitivity mV/V

2.0

Accuracy %FS

±0.2

Creep(15min) %FS ±0.05
Input Resistance Ω 380±10
Output Resistance Ω 350±5
Insulation Resistance M Ω ≥5000(100VDC)
Zero Balance %FS ±2
Temperature Effects on Span %FS/10℃ ±0.05
Temperature Effect on Zero %FS/10℃ ±0.05
Rated Temperature Range -10~+60
Operating Temperature Range -20~+80
Proposed Excitation Voltage V 5~12
Allowed Excitation Voltage V 18
Safe Overload %FS 150
Ultimate Overload %FS 200
Protection   IP65
Cable specification mm Ф1
Cable length m 1
Material   Alloy Steel



















































Dimension



Plate Ring Type Force Measuring Load Cell High Precision Alloy Steel Sensor Weighs Large Range 1































Appliaction

Plate Ring Type Force Measuring Load Cell High Precision Alloy Steel Sensor Weighs Large Range 2

Production



Plate Ring Type Force Measuring Load Cell High Precision Alloy Steel Sensor Weighs Large Range 3

Company Profile

Plate Ring Type Force Measuring Load Cell High Precision Alloy Steel Sensor Weighs Large Range 4Xi'an Ruijia Measurement Instrument Co.,Ltd is established in 2005, mainly engaged in the design, production, sales and technical services of force sensors and related electronic products. Our headquarters is located in Xi'an High-tech Zone, Jinye First Road, No. 81, and its branch is located in Hantai District, Hanzhong City, Shaanxi Province.
We mainly undertake high-precision load cells for aluminum and steel parts with ranges from 1kg to 50t, and pressure sensors with range from 1Mpa to 200Mpa. We have independently developed a series of electronic balance load cells, which can meet the requirements of 2kg, 3kg, 5kg. The products have been well received by many customers at home and abroad, and have been awarded the honorary title of Xi'an High-tech Enterprise. The self-developed oil well drilling, fracturing and cementing pressure sensors not only have independent and independent intellectual property rights, but also have received strong support from National Fund. The products have reached similar technical standards in Europe and the United. Our company also develops OEM products according to the special requirements of customers, and it is our aim to meet all the requirements of customers.
Through years of development, our company has its own complete set of system in technology and management. Our products are of high quality, many varieties and specifications, and strong matching. Most of our products are exported to overseas markets and have long gone to the praise and trust of our customers.
