Single Point Load Cell
>
Ring Type Pull Force Transducer Sensor Plate Type Weighing Sensor

Ring Type Pull Force Transducer Sensor Plate Type Weighing Sensor

Product Details:
Place of Origin: Shannxi, China
Brand Name: Ruijia
Model Number: RJ-8230
Detail Information
Place of Origin:
Shannxi, China
Brand Name:
Ruijia
Model Number:
RJ-8230
Capacity:
2 T
Sensitivity:
2.0±0.2 MV/V
Accuracy:
±0.02
Creep(5min):
±0.05 %FS
Input Resistance:
380±10 Ω
Output Resistance:
350±5 Ω
Temperature Effects On Span:
±0.05 %FS/10℃
Temperature Effect On Zero:
±0.05 %FS/10℃
Material:
Alloy Steel
High Light:

High Light

High Light:

Pull Force Transducer Sensor

,

IP65 Single Point Load Cell

,

Alloy Steel Plate Weighing Tension sensor

Trading Information
Minimum Order Quantity:
1pc
Price:
USD 50/piece
Packaging Details:
Standard export packaging
Delivery Time:
Within 2-4 Weeks
Payment Terms:
T/T, L/C
Supply Ability:
10000 Piece/Pieces per Month
Product Description

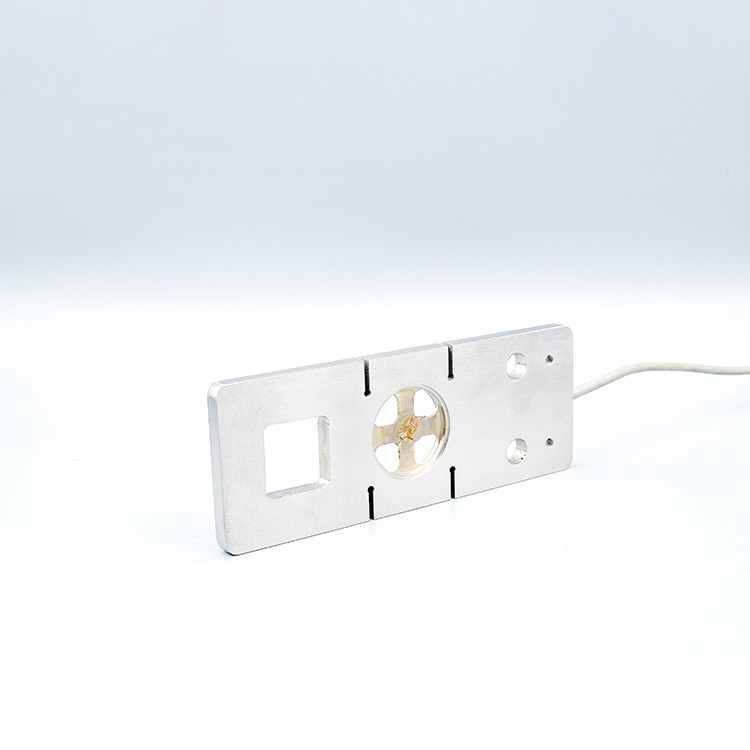

Ring Type Pull Force Transducer Sensor Plate Type Weighing Sensor 0



Description



Tension sensor, also known as resistance strain sensor, belongs to the load cell series. It uses two tension transmission parts to transmit force, and its structure contains force-sensitive devices and two tension transmission parts. The force-sensing devices contain piezoelectric sheets, piezoelectric sheet gaskets, and the latter contains substrate parts and edge force transmission parts. Part, which is characterized in that the two ends of the two tension transmission parts are respectively fixed together, and the force-sensitive device is clamped by the lateral acting surface between the two ends, and the piezoelectric sheet gasket is pressed on the center of the piezoelectric sheet on one side In the area, the substrate part is located between the other side of the piezoelectric sheet and the edge force transmission part and is close to the piezoelectric sheet. One of its uses is to make a hook scale to replace the steelyard.



Dimension

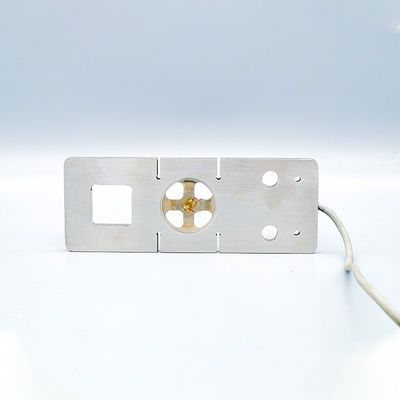

Ring Type Pull Force Transducer Sensor Plate Type Weighing Sensor 1




Technical Parameter

Capacity t

2

Sensitivity mV/V

2.0

Accuracy %FS

±0.2

Creep(15min) %FS ±0.05
Input Resistance Ω 380±10
Output Resistance Ω 350±5
Insulation Resistance M Ω ≥5000(100VDC)
Zero Balance %FS ±2
Temperature Effects on Span %FS/10℃ ±0.05
Temperature Effect on Zero %FS/10℃ ±0.05
Rated Temperature Range -10~+60
Operating Temperature Range -20~+80
Proposed Excitation Voltage V 5~12
Allowed Excitation Voltage V 18
Safe Overload %FS 150
Ultimate Overload %FS 200
Protection   IP65
Cable specification mm Ф5
Cable length m 2
Material   Stainless steel
