| Place of Origin: | Shannxi, China |
|---|---|
| Brand Name: | Ruijia |
| Model Number: | RJ-6545 |
| Minimum Order Quantity: | 1pc |
| Price: | USD 8/piece |
| Packaging Details: | Standard export packaging |
| Delivery Time: | Within 2-4 Weeks |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 Piece/Pieces per Month |
| Usage: | Weighing | Theory: | Strain Gauge Deformation |
|---|---|---|---|
| Capacity: | 5/8/10/15/20/30/40/50/100 Kg | Sensitivity: | 2.0±0.2 MV/V |
| Accuracy: | ±0.02 | Creep（5min): | ±0.02 %FS |
| Input Resistance: | 406±20 Ω | Output Resistance: | 350±5 Ω |
| Temperature Effects On Span: | ±0.017 %FS/10℃ | Temperature Effect On Zero: | ±0.017 %FS/10℃ |
| Material: | Aluminum Alloy | ||
| High Light: | Aluminum Alloy Force Weighing Load Cell,Batching Scale Sensor 100kg,Weighing Platform Force Sensor |
||

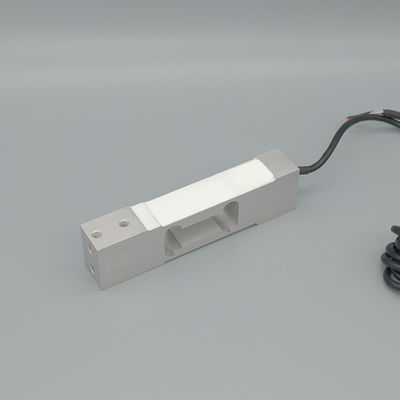

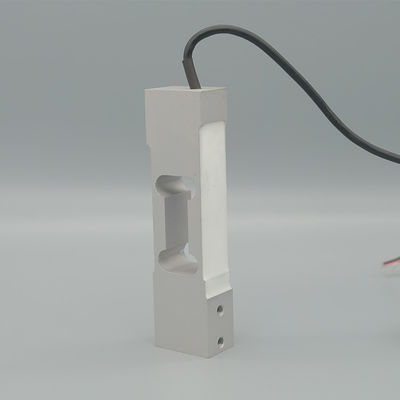

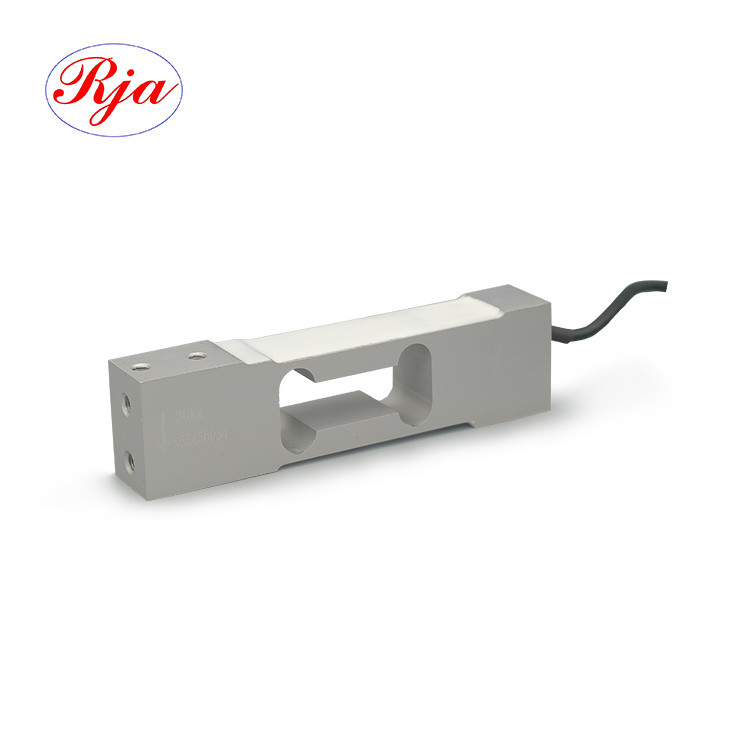

A force sensor is defined as a transducer that converts an input mechanical load, weight, tension, compression or pressure into an electrical output signal (load cell definition). Force Sensors are also commonly known as Force Transducer. There are several types of load cells based on size, geometry and capacity.
| Capacity | Kg | 5/8/10/15/20/30/40/50/100 |
| Sensitivity | mV/V | 2.0±0.2 |
| Accuracy |
±0.02 |
|
| Creep(15min) | %FS | ±0.02 |
| Input Resistance | Ω | 406±20 |
| Output Resistance | Ω | 350±5 |
| Insulation Resistance | M Ω | ≥5000(100VDC) |
| Zero Balance | %FS | ±1 |
| Temperature Effects on Span | %FS/10℃ | ±0.017 |
| Temperature Effect on Zero | %FS/10℃ | ±0.017 |
| Rated Temperature Range | ℃ | -10～+60 |
| Operating Temperature Range | ℃ | -20～+80 |
| Proposed Excitation Voltage | V | 5～12 |
| Allowed Excitation Voltage | V | 18 |
| Safe Overload | %FS | 120 |
| Ultimate Overload | %FS | 150 |
| Protection | IP65 | |
| Cable specification | mm | Ф5 |
| Cable length | m | 3 |
| Material | Aluminum Alloy |
Xi'an Ruijia Measurement Instrument Co.,Ltd is established in 2005, mainly engaged in the design, production, sales and technical services of force sensors and related electronic products. Our headquarters is located in Xi'an High-tech Zone, Jinye First Road, No. 81, and its branch is located in Hantai District, Hanzhong City, Shaanxi Province.
We mainly undertake high-precision load cells for aluminum and steel parts with ranges from 1kg to 50t, and pressure sensors with range from 1Mpa to 200Mpa. We have independently developed a series of electronic balance load cells, which can meet the requirements of 2kg, 3kg, 5kg. The products have been well received by many customers at home and abroad, and have been awarded the honorary title of Xi'an High-tech Enterprise. The self-developed oil well drilling, fracturing and cementing pressure sensors not only have independent and independent intellectual property rights, but also have received strong support from National Fund. The products have reached similar technical standards in Europe and the United. Our company also develops OEM products according to the special requirements of customers, and it is our aim to meet all the requirements of customers.
Through years of development, our company has its own complete set of system in technology and management. Our products are of high quality, many varieties and specifications, and strong matching. Most of our products are exported to overseas markets and have long gone to the praise and trust of our customers.
