Single Point Load Cell
>
300g 600g High Precision Strain Gauge Sensor Electronic Digital Balance Load Cell

300g 600g High Precision Strain Gauge Sensor Electronic Digital Balance Load Cell

Product Details:
Place of Origin: Shannxi, China
Brand Name: Ruijia
Model Number: RJ-6510
Detail Information
Place of Origin:
Shannxi, China
Brand Name:
Ruijia
Model Number:
RJ-6510
Usage:
Weighing
Theory:
Strain Gauge Deformation
Capacity:
0.3/0.6/1.2/1.5/2 Kg
Sensitivity:
1.1±0.2 MV/V
Accuracy:
±0.02
Creep(5min):
±0.01 %FS
Input Resistance:
406±20 Ω
Output Resistance:
350±5 Ω
Temperature Effects On Span:
±0.02 %FS/10℃
Temperature Effect On Zero:
±0.02 %FS/10℃
Material:
Aluminum Alloy
High Light:

High Light

High Light:

600g Strain Gauge Sensor

,

Digital Balance Strain Gauge Sensor

,

Aluminum Alloy Digital Balance Load Cell

Trading Information
Minimum Order Quantity:
1pc
Price:
USD 18/piece
Packaging Details:
Standard export packaging
Delivery Time:
Within 2-4 Weeks
Payment Terms:
T/T, L/C
Supply Ability:
10000 Piece/Pieces per Month
Product Description

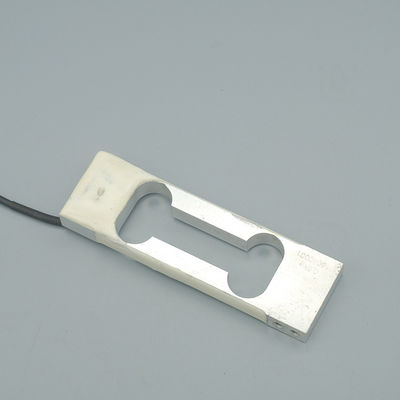

300g 600g High Precision Strain Gauge Sensor Electronic Digital Balance Load Cell 0



Description



Electronic balance generally uses strain gauge, capacitive sensor,

electromagnetic balance sensor, RJ-6510 is a resistance strain gauge,

which has the advantages of wide measurement range, good frequency

response characteristics, simple structure, low price, reliable and stable performance, etc.



The resistive strain gauge load cell consists of 3 main parts as follows:

  1. Resistance strain gauge
  2. Detection circuit
  3. Elastomer



Dimension



300g 600g High Precision Strain Gauge Sensor Electronic Digital Balance Load Cell 1




Technical Parameter





Capacity Kg 0.3/0.6/1.2/1.5/2
Sensitivity mV/V 1.1±0.2
Accuracy %FS

≤±0.02

Creep(15min) %FS ≤±0.01
Input Resistance Ω 406±20
Output Resistance Ω 350±5
Insulation Resistance M Ω ≥5000(100VDC)
Zero Balance %FS ≤±2
Temperature Effects on Span %FS/10℃ ≤0.02
Temperature Effect on Zero %FS/10℃ ≤0.02
Rated Temperature Range -10~+60
Operating Temperature Range -20~+80
Proposed Excitation Voltage V 6~12
Allowed Excitation Voltage V 18
Safe Overload %FS 120
Ultimate Overload %FS 150
Protection   IP65
Cable specification mm Ф3
Cable length m 0.4
Material   Aluminum Alloy




















































Application

300g 600g High Precision Strain Gauge Sensor Electronic Digital Balance Load Cell 2




Production Process

300g 600g High Precision Strain Gauge Sensor Electronic Digital Balance Load Cell 3
