Single Point Load Cell
>

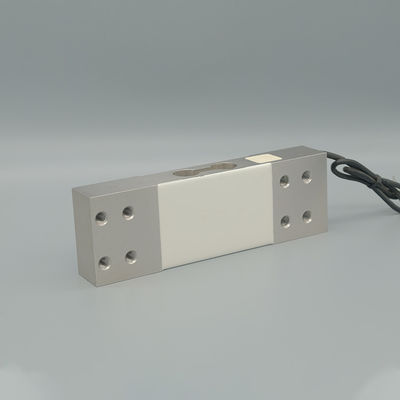

Square Hole Counting Scales Single Point Parallel Beam Load Cells 100kg 200kg 300kg 400kg

Square Hole Counting Scales Single Point Parallel Beam Load Cells 100kg 200kg 300kg 400kg

Product Details:
Place of Origin: Shannxi, China
Brand Name: Ruijia
Model Number: RJ-6551
Detail Information
Place of Origin:
Shannxi, China
Brand Name:
Ruijia
Model Number:
RJ-6551
Usage:
Weighing
Capacity:
100//200/300/400 Kg
Accuracy:
±0.02
Creep(5min):
±0.02 %FS
Output Resistance:
350±5 Ω
Insulation Resistance:
≥5000 MΩ(100VDC)
Temperature Effect On Zero:
±0.02 %FS/10℃
Operating Temperature Range:
-20~+80 ℃
Material:
Aluminum Alloy
Cable Specification:
Ф5, 2m
High Light:

High Light

High Light:

Parallel Beam Load Cells 200kg

,

Aluminum Alloy Square Hole Scale Sensor

,

300kg Single Point Beam Load Cells

Trading Information
Minimum Order Quantity:
1pc
Price:
USD 8/piece
Packaging Details:
Standard export packaging
Delivery Time:
Within 2-4 Weeks
Payment Terms:
T/T, L/C
Supply Ability:
10000 Piece/Pieces per Month
Product Description

Square Hole Counting Scales Single Point Parallel Beam Load Cells 100kg 200kg 300kg 400kg 0


Feature



1. Sensor elastomer made of aluminum alloy; surface anodized

2. White glue seal, precise four-corner correction, easy calibration;

3. Widely used in electronic price scales, weight scales, counting scales and other large table electronic scales, packaging machinery and equipment



Dimension


Square Hole Counting Scales Single Point Parallel Beam Load Cells 100kg 200kg 300kg 400kg 1



















































Technical Parameter:



Capacity Kg 100//200/300/400
Sensitivity mV/V 2.0±0.2
Accuracy

±0.02

Creep(15min) %FS ±0.02
Input Resistance Ω 406±20
Output Resistance Ω 350±5
Insulation Resistance M Ω ≥5000(100VDC)
Zero Balance %FS ±1
Temperature Effects on Span %FS/10℃ ±0.02
Temperature Effect on Zero %FS/10℃ ±0.02
Rated Temperature Range -10~+60
Operating Temperature Range -20~+80
Proposed Excitation Voltage V 5~12
Allowed Excitation Voltage V 18
Safe Overload %FS 120
Ultimate Overload %FS 150
Protection   IP65
Cable specification mm Ф5
Cable length m 2
Material   Aluminum Alloy


















































Application

Square Hole Counting Scales Single Point Parallel Beam Load Cells 100kg 200kg 300kg 400kg 2


Production Process

Square Hole Counting Scales Single Point Parallel Beam Load Cells 100kg 200kg 300kg 400kg 3


Company Profile

Xian Ruijia Measurement Instrument Co., Ltd was founded in 2005, Square Hole Counting Scales Single Point Parallel Beam Load Cells 100kg 200kg 300kg 400kg 4mainly engaged in the force sensor and related electronic products design, production and sales. With 100 employees, our company's head officce is located at No. 81, Jinye 1st Roade, Hi-tech District, Xi'an Shaanxi Province. Our branch is located in Hanzhong, Han District.

We have more than 20 years of scientific research and production experience in aluminum and steel high-precision load cells, ranging from 1kg to 50t,and pressure sensors, loader oil pressure sensors, ranging from 1Mpa to 200Mpa. In addition, our independent R&D of oil well drilling, fracturing, cementing pressure sensors also won the State Ministry of Science and Technology Innovation Fund support. The products have reached the technical standards of similar products in Europe and America.
