| Place of Origin: | Shannxi, China |
| Brand Name: | Ruijia |
| Model Number: | RJ-6530 |

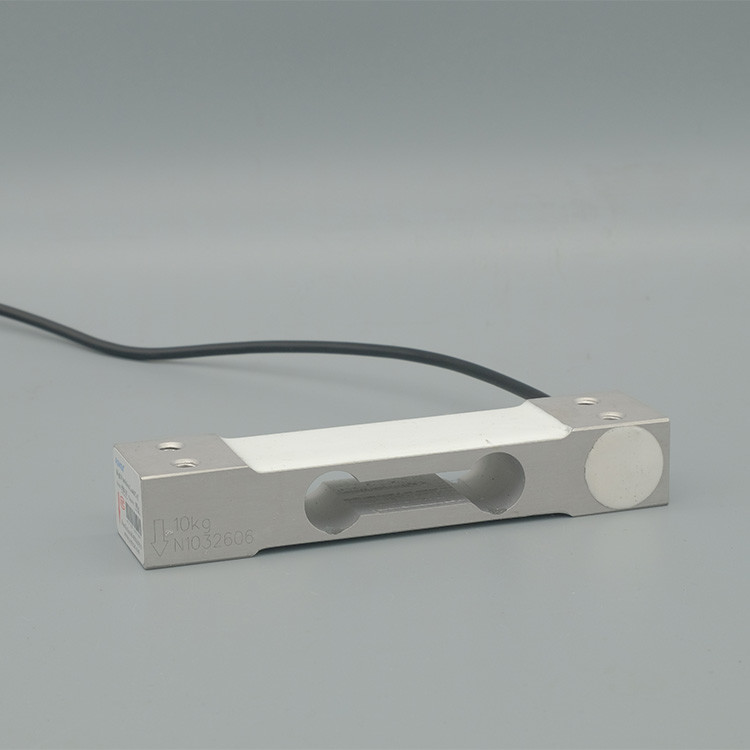

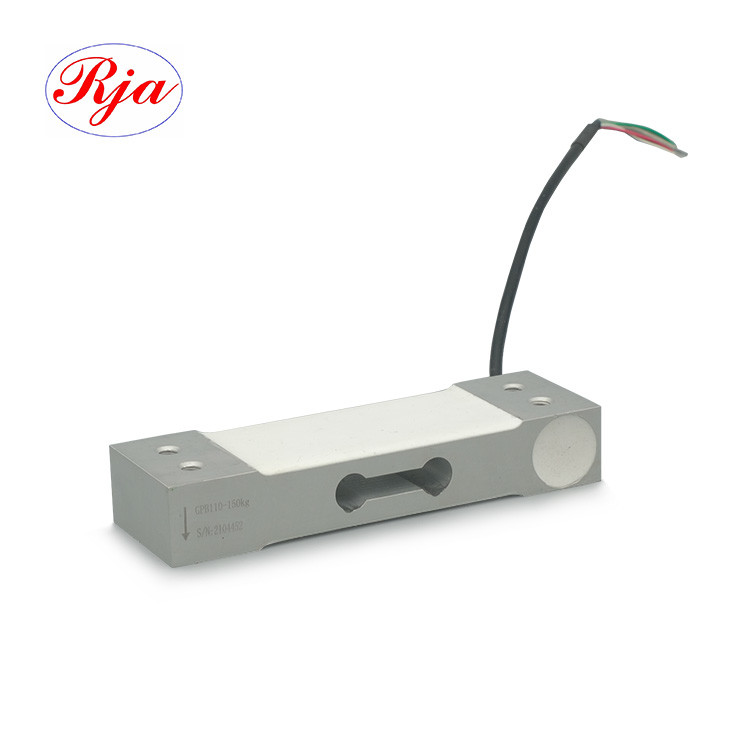

Single point parallel beam structure, aluminum alloy load cell
This load cell is easy to operate due to the single angle of force. The force is applied vertically to the single point load cell axis. Suitable for electronic scales, counting scales, electronic balances and industrial weighing systems.
The single point load cell should be mounted in a horizontal plane. There is an arrow symbol on the load cell indicating the permissible load direction.
|
Capacity |
Kg | 3/5/8/10/15/20/30/45/50/100/150 |
| Sensitivity | mV/V | 2.0±0.2 |
| Accuracy |
≤±0.02 |
|
| Creep(15min) | %FS | ≤±0.02 |
| Input Resistance | Ω | 406±20 |
| Output Resistance | Ω | 350±5 |
| Insulation Resistance | M Ω | ≥5000(100VDC) |
| Zero Balance | %FS | ≤±1 |
| Temperature Effects on Span | %FS/10℃ | ≤0.02 |
| Temperature Effect on Zero | %FS/10℃ | ≤0.02 |
| Rated Temperature Range | ℃ | -10～+60 |
| Operating Temperature Range | ℃ | -20～+80 |
| Proposed Excitation Voltage | V | 6～12 |
| Allowed Excitation Voltage | V | 18 |
| Safe Overload | %FS | 120 |
| Ultimate Overload | %FS | 150 |
| Protection | IP65 | |
| Cable specification | mm | Ф4 |
| Cable length | m | 0.4 |
| Material | Aluminum Alloy |
