| Place of Origin: | Shannxi, China |
|---|---|
| Brand Name: | Ruijia |
| Model Number: | RJ-6502 |
| Minimum Order Quantity: | 1pc |
| Price: | USD 10/piece |
| Packaging Details: | Standard export packaging |
| Delivery Time: | Within 2-4 Weeks |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10000 Piece/Pieces per Month |
| Usage: | Weighting | Capacity: | 7.5/15/30/75/150/300 Kg |
|---|---|---|---|
| Sensitivity: | 1.0±0.2 %FS / 1.5±0.2 %FS | Creep（5min): | ≤±0.02 %FS |
| Zero Balance: | ±2 %FS | Non-linearity: | 0.05 %FS |
| Repeatability: | 0.02 %FS | Temperature Effects On Span: | 0.05 %FS/10℃ |
| Temperature Effect On Zero: | 0.05 %FS/10℃ | Cable Specification: | Φ3.8UL & Φ 1Electronic Wiring |
| Cable Length: | 0.6 M | Protection: | IP65 |
| High Light: | 150Kg Strain Gauge Load Cell Platform,Medical Baby Scale Load Cell 30Kg,Strain Gauge Flat Beam Weight Sensor |
||

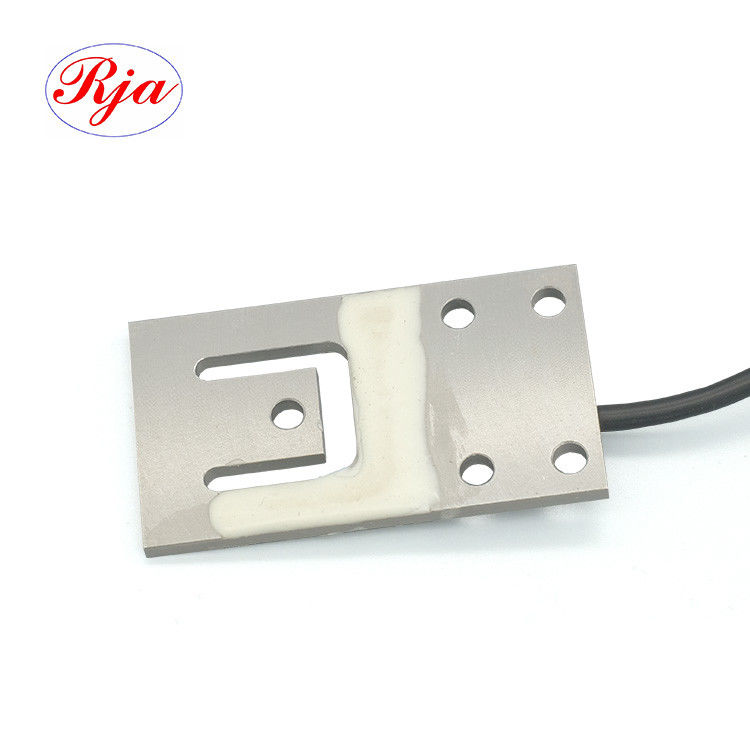

The RJ-6502 is a compact flat beam sensor with an extremely low profile. Its unique structural design allows it to be used in extremely low-profile scale configurations. Typically, our planar beam load cells would be used in sets of three or four per scale in applications such medical scales or any weighing environment where space is a limiting factor. This configuration facilitates a larger actual table size.
| Capacity(kg) | ΦA(mm) | T(mm) | W(mm) |
| 7.5 | 5.1 | 1.8 | 39 |
| 15 | 5.1 | 2.5 | 39 |
| 30 | 5.1 | 3.5 | 39 |
| 75 | 6.1 | 4.5 | 45 |
| 150 | 6.1 | 5.5 | 45 |
| 300 | 6.1 | 7.75 | 45 |
| Capacity | Kg | 7.5 | 15 | 30 | 75 | 150 | 300 |
| Sensitivity | mV/V |
1.0±0.2 |
1.5±0.2 | ||||
| Sensitivity | %FS | 0.05 | |||||
| Creep(5min) | %FS |
0.02 |
|||||
| Linearity Error | %FS | 0.05 | |||||
| Hysteresis Error | %FS | 0.02 | |||||
| Repeatability Error | %FS | 0.02 | |||||
| Input Resistance | Ω | 1090±30 | |||||
| Output Resistance | Ω | 1000±10 | |||||
| Insulation Resistance | M Ω | ≥5000(100VDC) | |||||
| Zero Balance | %FS | ±2 | |||||
| Temperature Effects on Span | %FS/10℃ | 0.05 | |||||
| Temperature Effect on Zero | %FS/10℃ | 0.05 | |||||
| Rated Temperature Range | ℃ | -10～+40 | |||||
| Operating Temperature Range | ℃ | -20～+60 | |||||
| Proposed Excitation Voltage | V | 6～12 | |||||
| Allowed Excitation Voltage | V | 3～15 | |||||
| Safe Overload | %FS | 120 | |||||
| Ultimate Overload | %FS | 150 | |||||
| Protection | IP65 | ||||||
| Cable specification | mm | Φ3.8UL & Φ1electronic wiring | |||||
| Cable length | m | 0.6 | |||||
| Material | Aluminum Alloy | ||||||
Widely used for low profile infant and adult medical scales, platform scales, personal scales, airport baggage scales, postal scales , medical equipment, ect.
Xian Ruijia Measurement Instrument Co., Ltd was founded in 2005, mainly engaged in the force sensor and related electronic products design, production and sales. With 100 employees, our company's head officce is located at No. 81, Jinye 1st Roade, Hi-tech District, Xi'an Shaanxi Province. Our branch is located in Hanzhong, Han District.
We have more than 20 years of scientific research and production experience in aluminum and steel high-precision load cells, ranging from 1kg to 50t,and pressure sensors, loader oil pressure sensors, ranging from 1Mpa to 200Mpa. In addition, our independent R&D of oil well drilling, fracturing, cementing pressure sensors also won the State Ministry of Science and Technology Innovation Fund support. The products have reached the technical standards of similar products in Europe and America.
