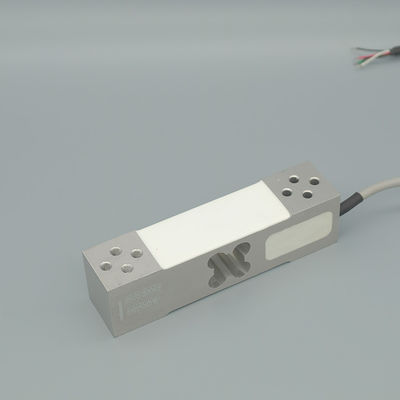

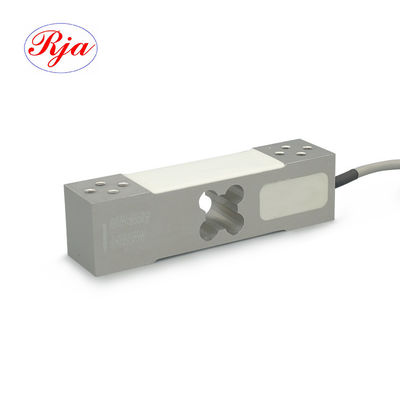

Aluminum Alloy Weighing Sensor Customized Load Cell Platform Scales 50kg 100kg 200kg 300kg

Basic Information
Place of Origin: China
Brand Name: ruijia
Model Number: RJ-6540
Minimum Order Quantity: 1pc
Price: USD15/pc
Packaging Details: Standard export packaging
Delivery Time: 2-4 weeks
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 Piece/Pieces per Month
Detail Information
Capacity: 50/100/150/200/250/350/500 Kg Sensitivity: 2.0±0.2 MV/V
Accuracy: ±0.02 Creep: ≤±0.02%FS(15min)
Input Resistance: 406±20 Ω Output Resistance: 350±5 Ω
Operating Temperature: -20~+80℃ Cable: φ5, 2m
Ultimate Overload: 150%FS Protection Class: IP65
High Light:

Aluminum Alloy Weighing Sensor

,

Customized Platform Weighing Sensor

,

100kg Platform Weighing Scale Load Cell


Product Description

Aluminum Alloy Weighing Sensor Customized Load Cell Platform Scales 50kg 100kg 200kg 300kg 0



How to choose a load ceel?

1. Selection requirements of load cells
The selection of load cells should be based on the application, starting from the number of sensor support points, range, accuracy level, environmental adaptability and other aspects of the selection.
2. Selection of load cell range
According to experience, the load cell should generally work within 30% to 70% of its range, but for some scales with large impact during use, such as dynamic rail scales, dynamic vehicle scales, steel scales, etc., when selecting load cells, the range should generally be expanded so that the load cell works within 20% to 40% of its range, so that the weighing reserve of the load cell is increased to ensure the use of the load cell Safety and life, to avoid overloading.
3. The choice of load cell accuracy level
(1) to meet the requirements of the instrument input.
(2) to meet the requirements of the accuracy of the whole electronic scale.



Technical parameters:



Capacity Kg 50/100/150/200/250/350/500
Sensitivity mV/V 2.0±0.2
Accuracy

±0.02

Creep(15min) %FS ±0.02
Input Resistance Ω 406±20
Output Resistance Ω 350±5
Insulation Resistance M Ω ≥5000(100VDC)
Zero Balance %FS ±1
Temperature Effects on Span %FS/10℃ ±0.02
Temperature Effect on Zero %FS/10℃ ±0.02
Rated Temperature Range -10~+60
Operating Temperature Range -20~+80
Proposed Excitation Voltage V 5~12
Allowed Excitation Voltage V 18
Safe Overload %FS 120
Ultimate Overload %FS 150
Protection   IP65
Cable specification mm Ф5
Cable length m 2
Material   Aluminum Alloy





Dimension

 Aluminum Alloy Weighing Sensor Customized Load Cell Platform Scales 50kg 100kg 200kg 300kg 1Aluminum Alloy Weighing Sensor Customized Load Cell Platform Scales 50kg 100kg 200kg 300kg 2





Appliaction

Aluminum Alloy Weighing Sensor Customized Load Cell Platform Scales 50kg 100kg 200kg 300kg 3



Production





Aluminum Alloy Weighing Sensor Customized Load Cell Platform Scales 50kg 100kg 200kg 300kg 4



Company Profile

Aluminum Alloy Weighing Sensor Customized Load Cell Platform Scales 50kg 100kg 200kg 300kg 5Xi'an Ruijia Measurement Instrument Co.,Ltd is established in 2005, mainly engaged in the design, production, sales and technical services of force sensors and related electronic products. Our headquarters is located in Xi'an High-tech Zone, Jinye First Road, No. 81, and its branch is located in Hantai District, Hanzhong City, Shaanxi Province.
We mainly undertake high-precision load cells for aluminum and steel parts with ranges from 1kg to 50t, and pressure sensors with range from 1Mpa to 200Mpa. We have independently developed a series of electronic balance load cells, which can meet the requirements of 2kg, 3kg, 5kg. The products have been well received by many customers at home and abroad, and have been awarded the honorary title of Xi'an High-tech Enterprise. The self-developed oil well drilling, fracturing and cementing pressure sensors not only have independent and independent intellectual property rights, but also have received strong support from National Fund. The products have reached similar technical standards in Europe and the United. Our company also develops OEM products according to the special requirements of customers, and it is our aim to meet all the requirements of customers.
Through years of development, our company has its own complete set of system in technology and management. Our products are of high quality, many varieties and specifications, and strong matching. Most of our products are exported to overseas markets and have long gone to the praise and trust of our customers.
