Split Type Electronic Water Level Pressure Sensor With ISO9001 Certificate

Basic Information
Place of Origin: China
Brand Name: ruijia
Certification: ISO9001
Model Number: RJ700-1000
Minimum Order Quantity: 1
Price: USD40-110
Packaging Details: standard export packing , including instructions and certificate
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 Set/Sets per Month
Detail Information
Usage: Level Sensor Theory: Current Sensor
Pressure Type: Gauge Pressure Sealed Pressure Output Signal: 4-20ma
Supply Voltage: 9-30VDC Accuracy: ±1 %FS (range: 0~1mH2O,0~2mH2O) ±0.5 %FS ±1 %FS (0~3,5,10,20
Medium Temperature: -10~+85 Degree IP Grade: IP68
Medium Compatibility: Various Medium Can Be Compatible With 304L Stainless Steel Testing Medium: Water
High Light:

ultrasonic level sensor

,

liquid level sensor


Product Description

Split Type Electronic Water Level Sensor submersible liquid level sensor tank level sensor



Product Description

Description

GLT560 water level sensor is a high reliability, high stability, high accuracy and small volume level transmitter with split structure , It is widely used in measuring the liquid height of small inside diameter pump as well as level height of liquid reservoir, such as water, oil and mild corrosive liquid.This product adopts 1Cr18Ni9Ti stainless structure, and international famous brand oil-filled core the special V I converter can easily calibrate zero and full scale output as well as make external programme adjustment. We offer special ventilate cable that resistance to abrasion, oil, acid & alkaline and strength according to on-site environment. This product has got intrinsic safety certification, explosion proof certification and CE certification.

The lead of two-wire circumfluent is no-polarity



Feature



pressure range: 0~1mH2O...200mH2O
accuracy: ±0.1%FS, ±0.25%FS, ±0.5%FS
LCD display
no-polarity two wire current output
Explosion proof certificaiton
CE certification





Applications



hydraulic monito ring

constant water supply

frequency water supply
level of liquid reservoir

water-save irrigation

circulation fluid consumption
level of inside small diameter pump



Product Show

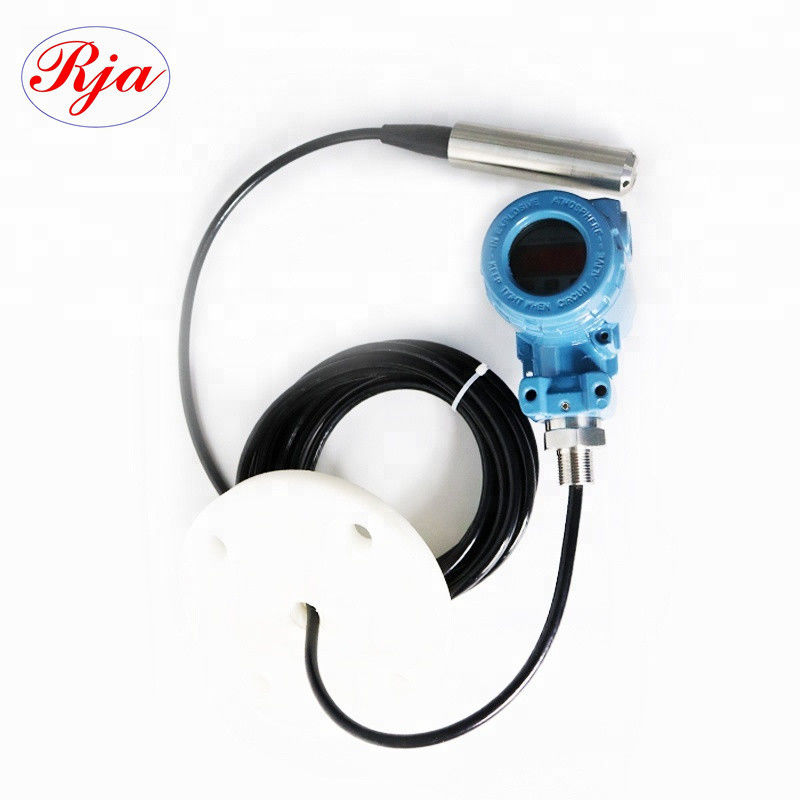

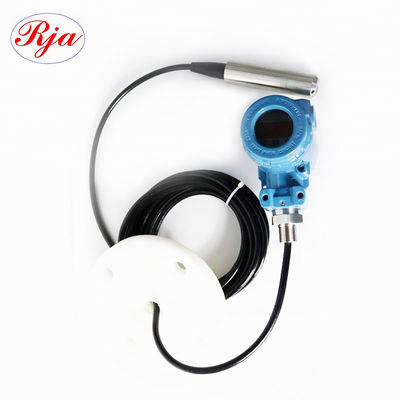

Split Type Electronic Water Level Pressure Sensor With ISO9001 Certificate 0

Technical data



Name Data
Measurement range 1~200mH2O
Overload pressure 150%FS
Failure pressure 300%FS
Accuracy ±0.1%F.S, ±0.25%F.S, ±0.5%F.S
Stability ≤0.3%FS/year
Operation temperature -40°C~85°C
compensated temperature range -10°C~70°C
storage temperature range -40~+85 °C
material of pressure membrane 316LSS
material of housing 1Cr18Ni9Ti stainless steel
Electrics feature Two-wire type Three-wire type
Signal output 4~20mA 0/1~5V 0~10V
Power supply 10~30Vdc 6~24Vdc 12~30Vdc/ac
Load resistance R≤(U-10)/0.02 (for 4/20mA) R>100kΩ(for votage output)
Insulate ≥100MΩ@100Vdc
electrical interface waterproof outlet
display 3-1/2 LCD
response time(10%~90%) ≤10ms
shock/impact 10gRMS,(20~2000)Hz / 100g,11ms
protection IP68
Electromagnetic compatibility

Electromagnetic radiation: EN50081-1/-2;

Electromagnetic sensitivity: EN50082-2;


Dimension

Split Type Electronic Water Level Pressure Sensor With ISO9001 Certificate 1





Ordering guide

Split Type Electronic Water Level Pressure Sensor With ISO9001 Certificate 2



Packaging & Shipping





  • Standard export package: each unit has individual box and all boxes are packed in standard packages
  • As the clients requirement

Our Services
  • Service standards: we are committed to providing a high quality,and responsive services to all clients
  • The fastest reply: detailed informations, specific model and price of products will be provided quickly after receiving your inquiry.
  • Quality assurance: good quality is assured by advanced manufacturing technology. And all products will be checked by our quality-control manager.
  • Excellent package: each unit has individual box and all boxes are packed in standard packages.
  • OEM available
