Digital Display Water Oil Gas Pressure Sensor RS485 Pressure Transmitter 4-20mA

Basic Information
Place of Origin: china
Brand Name: ruijia
Model Number: CAP-2088GW
Minimum Order Quantity: 1
Price: USD270
Packaging Details: Safe and environmentally friendly carton packing for Air Pressure Sensor
Delivery Time: 7 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1000 Piece/Pieces per Month
Detail Information
Pressure Range: -0.1~0-0.02~100MPa Medium: Water, Gas, Oil Purity Medium
Power Supply: 12~36VDC Output: 4~20mA,0~5VDC,1~5VDC,0~10VDC Optional
Accuracy: 0.1,0.25,0.5% F.S Optional Pressure Type: Gauge (G), Absolute (A), Sealed Gauge (S)
Pressure Connector: M20X1.5,G1/2,G1/4,NPT1/2 Or Customized Ingress Protection: IP65
Overload Capacity: 150%F.S
High Light:

oil pressure sensor

,

fuel pressure sensor


Product Description

Digital Display water oil Gas pressure sensor RS485 Pressure Transmitter 4~20mA



Description of UIB6
UIB6 digital pressure transmitter is an intelligent digital transmitter with high measuring accuracy and good
long term stability. Its performance is reliable.
This product is made of special wide-temperature LCD display and high stable sensor, and using precise
digitization temperature compensation and non-linearity revision technology to guarantee its measuring
accuracy & stability. RS485 main line facilitates network pressure measurement system easily.
UIB6 digital pressure transmitter is suitable for pressure measurement and control in water and electricity,
chemical industry, urban water supply, scientific research etc.

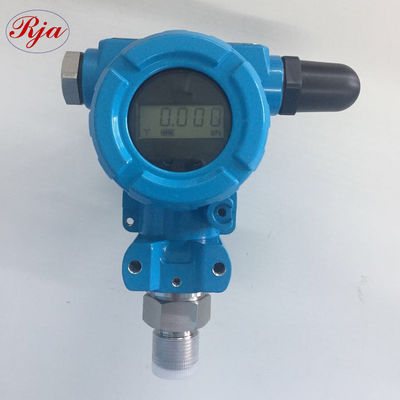

Digital Display Water Oil Gas Pressure Sensor RS485 Pressure Transmitter 4-20mA 0



Features of UIB6

>Have 4~20mA output and RS485 communication simultaneously;
>10 selectable engineering units : kPa, Mpa, ℃,Pa,bar, mbar, mmHg, kgf/cm2, mH2O, psi, m
>MODBUS RTU protocol(RS485 interface)
>Digital temperature compensation, digital communication technology
>Against thunder stroke technology, zero self-steady technology





Specifications of UIB6

pressure medium gas or liquid compatible to wetted stainless steel
pressure ranges -1...0~0.1bar...1000bar
pressure type gauge(G), absolute(A), sealed gauge(S)
overload pressure 150%FS
output signal 4~20mA
communication MODBUS protocol (RS485 interface)
accuracy 0.1%FS,0.25%FS(standard), 0.5%FS
load resistance RL=(U-12V)/0.02A(4~20mA current output) U—loop voltage(V)
long-term stability <0.1%FS/year
supply voltage 12~36 VDC
compensated temperature range -10~+70℃
operating temperature range -40~+85℃
indicator dynamic 5 digit LCD(range: -32767~32767)
temperature coefficient of zero 0.2%FS/10℃
temperature coefficient of span 0.2%FS/10℃
process connection G1/2 (male)or others
electrical connection M20×1.5(female)
material of wetted part 1Cr18Ni9Ti
material of pressure membrane 316L
material of housing cast aluminium
explosive proof ExiaIIBT4,ExdIIBT4





Application of UIB6

UIB6 digital pressure transmitter has already widely been used for fluid pressure measurement and control in scientific research domain, and petroleum, chemical industry, medicine, water conservation etc.



Packing and shipping of UIB6

>>Standard export package: each unit has individual box and all boxes are packed in standard packages;

>>As the clients requirement;



Digital Display Water Oil Gas Pressure Sensor RS485 Pressure Transmitter 4-20mA 1



Digital Display Water Oil Gas Pressure Sensor RS485 Pressure Transmitter 4-20mA 2

Our service

>>Ruijia products are 100% calibrated before the packaging and delivered with <<Calibration Certification>>.

>>The products are guaranteed free of production defects and the quality is guaranteed for 12 months from the shipment date.



FAQ



1. Q: Do you have a catalogue? Can you send me the catalogue to have a check of all your products?

A: Yes , We have product product list.Please contact us online or send an Email to sending the catalogue.



2. Q: I need your price list of all your products, do you have a price list ?

A: We do not have a price list of all of our products. Because we have so many items,and it’s impossible to mark all of their price on a list.And the price are always changing because of the producing cost.If you want to check any price of our products, please feel free to contact us.We will send offer to you soon!



3. Q: I can find the product on your catalogue, can you make this product for me?

A: Our catalogue shows most of our products,but not all.So just let us know what product do you need,and how many do you want.If we do not have it,we can also design and make a new mould to produce it.For your reference,making a ordinary mould will take about 30 days.



4. Q : Can you make customized products and customized packing?

A: Yes.We made a lot of customized products for our customer before.And we made many moulds for our customers alread.About customized packing,we can put your Logo or other info on the packing.There is no problem.Just have to point out that ,it will cause some additional cost.



5. Q: Can you provide samples ? Are the samples free ?

A:We offer paid sample,around 4-5days arrived your hand by DHL, UPS or EMS



6. Q: What kind of payment do you accept ? Can I pay RMB ?

A:Payment <=50000USD,100% in advance. Payment>=50000USD,50%T/T in advance,balance before shipment.Please be sure that we can receive the same amount of the Invoice. And you can pay money In RMB. No problem.



7. Q : How to ship my order ? Is it safe?

A: For small package, we will send it by Express, such as DHL,FedEx,,UPS,TNT,EMS.That’s a Door to Door service.



8. Q: Do you have a guarantee of your product quality?

A: We have a guarantee of one year.



9. Q: Can I become an Agent / Dealer of FOHMQ products?

A: Welcome! But please let me know your Country/Area first,We will have a check and then talk about this.If you want any other kind of cooperation,do not hesitate to contact us.
