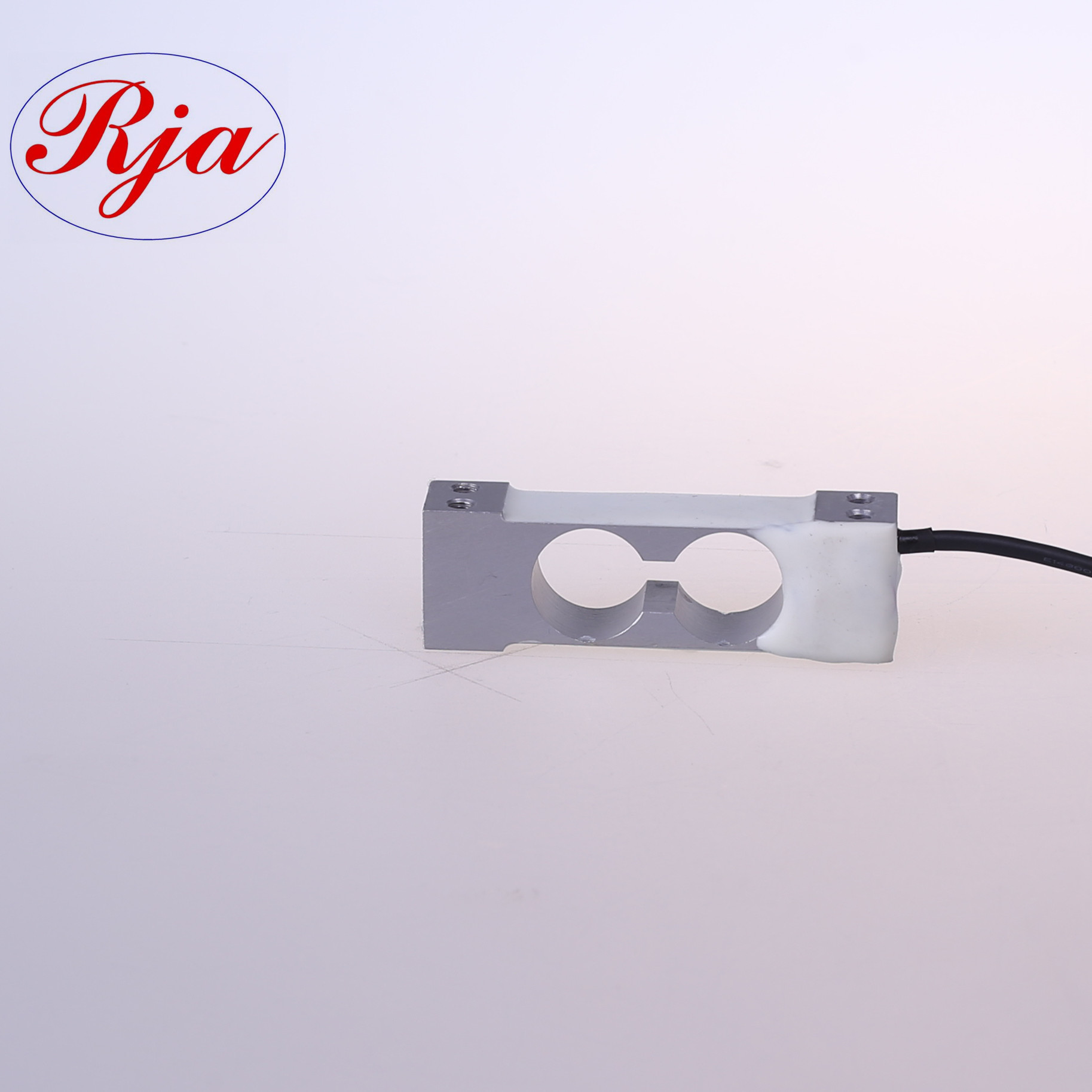

Aluminum Alloy Single Point Load Cell , Strain Gauge Sensor For Kitchen Scale

Basic Information
Place of Origin: china
Brand Name: ruijia
Model Number: RJ-6521
Minimum Order Quantity: 1pc
Price: USD5-10
Packaging Details: Standard export packaging
Delivery Time: Within 2-4 Weeks
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 Piece/Pieces per Month
Detail Information
Theory: Resistance Sensor Output: Analog Sensor
Capacity: 50-200kg Comprehensive Error: ±0.03
Safe Overload (%F.S): 120 Ultimate Overload (%F.S): 150
Excitation Voltage (V): 9-12(DC) Accuracy: C2
High Light:

single point platform load cell

,

high accuracy load cell


Product Description



0.5kg 3kg single point Load Cell strain gauge sensor for kitchen scale



Features:



The product is made of alloy aluminum. It is hermetically sealed with glue to IP65, surface anodized and anti - corrosion, integral structure and easy installation. The product is suit for electronic top scale, floor scale and other weighing equipment.



Dimension:

Aluminum Alloy Single Point Load Cell , Strain Gauge Sensor For Kitchen Scale 0

Specification:



Specification

Range (KG): 0.3, 0.5, 1.5, 3

Temp. effect on zero (%F.S/10℃): ±0.05

Accuracy: B

Nonlinearity error (%F.S):±0.02

Comprehensive error (%F.S): ±0.03

Repeatability error (%F.S):±0.015

Rated output (mV/ V): 1.0±0.1

Hysteresis error (%F.S):±0.015

Creep (%F.S/30min): ±0.03

Compensated temp. range (℃): -10~+40

Zero balance (%F.S): ±0.05

Operation temp. range (℃): -20~+60

Input resistance (Ω):395±10

Excitation voltage (V): 5-12(DC)

Output resistance (Ω): 350±3

Safe overload (%F.S): 120

Insulation resistance (MΩ): ≥2000 (50VDC)

Ultimate overload (%F.S): 150

Temp. effect on span (%F.S/10℃): ±0.03

Ingress protection: IP65





Process flowchart

Aluminum Alloy Single Point Load Cell , Strain Gauge Sensor For Kitchen Scale 1



Packing



Standard export package: each unit has individual box and all boxes are packed in standard packages.



Shipping



Products are shipped from china. We will sent out within 15 working days after the payment. We usually send the parcel by DHL, EMS and TNT etc. The tracking number will be sent to you after delivery. It usually takes 3--5 working days to reach your side which depend on the country delivery to.



FAQ



1. What detailed information do I need to provide if I want to place an order?

We need to know the following information: Capacity, Usage and other related parameters you need.



2. Do you have any discount?

Yes, if you buy large QTY, please send us a email, we will give you a big discount.



3. How do you ensure good product quality?

We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients.
