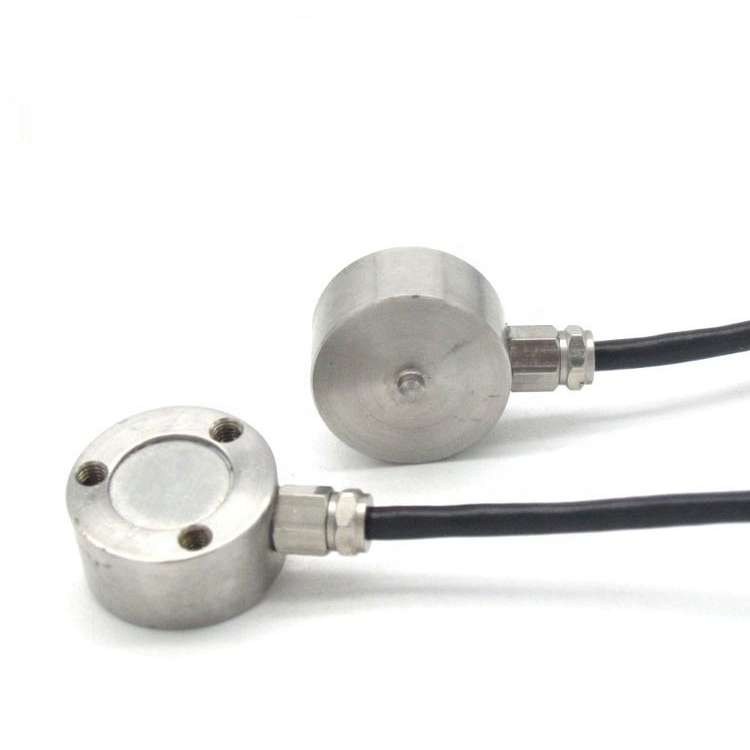

Stainless Steel Compression Load Cell 5-500kg Analog Output

Product Details:

Place of Origin:	CHINA
Brand Name:	RJ
Certification:	CE/ROSE
Model Number:	RJ

Detail Information

Place of Origin:

CHINA

Brand Name:

Certification:

CE/ROSE

Model Number:

Output:

Analog SENSOR

Capacity:

5-500kg

Sensitity:

1.5±0.2 % Mv/v

Excitation Voltage:

5 ~ 12 VDC

Safe Overload:

150% R.C.

Material:

Stainless Steel

Highlight:

High Light

Highlight:

Stainless Steel Load Cell 500kg

Analog Output Load Cell Sensor

Compression Load Cell 5kg

Trading Information

Minimum Order Quantity:

Price:

$40-50

Packaging Details:

Carton or wooden crate

Delivery Time:

5-8 work days

Payment Terms:

L/C,D/A,D/P,T/T,Western Union

Supply Ability:

2000PC/month

Product Description

Compression type sub miniature button load cell 300kg 500kg

Stainless Steel Compression Load Cell 5-500kg Analog Output 0

Capacity	5kg-500kg
Sensitivity	0.5~1.5 mv/V
Precision	0.5 %F·S
Creep	±0.2 %F·S/30min
Non-linearity	±0.5 %F·S
Hysteresis error	±0.5 %F·S
Repeatability	±0.5 %F·S
Zero temperature coefficient	±0.2 %F·S/10℃
Temperature Effect On Output	±0.2 %F·S/10℃
Input resistance	500 ± 20 Ω
Output resistance	500 ± 20 Ω
Insulation resistance	≥ 2000 MΩ
Excitation voltage	5 ~ 15 VDC
Working temp. range	-20 ~ 70℃
Safety overload	150 %F·S
Sealing grade	IP67
Material	Stainless steel
Wiring	Red: EXC+, Green: EXC- , Yellow: SIG+, White: SIG-

Stainless Steel Compression Load Cell 5-500kg Analog Output 1

Packing & Transport

Stainless Steel Compression Load Cell 5-500kg Analog Output 2

FAQ

Q: How can I get the quotation?
Please send your inquiry to us.
Click 'Contact Supplier' icon which is on the right-side or write down your requirement at the bottom of this page.

Q: What detailed information do I need to provide if I want to place an order?

We need to know the following information:
Capacity, Usage and other related parameters you need.

Q: Do you have any discount?
Yes, we take bulk order, if you buy large QTY, please send us inquiry, we can discuss the price.

Q: Can I get samples?
Yes, if you have the follower orders, we could offer the samples or free samples for you.

Q: How about the quality of the products?
We have the certification of CE and RoHs , also we are the Alibaba's verified supplier, you don't have to worry about this.

Q: When will you arrange the production?
We will arrange the production immediately after receiving your payment.

Q: Could you provide me the shortest lead time?
We have materials in our stock, if you really need, let's discuss and we will try our best to satisfy you.
