Industrial Round S Load Cell , C2 / C3 S Beam Type Low Cost Load Cell

Basic Information
Place of Origin: china
Brand Name: ruijia
Model Number: RJ-9310
Minimum Order Quantity: 1pc
Price: USD20-40/pc
Packaging Details: Product packed in foam box with bubble bag.
Delivery Time: 2-4 weeks
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10000 Piece/Pieces per Month
Detail Information
Theory: Resistance Sensor Output: Analog Sensor
Capacity: 10-5000KG Comprehensive Error: ±0.03 & ±0.02
Safe Overload (%F.S): 150 Ultimate Overload: 300
Material: Alloy Steel Accuracy: C2 / C3
High Light:

s shaped load cell

,

s style load cell


Product Description

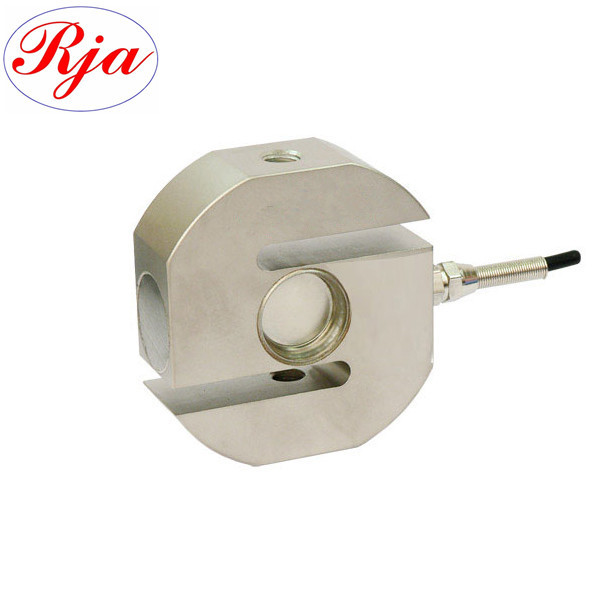

Industrial Round s type load cell tension S Beam Type weighing sensors

Strength of  Load Cell:

1. Made of alloy steel
2. With glue sealing and nickel plated surface,waterproof and anticorrosion, could work for various application
3. Suitable for crane scale, vibratory feeding equipment and other electronic weighing devices

Features:

It is suitable for measuring and controlling the value of equipment such as weighing scale, electromechanical combination scale, lifting hook scale, packing scale and material mechanics testing machine.High precision, two-way bearing, easy installation.

Specification:


Rated load(KG)

20~5000kg

Temp. effect on span

±0.02%FS/10℃

Comprehensive error

0.02%FS

Use temp. range

-20℃~+65℃

Rated output

2.0mV/V

Input resistance(Ω)

380±10

Creep (30 min.)

±0.02%F.S

Output resistance(Ω)

350±3

Zero balance

±1.00%F.S

Insulation resistance(MΩ)

>5000

Temp. effect on zero

±0.02%FS/10℃

Excitation voltage

10VDC

Safe overload

150%FS



Industrial Round S Load Cell , C2 / C3 S Beam Type Low Cost Load Cell 0
What is Application of Load cell?


GSL301 500kg S type Compression Tension Load Cell


What is Process Flowchart of Load cell?

Industrial Round S Load Cell , C2 / C3 S Beam Type Low Cost Load Cell 2




Packaging & Shipping



Industrial Round S Load Cell , C2 / C3 S Beam Type Low Cost Load Cell 3
GSL301



FAQ



1. What detailed information do I need to provide if I want to place an order?
We need to know the following information: Capacity, Usage and other related parameters you need.

2. Do you have any discount?
Yes, if you buy large QTY, please send us a email, we will give you a big discount.

3. How do you ensure good product quality?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients.
