150% Safe Overload Resistance Sensor With 350±5 Ω Output

Product Description:

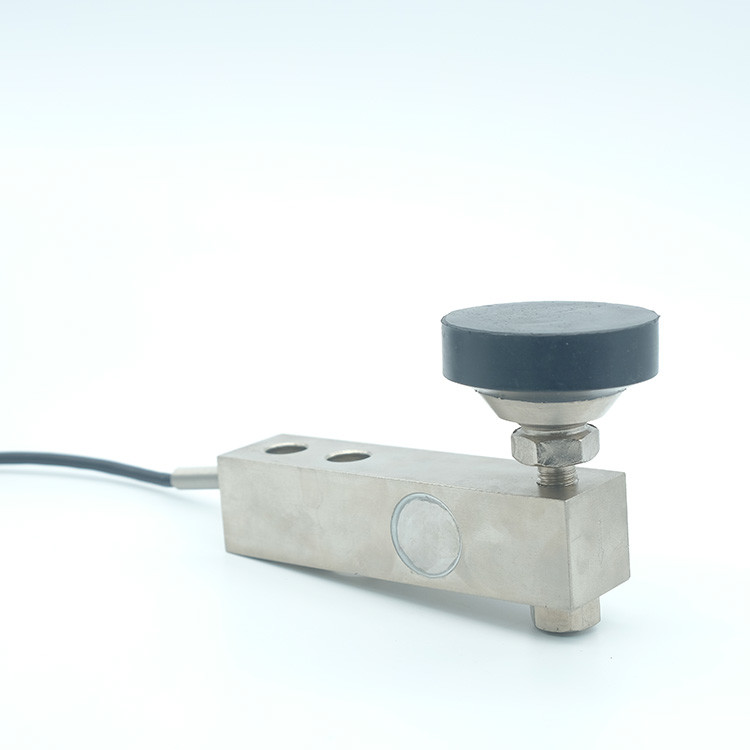

Shear Beam Load Cell is a resistance sensor designed for forklift scales, livestock scales, and other industrial weighing applications needing high accuracy and repeatability. It features a capacity range from 0.1 to 5 tons and an operating temperature range from -35℃ to +80℃. It is equipped with an output of 2.0±0.005 MV/V or 3.0±0.005 MV/V and a high input resistance of 375±10 Ω, allowing for highly accurate and reliable measurements. Moreover, it has a temperature effect on span of 0.02 %FS/10℃, ensuring long-term stability and reliability. This reliable shear beam load cell is ideal for a variety of industrial weighing applications, such as truck scales, hopper scales, and other heavy-duty weighing systems.



Features:

Alloy steel material, spring wire, nickel plated surface, anti-corrosion,Glue seal,can do laser welding;

M12 or M18 thread, sensitivity 2.0 or 3.0mV/V;

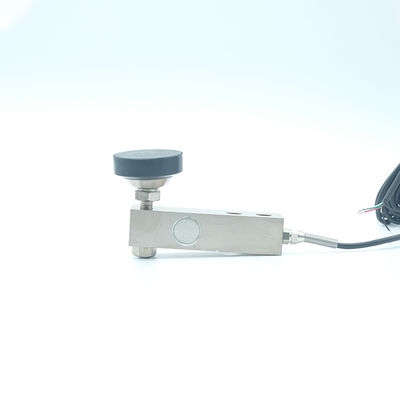

One end is fixed and the other end is loaded with rubber legs and gaskets;

Suitable for ground scale, electronic platform scale and other electronic weighing equipment.



Dimensions:



Parameters:



Capacity	t	0.1/0.2/0.25/0.5/1/2/5
Sensitivity	mV/V	2.0±0.005 3.0±0.005
Accuracy	%FS	≤±0.02
Creep(15min)	%FS	≤±0.02
Input Resistance	Ω	375±10
Output Resistance	Ω	350±5
Insulation Resistance	M Ω	≥5000(100VDC)
Zero Balance	%FS	≤±1
Temperature Effects on Span	%FS/10℃	≤0.02
Temperature Effect on Zero	%FS/10℃	≤0.02
Rated Temperature Range	℃	-10～+60
Operating Temperature Range	℃	-35～+80
Proposed Excitation Voltage	V	6～12
Allowed Excitation Voltage	V	18
Safe Overload	%FS	150
Ultimate Overload	%FS	300
Protection		IP65
Cable specification	mm	Ф5
Cable length	m	3
Material		Alloy Steel









































































Support and Services:

• Provide technical assistance regarding installation and calibration of Shear Beam Load Cells.
• Provide troubleshooting services to diagnose and identify any performance issues.
• Provide on-site assistance to inspect, repair, and replace Shear Beam Load Cells.
• Provide regular maintenance services to ensure optimal performance of Shear Beam Load Cells.
• Provide training and education services to familiarize users with the operation and maintenance of Shear Beam Load Cells.



FAQ:



Q1: What is Shear Beam Load Cell?
A1: Shear Beam Load Cell is a kind of sensing instrument, manufactured by Ruijia (Model Number: RJ9810), which is used to measure force or weight. It is made in China.
Q2: What is the benefit of using Shear Beam Load Cell?
A2: The Shear Beam Load Cell has a high accuracy, low deflection, and low profile, making it ideal for force measurement and weight applications.
Q3: What are the features of Shear Beam Load Cell?
A3: The Shear Beam Load Cell features an all-welded stainless steel construction, fully sealed construction, and hermetically sealed electronics. It also has a wide range of capacities from 0-500kg to 50t.
Q4: What types of Shear Beam Load Cells are available?
A4: Ruijia offers several types of Shear Beam Load Cells, including single point, double point, and integral beam.
Q5: What is the accuracy of Shear Beam Load Cell?
A5: The accuracy of Shear Beam Load Cell is typically 0.03-0.05%.
